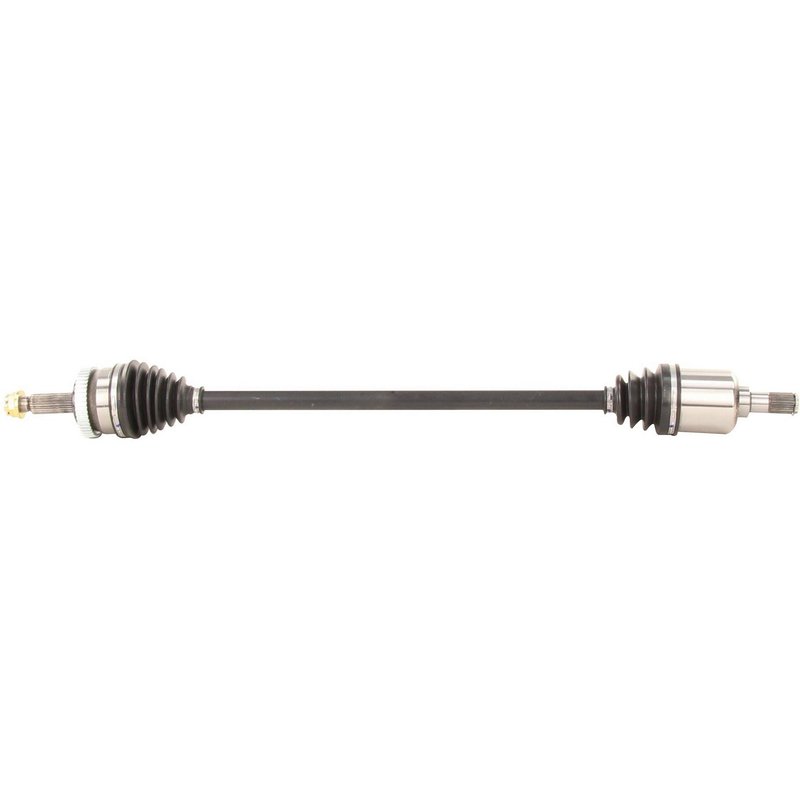

TrakMotive HY-8101 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8101 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.11 |
| Overall Compressed Length (mm) | 968 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
ABS tone ring included. Built with a toothed ring for accurate wheel speed signal pickup.
Neoprene boot. Flexible material helps protect the joint from dirt and moisture.
New axle shaft. A fresh replacement part with included axle nut for easier service.
Cross-references Cardone New 66-3490, TrakMotive HY-8101 and 80-9321 for the same application. See all 13.
CV Axle Shaft for Hyundai Sonata
TrakMotive HY-8101 is a new CV axle shaft for the front right position on select 2006-2008 Hyundai Sonata models. It is built for driveline service where a worn axle can cause vibration, clicking, or loss of smooth power transfer.
Key Features
- Direct-fit CV axle shaft for front right applications
- Fits 2006-2008 Hyundai Sonata, front right
- New construction with 27 inboard splines and 27 outboard splines
- Neoprene boot material for CV joint protection
- Includes ABS tone ring with 47-tooth toothed ring design
- Axle nut included with M22 x 1.5 thread, 30 mm hex size, and cotter pin locking type
- Overall compressed length: 968 mm (38.11 in)
Product Details
TrakMotive HY-8101 is part of the CV Axle Shaft line, focused on replacement driveline components for passenger vehicles. This axle uses a male inboard shaft connection, a spline-style outboard shaft connection, and a conventional outboard joint type to match the specified application. It is listed for the 2006, 2007, and 2008 Hyundai Sonata in the front right position, making it a targeted replacement for Hyundai Sonata front right CV axle shaft service. This part cross-references Cardone New 66-3490 for the same application.
Common Repair Symptoms
- Clicking or popping during turns
- Vibration during acceleration
- Grease leakage from a damaged CV boot
- Worn splines or joint wear at the axle shaft
- ABS signal issues related to a damaged tone ring
Installation Notes
- Verify vehicle year, make, model, and front right position before installation.
- Confirm axle nut thread size, hex size, and locking style match the vehicle specification.
- Inspect hub, seals, and mating components for wear before installing the new axle.
- Follow factory torque procedures during axle nut and suspension fastener installation.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. HY-8101 is a new replacement axle built for the specified Hyundai Sonata application.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Hyundai | Sonata | Automatic | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2007 | Hyundai | Sonata | Automatic | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2006 | Hyundai | Sonata | Automatic | 2.4L | L4 | Front Right | CV Axle Shaft |
