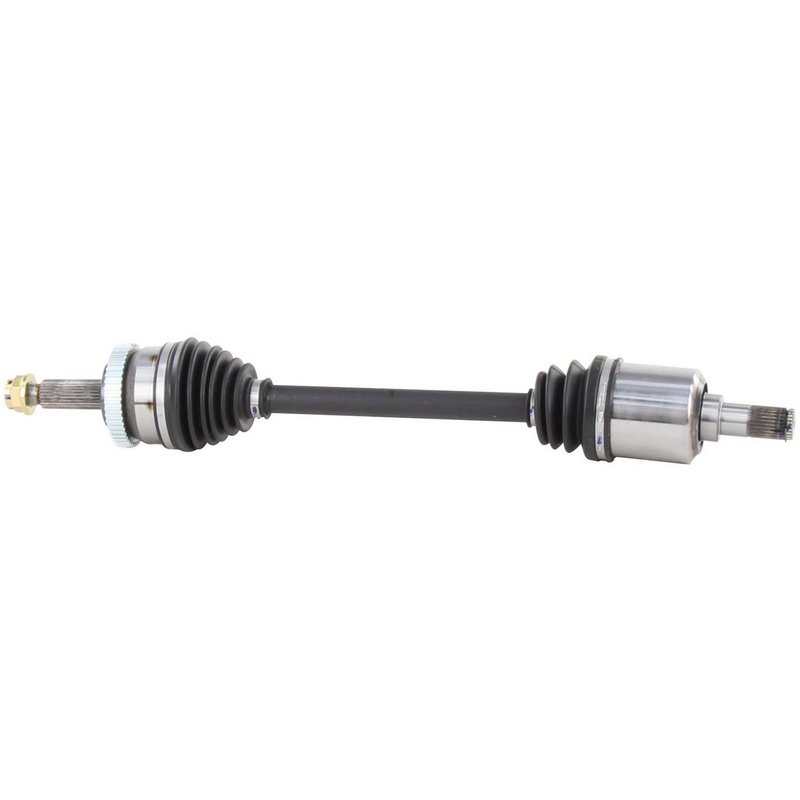

TrakMotive HY-8103 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8103 for Hyundai Sonata

The TrakMotive CV Axle Shaft HY-8103 is engineered specifically for Hyundai Sonata models, providing reliable driveline performance. Designed as a new replacement part, this CV axle shaft ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Hyundai Sonata vehicles
• Includes ABS tone ring with 47 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 26.81 inches (681 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to meet OEM specifications. This line emphasizes precise engineering, including features such as ABS tone rings and durable neoprene boots, to maintain vehicle safety and driveline integrity. The HY-8103 model exemplifies these standards with its comprehensive component set and fitment accuracy for Hyundai Sonata vehicles.

Technical Specifications and Features

This CV axle shaft features a 47-tooth ABS ring with a toothed design, which is included to support the vehicle's anti-lock braking system. The axle nut is a hex head type measuring 30 mm (1 1/6 inch) across flats, with a height of 21 mm (5/6 inch) and a length of 34.6 mm (1 1/3 inch). It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism to ensure safe installation. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. Both inboard and outboard joints have 27 splines, with the inboard joint featuring a male connection style and the outboard joint a conventional type. The overall compressed length of the shaft is 26.81 inches (681 mm), matching Hyundai Sonata specifications.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Sonata
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8103, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to ensure long-term protection. This part is designed for direct replacement on Hyundai Sonata models, facilitating a straightforward installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8103 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut and ABS tone ring for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in driveline applications.
