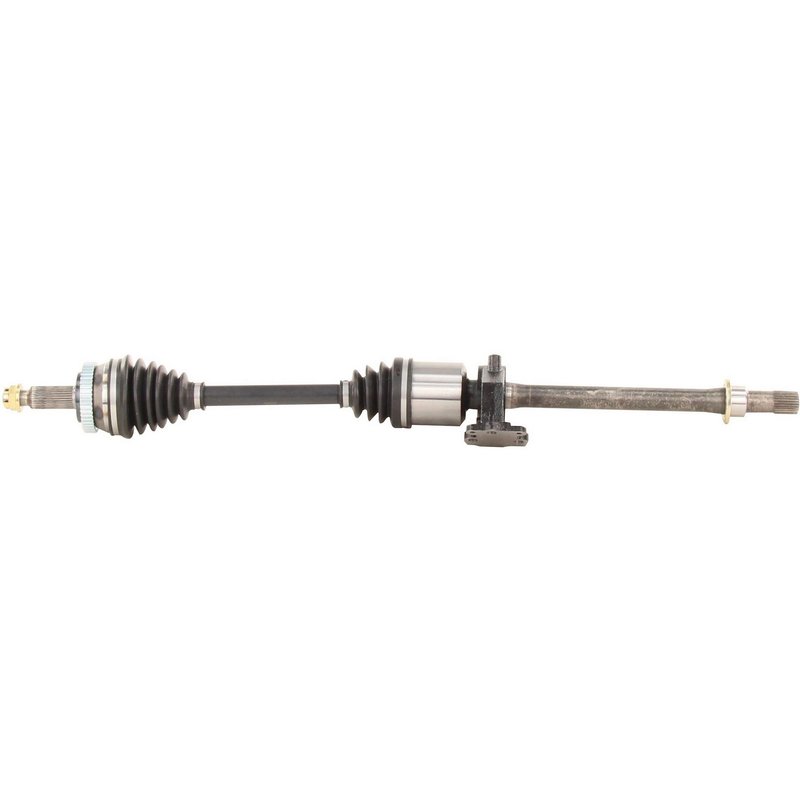

TrakMotive HY-8104 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8104 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.54 |
| Overall Compressed Length (mm) | 979 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 10 vehicles |
New assembly. Built as a fresh CV axle shaft for dependable replacement.
Neoprene boot. Flexible material helps protect the joint from wear and contamination.
ABS tone ring included. Toothed ring is included for applications that use ABS sensing.
Cross-references Cardone New 66-3495, Cardone Reman 60-3495 and Dixie Electric Ltd 3153N for the same application. See all 19.
TrakMotive CV Axle Shaft HY-8104
TrakMotive HY-8104 is a new CV axle shaft for the front right position on select Hyundai Azera and Hyundai Sonata applications. Built for direct driveline replacement, it includes the axle nut and ABS tone ring details needed for the listed fitments, including 2008-2009 Hyundai Sonata front right with ABS.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8104
- New axle shaft for front right driveline service
- Overall compressed length: 38.54 in. (979 mm)
- Inboard joint type: male; outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 47-tooth toothed ring
- Axle nut included; M22 x 1.5 thread, 30 mm hex size, cotter pin locking type
- ISO 9001:1007 and TS 16949:2009 certified company
Product Details
This TrakMotive CV axle shaft is engineered for front right replacement service on 2006-2010 Hyundai Azera and 2006-2010 Hyundai Sonata applications listed below. The HY-8104 uses a male inboard connection, conventional outboard connection, and neoprene boot construction to match the specified driveline configuration. It is a direct-fit replacement for Hyundai Sonata and Hyundai Azera front right axle service where the listed spline counts, compressed length, and ABS ring details are required.
This part cross-references Cardone New 66-3495 and Cardone Reman 60-3495 for the same application.
Vehicle Fitment
- Fits 2006-2010 Hyundai Azera, front right.
- Fits 2010 Hyundai Sonata, front right.
- Fits 2006-2007 Hyundai Sonata, front right.
- Fits 2008-2009 Hyundai Sonata, front right, w/ ABS.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration from a damaged axle shaft
- Torn or deteriorated axle boot causing grease loss
- ABS warning concerns related to the tone ring on listed applications
- Excessive driveline play or noise from a worn front right axle assembly
Installation Notes
Verify spline count, axle length, and axle nut thread size before installation. This axle includes a toothed ABS ring with 47 teeth and is listed for ABS and non-ABS applications as noted in the fitment data. Confirm the front right position and the exact model year before replacing the original shaft.
Quality Assurance
TrakMotive identifies this as a new CV axle shaft and states that the product line is backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2010 | Hyundai | Azera | — | Automatic | 3.8L | V6 | Front Right | CV Axle Shaft |
| 2010 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2009 | Hyundai | Azera | — | — | 3.8L | V6 | Front Right | CV Axle Shaft |
| 2009 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Right | w/ ABS; CV Axle Shaft |
| 2008 | Hyundai | Azera | — | — | 3.8L | V6 | Front Right | CV Axle Shaft |
| 2008 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Right | w/ ABS; CV Axle Shaft |
| 2007 | Hyundai | Azera | — | — | 3.8L | V6 | Front Right | CV Axle Shaft |
| 2007 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2006 | Hyundai | Azera | — | — | — | — | Front Right | CV Axle Shaft |
| 2006 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Right | CV Axle Shaft |
