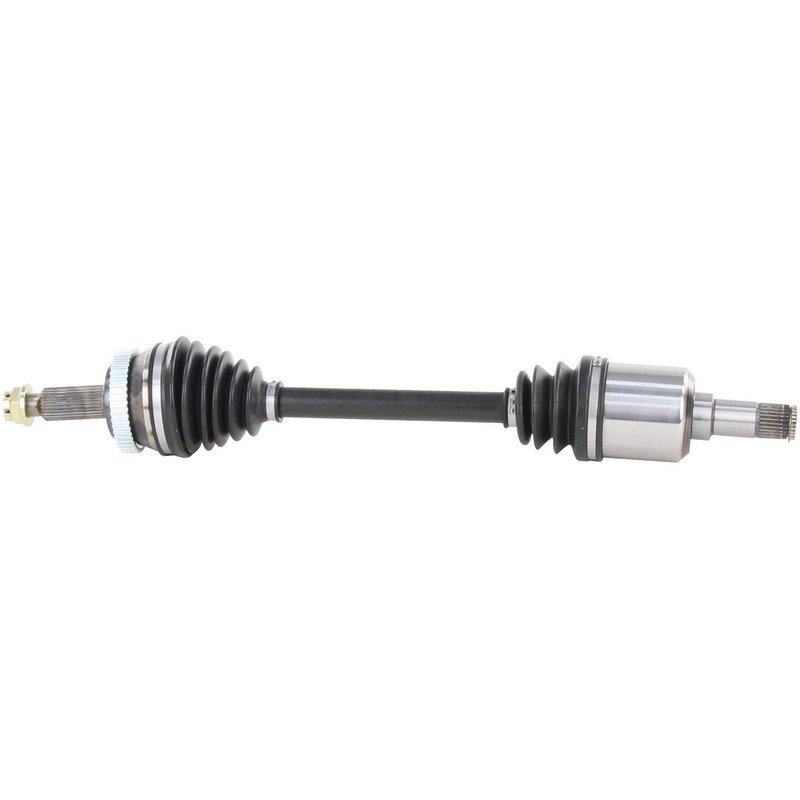

TrakMotive HY-8105 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8105 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 5/6 |
| Axle Nut Height (mm) | 21 |
| Axle Nut Hex Size (in) | 1 1/6 |
| Axle Nut Hex Size (mm) | 30 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/3 |
| Axle Nut Length (mm) | 34.6 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.83 |
| Overall Compressed Length (mm) | 656 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 10 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Toothed ring is built in for applications that use ABS sensing.
Axle nut included. Comes with a hex nut and cotter-pin locking style for easier service.
Cross-references Cardone New 66-3494, Cardone Reman 60-3494 and TrakMotive HY-8105 for the same application. See all 17.
CV Axle Shaft for Hyundai Front Left Applications
TrakMotive HY-8105 is a new CV axle shaft for front left service on select Hyundai Azera and Sonata models. It is built for 2006-2010 Hyundai Azera and 2006-2010 Hyundai Sonata applications, with fitment details that match the listed spline counts, ABS tone ring, and axle hardware specifications.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8105
- New axle shaft construction
- Front left position
- ABS tone ring included with 47-tooth toothed ring
- Neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type with spline connection
- Axle nut included with M22 x 1.5 thread size and cotter pin locking type
- Overall compressed length: 25.83 in. (656 mm)
Product Details
HY-8105 is a TrakMotive CV axle shaft engineered for front left driveline service on Hyundai Azera and Hyundai Sonata vehicles from 2006 through 2010. The axle uses a 28-spline inboard connection and a 30-spline outboard connection, along with a toothed ABS ring and included tone ring for applications that require wheel speed sensor signal support. The neoprene boot and new construction support replacement of worn or damaged original axle assemblies.
TrakMotive’s CV Axle Shaft line focuses on direct-fit driveline replacement parts, and HY-8105 follows the listed OE-style dimensions and connection points for the specified Hyundai applications. This part cross-references Cardone New 66-3494 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration caused by axle wear
- Grease leakage from a damaged axle boot
- ABS warning concerns related to a failed tone ring or sensor signal issue
- Excessive drivetrain play from a deteriorated front left axle shaft
Installation Notes and Tips
Confirm front left fitment by matching the vehicle year, model, spline counts, and axle length before installation. Verify axle nut thread size, hex size, and locking style against the original hardware, and inspect the hub, seals, and surrounding suspension components for wear before completing the repair. ABS axles fit non-ABS applications unless otherwise noted.
Quality Assurance
TrakMotive lists this axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The HY-8105 also carries a limited lifetime warranty.
Compatible Vehicles
- Fits 2006-2010 Hyundai Azera, front left.
- Fits 2006-2010 Hyundai Sonata, front left.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2010 | Hyundai | Azera | — | Automatic | 3.8L | V6 | Front Left | CV Axle Shaft |
| 2010 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2009 | Hyundai | Azera | — | — | 3.8L | V6 | Front Left | CV Axle Shaft |
| 2009 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2008 | Hyundai | Azera | — | — | 3.8L | V6 | Front Left | CV Axle Shaft |
| 2008 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2007 | Hyundai | Azera | — | — | 3.8L | V6 | Front Left | CV Axle Shaft |
| 2007 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2006 | Hyundai | Azera | — | — | — | — | Front Left | CV Axle Shaft |
| 2006 | Hyundai | Sonata | FWD | — | 3.3L | V6 | Front Left | CV Axle Shaft |
