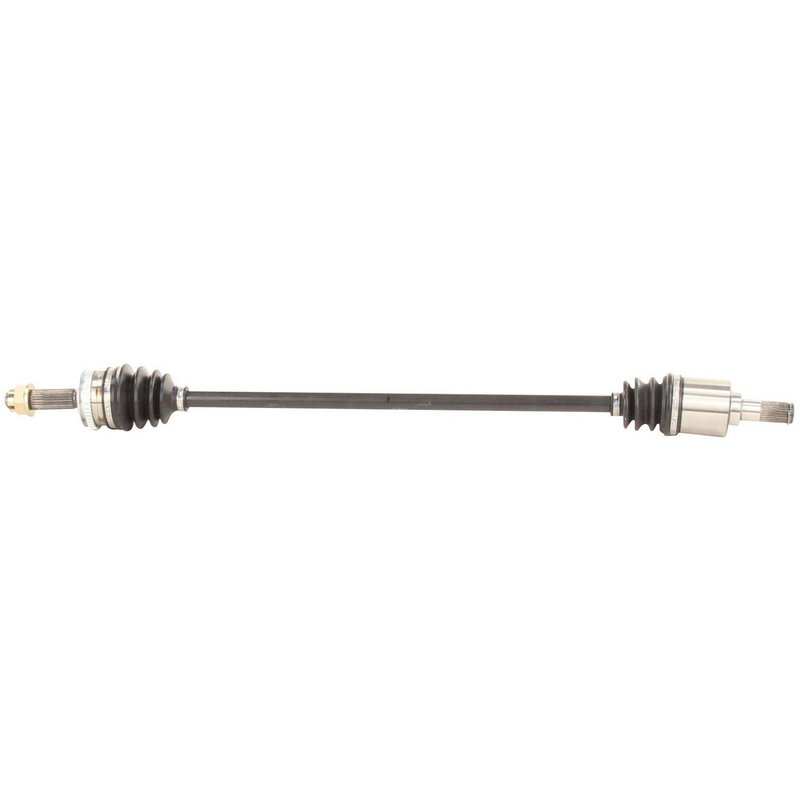

TrakMotive HY-8110 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8110

The TrakMotive CV Axle Shaft HY-8110 is engineered for reliable driveline performance in Hyundai Accent, Kia Rio, and Kia Rio5 models. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel drive system.

• Compatible with Hyundai Accent, Kia Rio, and Kia Rio5
• Includes a 48-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced joint protection
• Axle nut included with hex head and stake locking type
• Overall compressed length of 36.42 inches (925 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering reliable constant velocity components tailored for specific vehicle applications. This CV Axle Shaft HY-8110 features both inboard and outboard joints designed for smooth power transfer and durability. The inclusion of a toothed ABS ring and neoprene boot reflects the line's emphasis on maintaining sensor compatibility and protecting moving parts from contaminants.

Technical Specifications and Features

This CV Axle Shaft (part number HY-8110) includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material provides resistance to wear and environmental damage, extending the life of the joint. The axle nut is a hex head type, measuring 1 1/3 inches (34 mm) across the flats, with a height of 1 inch (27 mm) and a length of 1 5/9 inches (39.3 mm). It features a stake locking mechanism and a thread size of M22x1.5, ensuring secure installation. Both the inboard and outboard joints have 25 splines, with the inboard joint being male type and the outboard joint conventional style. The overall compressed length of the shaft is 36.42 inches (925 mm), matching OEM specifications for proper fitment.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts in Hyundai Accent, Kia Rio, and Rio5
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included stake-lock axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8110, verify compatibility with your specific Hyundai Accent, Kia Rio, or Rio5 model year. Use the included axle nut with the correct torque specifications and stake locking method to secure the axle. Inspect the neoprene boot for any damage during installation to maintain joint protection. Proper alignment of the inboard and outboard splines is critical for smooth operation and longevity.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive products undergo quality control to ensure durability and fitment accuracy. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
