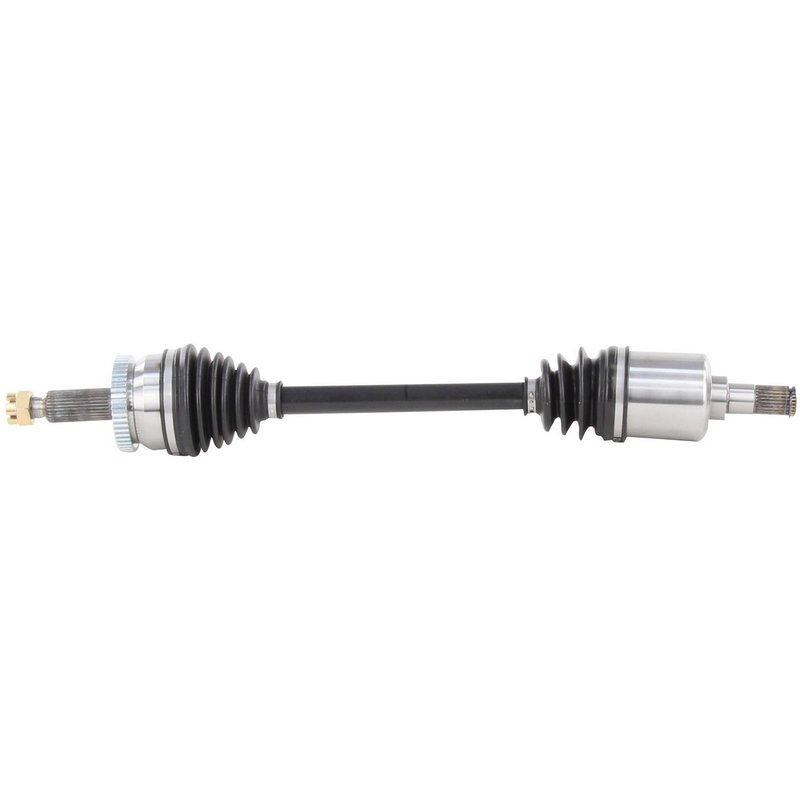

TrakMotive HY-8113 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8113 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8113 is designed specifically for Hyundai Santa Fe models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and function with key features tailored to maintain vehicle stability and smooth power transfer.

• Compatible with Hyundai Santa Fe vehicles
• Includes a 52-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for durability and protection
• Axle nut with hex head, cotter pin locking, and included in the package
• Overall compressed length of 26.3 inches (668 mm) for precise fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components engineered for direct replacement applications. This line emphasizes compatibility and durability, featuring components like ABS tone rings and neoprene boots to ensure long-lasting performance. The HY-8113 model is part of this line, offering a new axle shaft solution with specific attributes such as male inboard joint type and conventional outboard joint type to match Hyundai Santa Fe driveline requirements.

Technical Specifications and Features

The HY-8113 CV axle shaft includes a 52-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material provides resistance against environmental factors, extending the life of the joint. The axle nut features a hex head measuring 1 1/4 inches (32 mm) across flats, with a height of 6/7 inches (22 mm) and a length of 1 1/2 inches (37 mm). It uses a cotter pin locking mechanism and has an M22x1.5 thread size, ensuring secure installation. The inboard joint is male type with 27 splines, while the outboard joint is conventional with 30 splines, both designed for precise shaft connection and torque transfer. The overall compressed length of 26.3 inches (668 mm) matches Hyundai Santa Fe specifications for proper driveline alignment.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Fixes axle nut loosening problems with included cotter pin locking nut
• Eliminates vibrations or clicking noises during turns due to joint wear

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8113, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the ABS tone ring is properly seated to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. Proper alignment of the male inboard joint and spline connections is critical for smooth driveline operation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet OEM standards for Hyundai Santa Fe vehicles. It includes all necessary hardware such as the axle nut for a complete replacement. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment.
