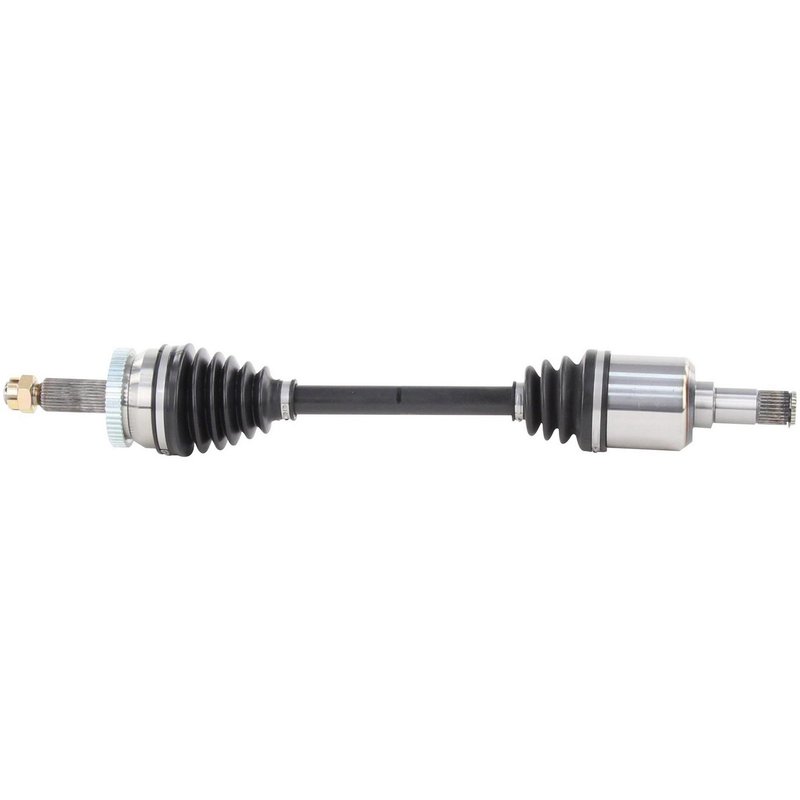

TrakMotive HY-8114 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8114 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.34 |
| Overall Compressed Length (mm) | 669 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Toothed ring is built in for applications that use ABS sensing.
Axle nut included. Comes with a hex nut and cotter pin locking style for easier installation.
Cross-references Cardone New 66-3538, Cardone New 66-3539 and TrakMotive HY-8114 for the same application. See all 16.
TrakMotive HY-8114 CV Axle Shaft for Hyundai Santa Fe
TrakMotive HY-8114 is a new CV axle shaft for front left applications on the 2007-2009 Hyundai Santa Fe. It is built for driveline service where a direct-fit replacement is needed for axle noise, vibration, or worn CV joint performance.
Key Features
- Fits 2007-2009 Hyundai Santa Fe, front left
- New CV axle shaft for driveline and axle repair
- Overall compressed length: 26.34 in. (669 mm)
- Inboard joint type: male; outboard joint type: conventional
- Inboard shaft connection style: male; outboard shaft connection style: spline
- 28 inboard splines and 30 outboard splines
- ABS tone ring included with 52-tooth toothed ring
- Neoprene boot material for CV joint protection
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
Product Details
This TrakMotive CV axle shaft is engineered for the front left side of the Hyundai Santa Fe and matches the listed OE-style dimensions and spline counts for proper driveline engagement. The HY-8114 includes an ABS tone ring and is listed for ABS-equipped service, while the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. TrakMotive identifies this part as a new replacement axle shaft, and the brand line focuses on CV axle shaft applications within driveline and axle service. This part cross-references Cardone New 66-3538 and 66-3539 for the same application.
Common Repair Applications
- Front left axle shaft replacement for a worn or noisy Hyundai Santa Fe driveline
- Repair for CV joint clicking during turns
- Correction for vibration under acceleration from a damaged axle assembly
- Replacement for torn boot or grease loss at the CV joint
- Service for ABS tone ring-related axle replacement needs
Installation Notes and Tips
Verify spline count, axle nut thread size, and compressed length before installation. Confirm front left placement and compare the ABS tone ring configuration to the original axle on the vehicle. Inspect seals, hub components, and related suspension hardware during replacement to help prevent repeat driveline issues.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for replacement driveline components.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2009 | Hyundai | Santa Fe | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2008 | Hyundai | Santa Fe | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2007 | Hyundai | Santa Fe | 3.3L | V6 | Front Left | CV Axle Shaft |
