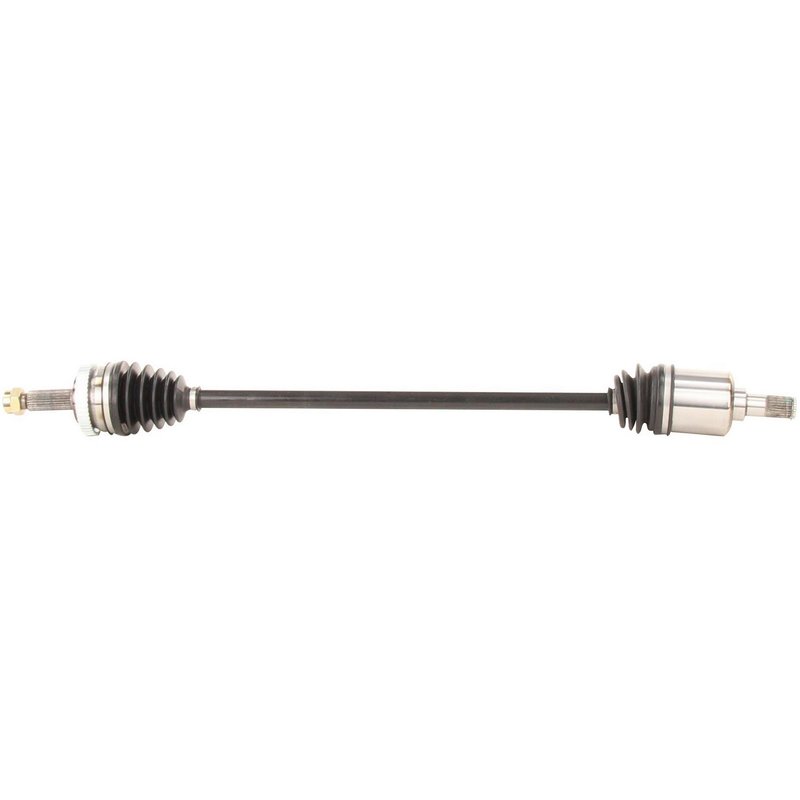

TrakMotive HY-8115 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8115 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.46 |
| Overall Compressed Length (mm) | 977 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
New axle shaft. Built with a neoprene boot for dependable CV joint protection.
ABS tone ring included. Toothed ring with 47 teeth for integrated wheel speed sensing.
Axle nut included. Hex nut with cotter pin locking for a secure install.
Cross-references Cardone New 66-3597, Cardone Reman 60-3597 and TrakMotive HY-8115 for the same application. See all 7.
Front Right CV Axle Shaft for Sonata
TrakMotive HY-8115 is a new CV axle shaft for the front right position on 2008-2010 Hyundai Sonata models. It is built for direct driveline replacement service and includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2008-2010 Hyundai Sonata, front right
- New CV axle shaft from TrakMotive
- Overall compressed length: 38.46 in. (977 mm)
- 27 inboard splines and 27 outboard splines
- Male inboard joint with spline-style outboard shaft connection
- Neoprene boot material for driveline protection
- ABS tone ring included with 47-tooth toothed ring
- Axle nut included: M22 x 1.5 thread, 32 mm hex size, cotter pin locking type
Product Details
HY-8115 is a TrakMotive CV axle shaft for the front right side of the 2008-2010 Hyundai Sonata. The axle uses a conventional outboard joint, a male inboard joint, and a 27-spline connection at both ends to match the listed fitment. The included toothed ABS ring and tone ring support vehicles equipped with ABS, while TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Cardone New 66-3597 and Cardone Reman 60-3597 for the same application.
Common Replacement Reasons
- Clicking or popping during turns from worn CV joints
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- ABS warning light concerns tied to a damaged tone ring or axle sensor interface
- Driveline noise from a worn front right axle assembly
Installation Notes
Confirm the vehicle is a 2008, 2009, or 2010 Hyundai Sonata before ordering. Verify front right position, spline count, axle nut thread size, and ABS ring style against the original axle. Inspect hub, seals, and related suspension components during replacement to help prevent repeat driveline noise or vibration.
Quality Assurance
TrakMotive identifies this axle as a new part and states that its products are backed by a limited lifetime warranty. The company also notes ISO 9001:1007 and TS 16949:2009 certification.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Hyundai | Sonata | — | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2009 | Hyundai | Sonata | — | 2.4L | L4 | Front Right | CV Axle Shaft |
| 2008 | Hyundai | Sonata | Manual | 2.4L | L4 | Front Right | CV Axle Shaft |
