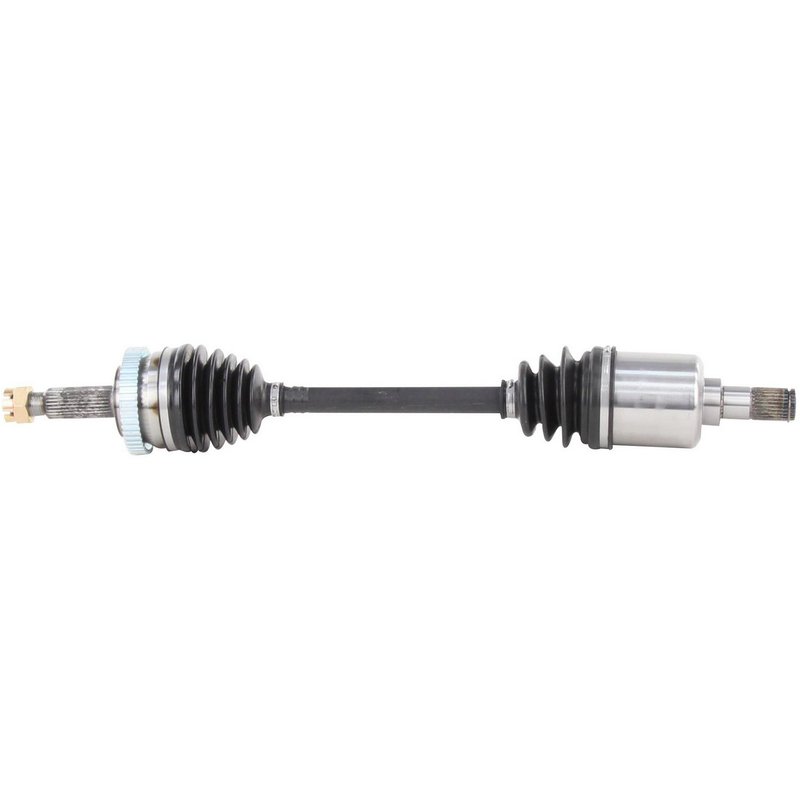

TrakMotive HY-8116 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8116 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 47 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.94 |
| Overall Compressed Length (mm) | 659 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for dependable sealing.
ABS tone ring included. Toothed ring is built in for applications that use ABS.
Axle nut included. Hex nut with cotter pin locking is ready for installation.
Cross-references Cardone New 66-3596, TrakMotive HY-8116 and 80-3037 for the same application. See all 8.
CV Axle Shaft for Hyundai Sonata
TrakMotive HY-8116 is a new CV axle shaft for the front left position on 2009-2010 Hyundai Sonata models. It is built for direct driveline replacement on the Hyundai Sonata front left application and includes the axle nut and ABS tone ring details needed for the listed fitment.
Key Features
- Fits 2009-2010 Hyundai Sonata, front left
- TrakMotive CV Axle Shaft, part number HY-8116
- New axle assembly with 27 inboard splines and 27 outboard splines
- Overall compressed length: 25.94 in. (659 mm)
- Neoprene boot material for driveline protection
- ABS tone ring included with 47-tooth toothed ring
- Axle nut included: M22 x 1.5 thread, 32 mm hex size, cotter pin locking type
- Male inboard shaft connection and conventional outboard joint type
Product Details
TrakMotive HY-8116 is a CV axle shaft for the Hyundai Sonata front left driveline position. The assembly is engineered as a new replacement unit with a male inboard joint, spline-style outboard shaft connection, and a compressed length of 25.94 inches to match the listed application. The included ABS tone ring and 47-tooth toothed ring support vehicles equipped for that configuration, while the neoprene boot helps protect the joint area from road contamination. This part cross-references Cardone New 66-3596 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged axle boot
- Excessive driveline play caused by spline or joint wear
- ABS-related axle replacement needs on the listed Sonata application
Installation Notes and Tips
Verify the vehicle’s front left application, spline count, axle length, and ABS ring configuration before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle requirements. Inspect related suspension and hub components during replacement to help ensure proper driveline operation on the 2009-2010 Hyundai Sonata.
Quality Assurance
TrakMotive identifies this CV axle shaft as a new part and states that its products are backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled manufacturing and quality management practices.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2010 | Hyundai | Sonata | 2.4L | L4 | Front Left | CV Axle Shaft |
| 2009 | Hyundai | Sonata | 2.4L | L4 | Front Left | CV Axle Shaft |
