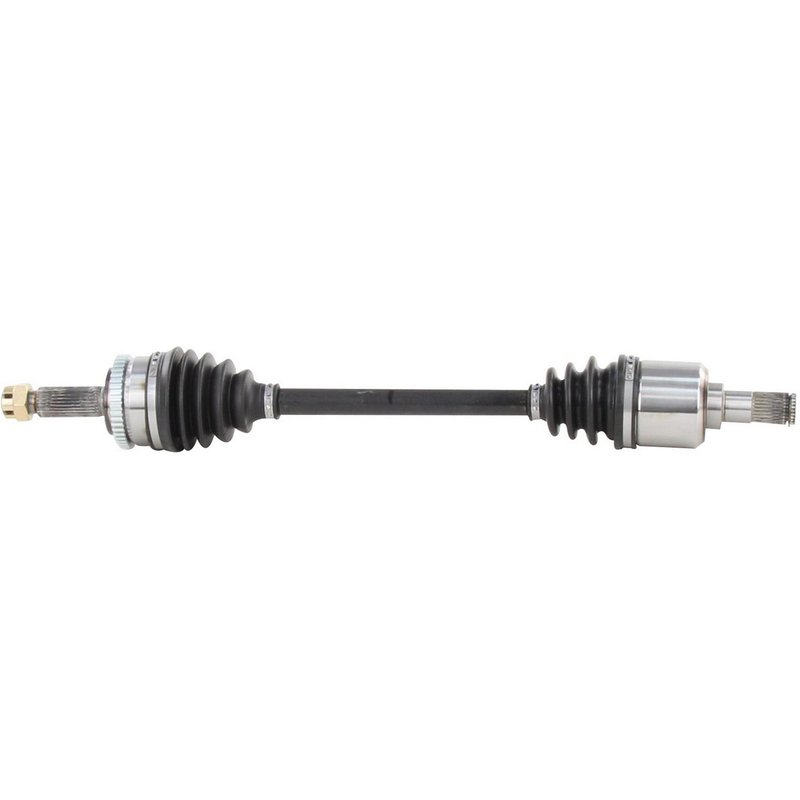

TrakMotive HY-8118 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8118 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.46 |
| Overall Compressed Length (mm) | 672 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 4 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
ABS tone ring included. Toothed ring comes installed for compatible ABS applications.
Neoprene boot material. Flexible construction helps protect the joint from road debris and moisture.
Cross-references Cardone New 66-3523, Cardone Reman 60-3523 and Cardone Reman 60-3726 for the same application. See all 22.
TrakMotive HY-8118 CV Axle Shaft for Hyundai Elantra
TrakMotive HY-8118 is a new CV axle shaft for the front left position on 2007-2010 Hyundai Elantra models. It is built with a 26.46-inch compressed length, 27 inboard splines, 27 outboard splines, and a toothed ABS tone ring with 46 teeth for applications that require wheel speed sensor signal support.
The TrakMotive CV Axle Shaft line focuses on direct-fit driveline replacement parts for passenger vehicles. HY-8118 follows that approach with a male inboard connection, conventional outboard joint, neoprene boot material, and included axle nut for the specified application.
- Fits 2007-2010 Hyundai Elantra, front left
- New CV axle shaft for driveline replacement
- 26.46 in. overall compressed length
- 27-spline inboard and 27-spline outboard configuration
- Toothed ABS ring with 46 teeth and included tone ring
- Male inboard shaft connection and conventional outboard joint
- Neoprene boot material for axle boot service life
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
HY-8118 is a direct replacement CV axle shaft for Hyundai Elantra front left driveline service. It is specified for 2007, 2008, 2009, and 2010 Hyundai Elantra applications and is built to match the listed spline count, compressed length, and ABS ring configuration. This part cross-references Cardone New 66-3523 for the same application.
Common Replacement Uses
- Restores drivetrain connection when the original axle is worn or damaged
- Addresses clicking or popping noises during turns caused by CV joint wear
- Helps correct vibration from a bent or failing axle shaft
- Replaces a torn boot or contaminated joint assembly
- Supports ABS-equipped front left Hyundai Elantra service needs
Installation Notes and Tips
Verify the front left position, spline count, compressed length, and ABS ring details before installation. Confirm axle nut thread size, hex size, and locking style against the vehicle specification, and inspect related hub, seal, and suspension components during service.
Quality Assurance
TrakMotive manufactures this axle shaft as a new replacement part from an ISO 9001:1007 and TS 16949:2009 certified company. Manufacturer coverage includes a limited lifetime warranty.
| Year | Make | Model | Body Type | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Hyundai | Elantra | Sedan | Front Left | CV Axle Shaft |
| 2009 | Hyundai | Elantra | Sedan | Front Left | CV Axle Shaft |
| 2008 | Hyundai | Elantra | — | Front Left | CV Axle Shaft |
| 2007 | Hyundai | Elantra | — | Front Left | CV Axle Shaft |
