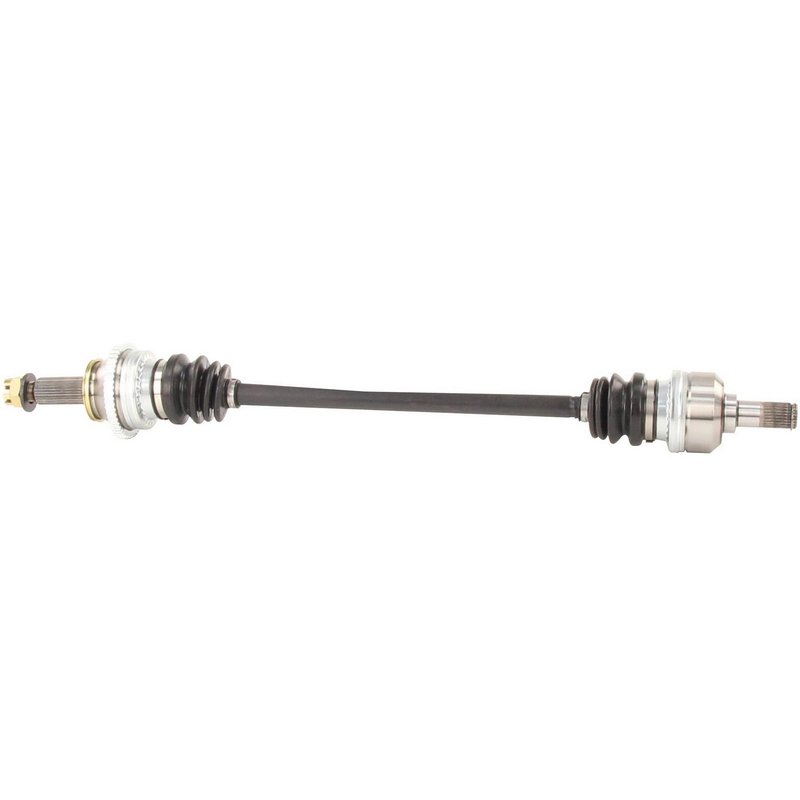

TrakMotive HY-8205 CV Axle Shaft - Rear Left or Rear Right

Overview of TrakMotive CV Axle Shaft HY-8205 for Hyundai Santa Fe

The TrakMotive CV Axle Shaft HY-8205 is engineered specifically for Hyundai Santa Fe models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Hyundai Santa Fe models
• Includes ABS tone ring with 52 toothed abs ring teeth
• Equipped with a neoprene boot for durability and protection
• Axle nut included with cotter pin locking mechanism
• Overall compressed length of 32.68 inches (830 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed for driveline and axle applications. This line emphasizes precise fitment and durability, featuring components such as ABS tone rings and neoprene boots to protect against wear and environmental damage. The HY-8205 model exemplifies these qualities with its robust construction and inclusion of necessary hardware like the axle nut and cotter pin locking system.

Technical Specifications and Features

The HY-8205 CV axle shaft includes a 52-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to heat and contaminants, extending the life of the joint. The axle nut features a hex head type measuring 1 1/4 inches (32 mm) across flats, with a length of 1 1/2 inches (37 mm) and a height of 6/7 inches (22 mm). It uses an M22x1.5 thread size and locks securely with a cotter pin to prevent loosening during operation. The inboard joint is a male type with 27 splines, while the outboard joint is conventional with 30 splines, ensuring proper connection and torque transfer. The overall compressed length of 32.68 inches (830 mm) matches Hyundai Santa Fe specifications for direct replacement.

Common Applications and Problem Solving

• Replacement of worn or damaged CV axle shafts on Hyundai Santa Fe
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures axle assembly with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8205 on a Hyundai Santa Fe, ensure the axle nut is torqued to manufacturer specifications and the cotter pin is properly installed to secure the nut. Inspect the axle splines for damage before installation to guarantee a smooth fit. The neoprene boot should be checked for any tears or punctures during installation to maintain joint protection. Proper alignment of the ABS tone ring is critical for accurate sensor readings.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive provides quality assurance through rigorous manufacturing controls. The product includes all necessary hardware for installation, such as the axle nut and cotter pin. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
