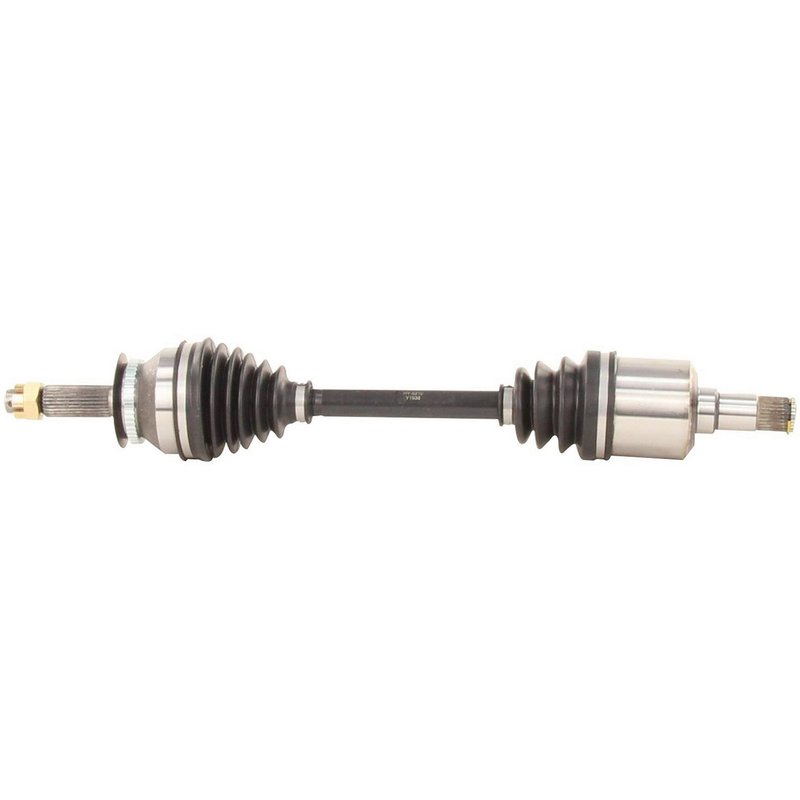

TrakMotive HY-8210 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8210 for Hyundai Tiburon

The TrakMotive CV Axle Shaft HY-8210 is designed specifically for Hyundai Tiburon models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Hyundai Tiburon
• Includes ABS tone ring with 44 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 24.84 inches (631 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for specific vehicle applications. The HY-8210 model features a male inboard joint type and conventional outboard joint, ensuring compatibility with Hyundai Tiburon's driveline system. This product line emphasizes quality materials such as neoprene boots and includes necessary hardware like axle nuts with cotter pin locking for secure installation.

Technical Specifications and Features

The HY-8210 CV axle shaft includes a 44-tooth ABS ring with a toothed design and an included ABS tone ring, which supports accurate wheel speed sensor readings. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It features an M22 x 1.5 thread size and a cotter pin locking mechanism to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the CV joint. The inboard shaft connection is male with 29 splines, while the outboard shaft connection is conventional with 27 splines, matching the Hyundai Tiburon's specifications.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Tiburon
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8210 on a Hyundai Tiburon, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boots for any damage during installation to maintain joint protection. This CV axle shaft is designed for direct replacement, matching OEM spline counts and connection styles for straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8210 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut with cotter pin locking for secure fitment. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and performance in Hyundai Tiburon driveline applications.
