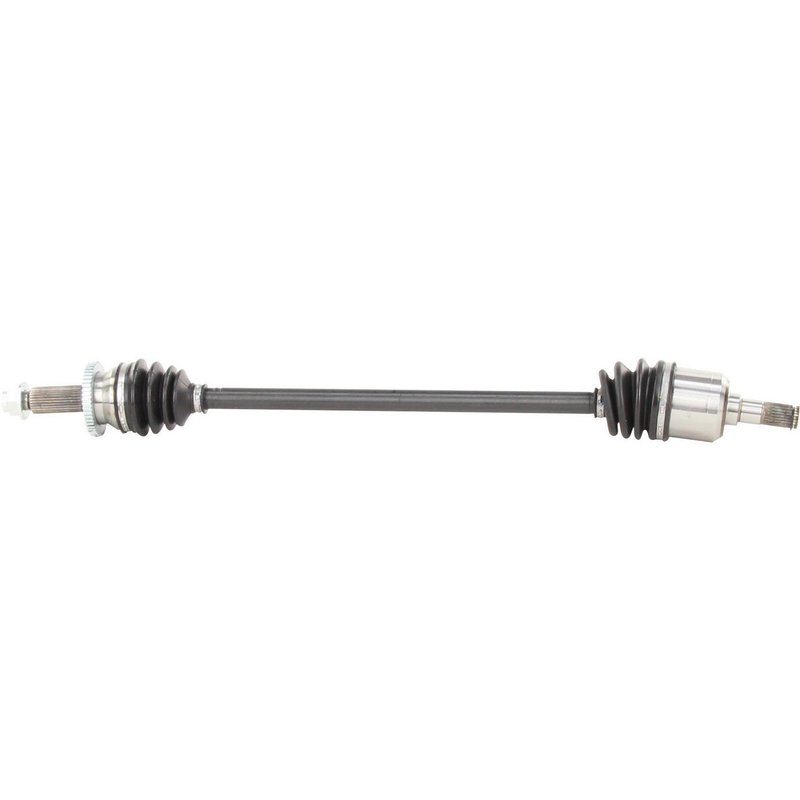

TrakMotive HY-8215 CV Axle Shaft - Rear Left
| Brand | TrakMotive HY-8215 |
|---|---|
| Position | Rear Left |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 33.33 |
| Overall Compressed Length (mm) | 846.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 15 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring is already installed for ABS-equipped applications.
Cross-references TrakMotive HY-8215, 49600W050 and 496001U500 for the same application. See all 3.
Rear Left CV Axle Shaft for Hyundai and Kia
TrakMotive HY-8215 is a new CV axle shaft built for rear left applications on select Hyundai and Kia vehicles. It is engineered for direct replacement service on the Hyundai Santa Fe XL, Hyundai Santa Fe, and Kia Sorento with the listed fitments.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8215
- Rear left axle shaft for select Hyundai and Kia applications
- New unit with a neoprene boot
- Male inboard joint and conventional outboard joint
- 25 inboard splines and 30 outboard splines
- ABS tone ring included with 52-tooth toothed ring
- Axle nut included; M22 x 1.5 thread, 32 mm hex size, stake locking type
- Overall compressed length: 33.33 in. (846.5 mm)
Product Details
TrakMotive HY-8215 is a CV axle shaft for rear left driveline service on 2013-2019 Hyundai Santa Fe XL, 2013-2018 Hyundai Santa Fe LWB, and 2014-2015 Kia Sorento. The axle uses a male inboard shaft connection, a conventional outboard connection, and a neoprene boot to support driveline movement while maintaining a proper sealed assembly. The included ABS tone ring and 52-tooth toothed ring support vehicles equipped with ABS-related wheel speed sensing. This part cross-references OE-style numbers 49600W050 and 496001U500 for the same application.
Common Repair Uses
- Restores driveline transfer when the original axle shaft is worn or damaged
- Addresses clicking, vibration, or binding from a failing CV axle assembly
- Replaces a torn boot or contaminated joint assembly
- Supports ABS-related wheel speed signal concerns when the tone ring is part of the repair
- Helps correct rear left axle noise on Hyundai Santa Fe XL, Hyundai Santa Fe, and Kia Sorento applications
Installation Notes
Verify rear left fitment by year, model, and drivetrain configuration before installation. Confirm axle length, spline count, and axle nut specifications against the original part. Use the included axle nut with the correct 32 mm hex size and M22 x 1.5 thread specification, and follow vehicle service procedures for staking and torque.
Quality Assurance
TrakMotive manufactures this CV axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification. The HY-8215 is backed by a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Hyundai | Santa Fe XL | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Left | LWB; CV Axle Shaft |
| 2018 | Hyundai | Santa Fe XL | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Left | LWB; CV Axle Shaft |
| 2017 | Hyundai | Santa Fe XL | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Left | LWB; CV Axle Shaft |
| 2016 | Hyundai | Santa Fe XL | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Left | LWB; CV Axle Shaft |
| 2015 | Hyundai | Santa Fe XL | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Kia | Sorento | — | — | — | Rear Left | CV Axle Shaft |
| 2014 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Left | LWB; CV Axle Shaft |
| 2014 | Hyundai | Santa Fe XL | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Kia | Sorento | — | — | — | Rear Left | CV Axle Shaft |
| 2013 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Left | LWB; CV Axle Shaft |
| 2013 | Hyundai | Santa Fe XL | — | — | — | Rear Left | Standard Duty Replacement; CV Axle Shaft |
