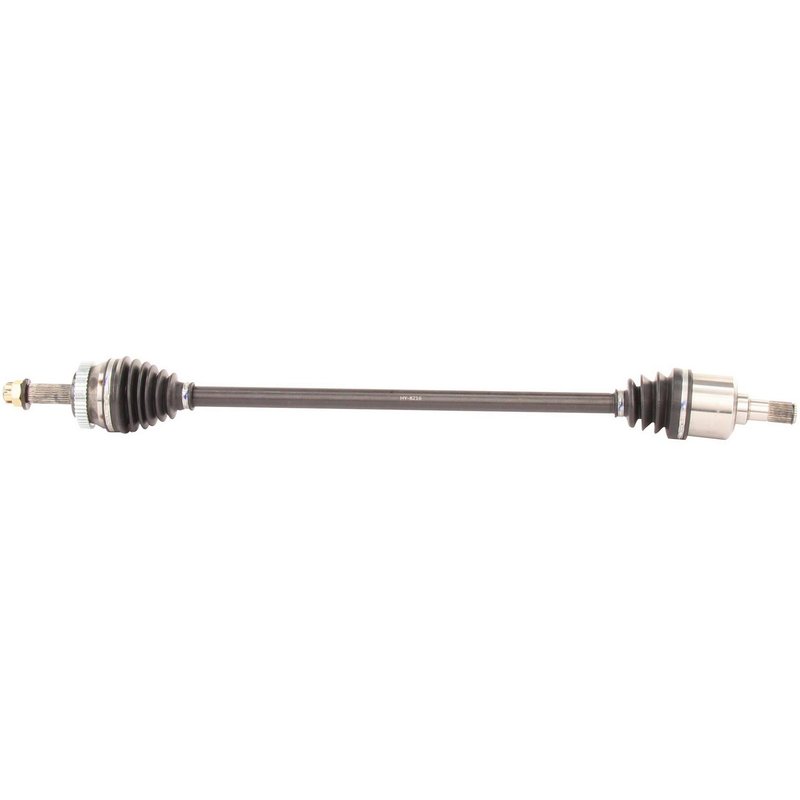

TrakMotive HY-8216 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8216 for Hyundai Sonata

The TrakMotive CV Axle Shaft HY-8216 is engineered specifically for Hyundai Sonata models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Hyundai Sonata
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for durability and protection
• Comes with axle nut featuring cotter pin locking mechanism
• Overall compressed length of 38.98 inches (990 mm)
• Male inboard joint and conventional outboard joint types
• Axle nut hex size 1 1/4 inch (32 mm) and thread size M22*1.5

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes shafts with precise spline counts and connection styles to match vehicle requirements. The HY-8216 model features a 27-spline male inboard shaft and a conventional outboard joint, ensuring compatibility with Hyundai Sonata drivetrains.

Technical Specifications and Features

This CV axle shaft includes a 48-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is included and features a hex head measuring 1 1/4 inches (32 mm) with a height of 22 mm (6/7 inch), secured by a cotter pin locking type to maintain safe installation. The overall compressed length of 38.98 inches (990 mm) ensures proper fitment within the Hyundai Sonata's driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Sonata
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty tone rings
• Fixes axle vibration or clicking noises during turns
• Restores proper driveline function after axle nut or joint failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8216, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to prevent loosening. Verify the ABS tone ring is properly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on Hyundai Sonata models, but professional installation is recommended for optimal results.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8216 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes all necessary hardware such as the axle nut for a complete installation. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and performance in driveline applications.
