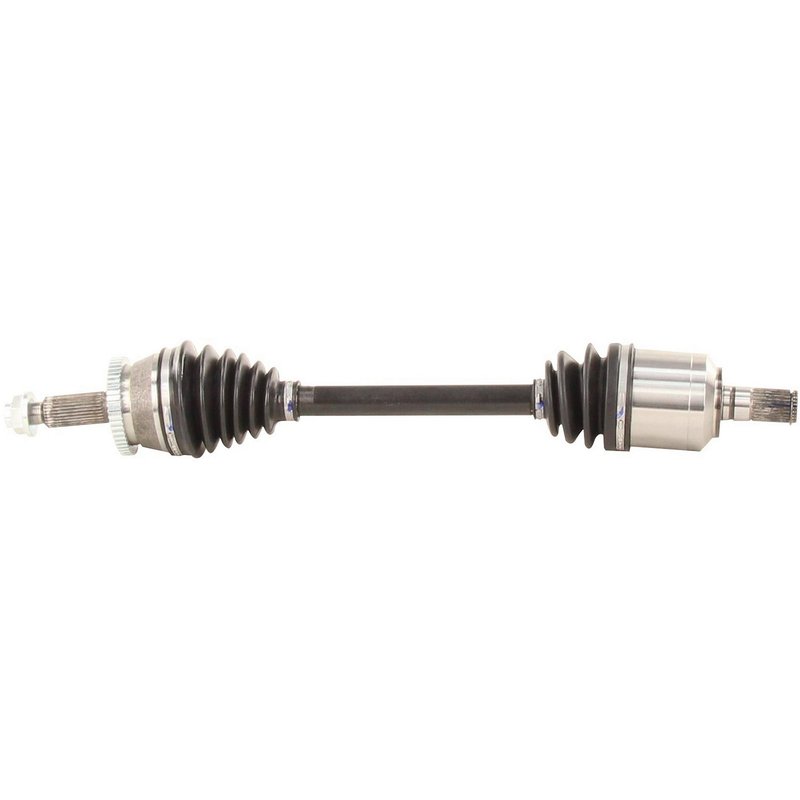

TrakMotive HY-8221 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8221

The TrakMotive CV Axle Shaft HY-8221 is engineered for reliable driveline performance in Hyundai Santa Fe Sport and Kia Sorento models. Designed to meet OEM specifications, this new CV axle shaft ensures consistent power transfer and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Santa Fe Sport and Kia Sorento
• Includes a 52-tooth ABS ring with a toothed design
• Equipped with a neoprene boot for enhanced durability
• Comes with a hex head axle nut (M22*1.5 thread size) included
• Overall compressed length of 26.75 inches (679.5 mm)
• Features male inboard joint and conventional outboard joint types

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise fit and reliable driveline components for various vehicle applications. This CV Axle Shaft line is designed to provide consistent performance and durability, featuring quality materials such as neoprene boots and ABS tone rings to maintain proper wheel speed sensor function. The HY-8221 part is a new component within this line, engineered to meet the specific requirements of Hyundai and Kia vehicles.

Technical Specifications and Features

The HY-8221 CV Axle Shaft includes a 52-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The axle nut included is a hex head type with a stake locking mechanism, measuring 1 1/2 inches in length and 1 1/4 inches across the hex, ensuring secure installation. The inboard joint uses a male connection style with 28 splines, while the outboard joint is conventional with 30 splines, providing a precise fit and smooth operation. The overall compressed length of 26.75 inches (679.5 mm) matches OEM specifications for proper driveline alignment.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe Sport and Kia Sorento
• Resolves issues related to clicking or popping noises during turns
• Addresses vibration or shuddering caused by faulty CV joints
• Restores proper ABS sensor function with included ABS tone ring
• Eliminates grease leaks from torn or degraded CV boots

Installation Notes and Tips

Ensure the vehicle is securely lifted and supported before beginning installation. Verify that the axle nut thread size (M22*1.5) matches the vehicle specifications. Use the included hex head axle nut and stake locking method to secure the axle shaft properly. Inspect the mating surfaces and splines for damage before installation. Proper torque specifications should be followed to avoid premature wear or failure.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8221 is a new, remanufactured-quality component designed to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to ensure long-lasting performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to support reliable driveline operation in Hyundai Santa Fe Sport and Kia Sorento vehicles.
