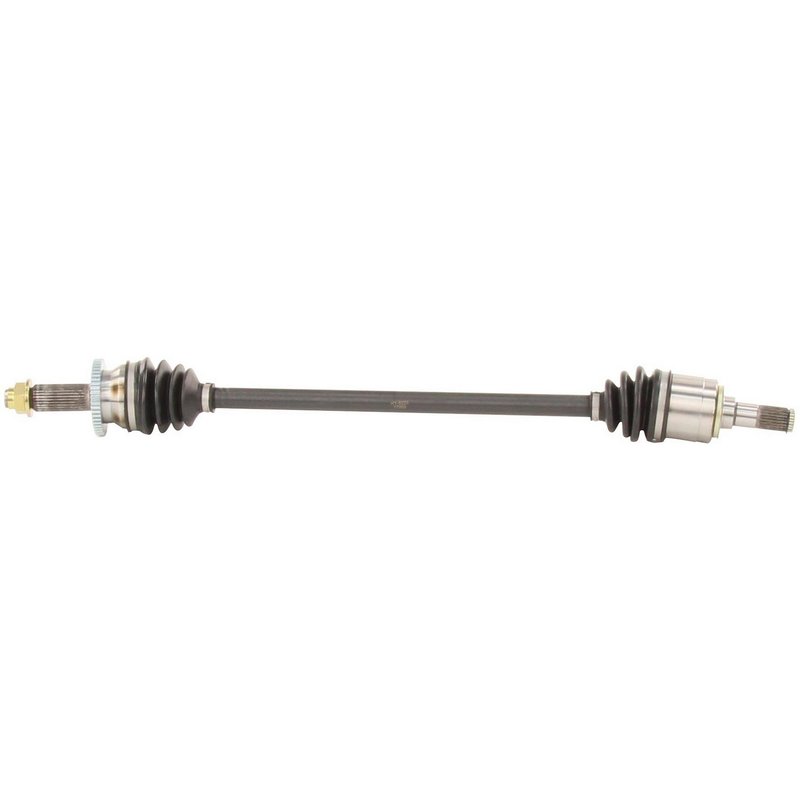

TrakMotive HY-8225 CV Axle Shaft - Rear Right
| Brand | TrakMotive HY-8225 |
|---|---|
| Position | Rear Right |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 25 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 32.81 |
| Overall Compressed Length (mm) | 833.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 13 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
ABS tone ring included. Toothed ring comes ready for ABS-equipped applications.
Neoprene boot material. Flexible construction helps protect the joint from road debris.
Cross-references TrakMotive HY-8225 and 496014Z000 for the same application. See all 2.
Rear Right CV Axle Shaft for Hyundai Santa Fe
TrakMotive HY-8225 is a new rear right CV axle shaft for select Hyundai Santa Fe and Santa Fe Sport applications. It is built for 2013-2019 Hyundai Santa Fe SWB rear right and 2013-2018 Hyundai Santa Fe Sport rear right standard duty replacement use.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8225
- Rear right position
- New axle shaft assembly
- Overall compressed length: 32.81 in. (833.5 mm)
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 52-tooth toothed ring
- Axle nut included: M22 x 1.5, 32 mm hex, stake type
Product Details
This TrakMotive CV axle shaft is engineered for rear right driveline service on the Hyundai Santa Fe and Hyundai Santa Fe Sport. HY-8225 uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support consistent operation in the rear driveline. The axle includes a toothed ABS tone ring with 52 teeth and is supplied with the axle nut specified for the application. This part cross-references 496014Z000 for the same application.
What It Helps Address
- Clicking or popping from a worn rear CV joint
- Vibration during acceleration from a damaged axle shaft
- Boot failure that can lead to grease loss and joint wear
- ABS warning concerns related to a damaged tone ring assembly
- Rear driveline noise on Hyundai Santa Fe and Santa Fe Sport models
Installation Notes
Fits 2013-2019 Hyundai Santa Fe, rear right, SWB. Fits 2013-2018 Hyundai Santa Fe Sport, rear right, standard duty replacement. Verify spline count, axle nut thread size, and ABS tone ring configuration before installation. Use the correct torque procedure for the axle nut and confirm proper seating of the shaft and joints during assembly.
Quality Assurance
TrakMotive identifies this axle shaft as a new replacement part and states ISO 9001:1007 and TS 16949:2009 certification for its manufacturing process. The manufacturer also notes a limited lifetime warranty.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Hyundai | Santa Fe | — | — | — | Rear Right | SWB; CV Axle Shaft |
| 2018 | Hyundai | Santa Fe | FWD | — | — | Rear Right | SWB; CV Axle Shaft |
| 2018 | Hyundai | Santa Fe Sport | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Hyundai | Santa Fe | FWD | — | — | Rear Right | SWB; CV Axle Shaft |
| 2017 | Hyundai | Santa Fe Sport | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Hyundai | Santa Fe | FWD | — | — | Rear Right | SWB; CV Axle Shaft |
| 2016 | Hyundai | Santa Fe Sport | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2015 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Right | SWB; CV Axle Shaft |
| 2015 | Hyundai | Santa Fe Sport | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2014 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Right | SWB; CV Axle Shaft |
| 2014 | Hyundai | Santa Fe Sport | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
| 2013 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Rear Right | SWB; CV Axle Shaft |
| 2013 | Hyundai | Santa Fe Sport | — | — | — | Rear Right | Standard Duty Replacement; CV Axle Shaft |
