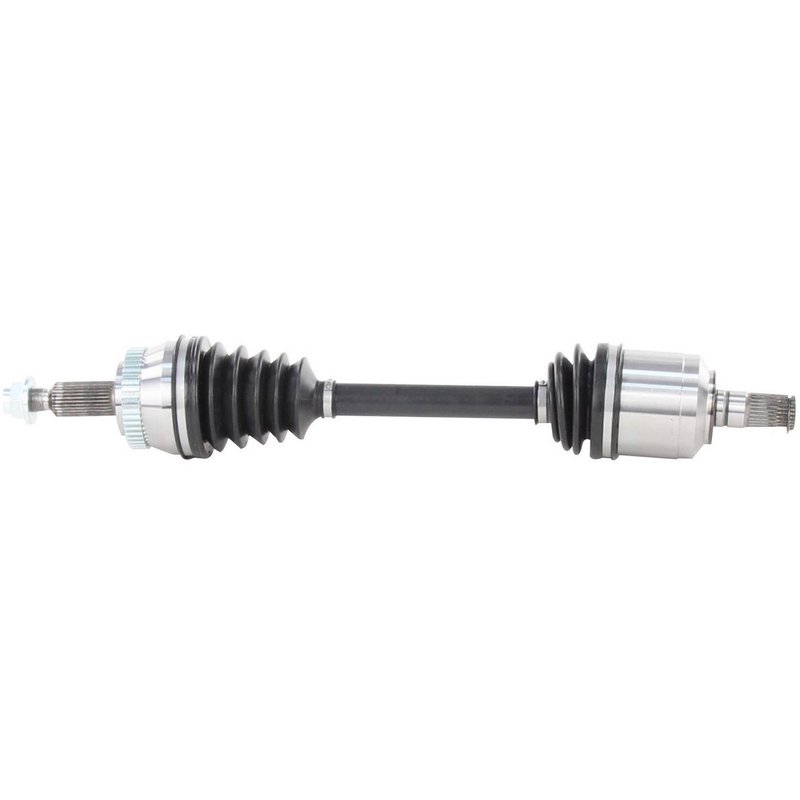

TrakMotive HY-8230 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8230 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 25.81 |
| Overall Compressed Length (mm) | 655.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
New replacement shaft. Built as a fresh CV axle shaft for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring comes installed for ABS-equipped applications.
Cross-references TrakMotive HY-8230, 5003V500 and 495003V500 for the same application. See all 5.
CV Axle Shaft for Hyundai Azera
TrakMotive HY-8230 is a new front left CV axle shaft for 2012-2017 Hyundai Azera applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to match the listed driveline configuration.
This CV axle shaft is engineered for Hyundai Azera front left replacement service and includes ABS tone ring details for the specified application. TrakMotive HY-8230 is a direct-fit driveline component for owners searching for a 2012-2017 Hyundai Azera front left CV axle shaft replacement.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8230
- Fits 2012-2017 Hyundai Azera, front left
- New axle shaft assembly
- Neoprene boot material
- Male inboard shaft connection
- Conventional outboard shaft connection
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, stake locking type
- Overall compressed length: 655.5 mm (25.81 in)
- Inboard splines: 28; outboard splines: 30
Product Details
TrakMotive HY-8230 is a CV axle shaft for the front left position on the 2012-2017 Hyundai Azera. The axle uses a male inboard joint and a conventional outboard joint, with a neoprene boot for driveline protection. It measures 655.5 mm compressed length and includes the specified ABS tone ring setup for vehicles equipped with that system. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn front left driveline assembly
- ABS-related fitment concerns when the tone ring specification is required
Installation Notes
Verify the front left position, spline count, axle nut thread size, and compressed length before installation. Confirm ABS tone ring requirements against the vehicle’s original axle configuration. Always inspect related hub, seal, and suspension components during axle replacement to help prevent repeat driveline noise or leakage.
Quality Assurance
TrakMotive lists HY-8230 as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. The manufacturer also backs this CV axle shaft with a limited lifetime warranty.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Hyundai | Azera | Front Left | CV Axle Shaft |
| 2016 | Hyundai | Azera | Front Left | CV Axle Shaft |
| 2015 | Hyundai | Azera | Front Left | CV Axle Shaft |
| 2014 | Hyundai | Azera | Front Left | CV Axle Shaft |
| 2013 | Hyundai | Azera | Front Left | CV Axle Shaft |
| 2012 | Hyundai | Azera | Front Left | CV Axle Shaft |
