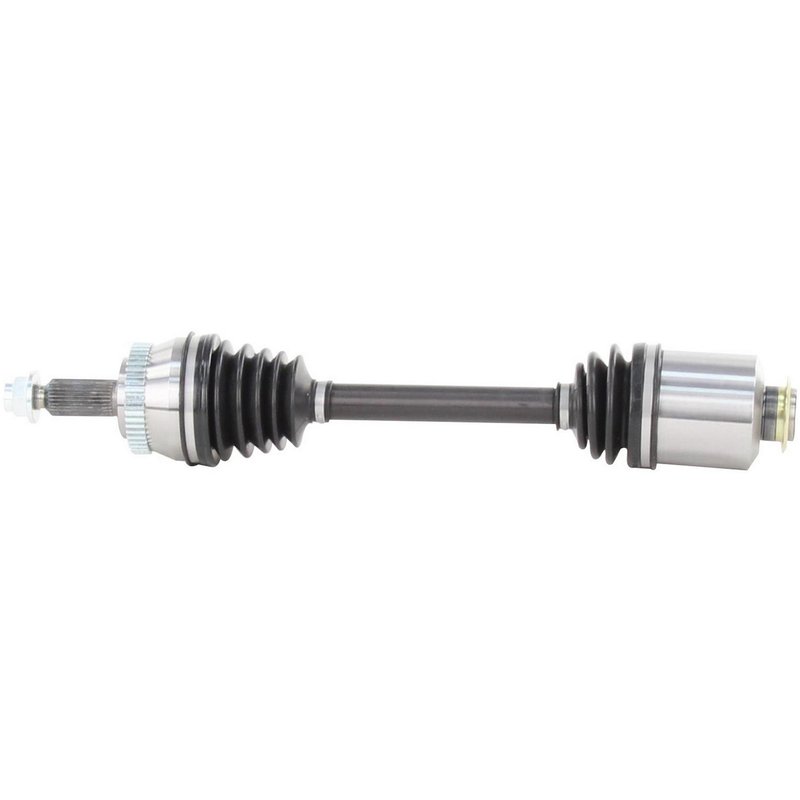

TrakMotive HY-8232 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8232 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.62 |
| Overall Compressed Length (mm) | 600 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
New axle shaft. Built with a neoprene boot for dependable CV joint protection.
ABS tone ring included. Toothed ring with 48 teeth for integrated wheel speed sensing.
Axle nut included. Hex nut with stake locking for secure installation.
Cross-references TrakMotive HY-8232, 5013V550 and 495013V550 for the same application. See all 5.
Front Right CV Axle Shaft for Hyundai Azera
TrakMotive HY-8232 is a new CV axle shaft for the front right position on 2012-2017 Hyundai Azera models. It is built for direct replacement service with the correct spline counts, ABS tone ring, and axle nut specifications for the listed application.
Key Features
- Fits 2012-2017 Hyundai Azera, front right
- New CV axle shaft for driveline repair and replacement
- 48-tooth toothed ABS ring with tone ring included
- Neoprene boot material for joint protection
- Female inboard joint and conventional outboard joint design
- Overall compressed length: 23.62 in. (600 mm)
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- TrakMotive HY-8232 cross-references Monroe Shocks & Struts 172286 and 182286 for the same application
Product Details
TrakMotive HY-8232 is a CV axle shaft for Hyundai Azera front right applications from 2012 through 2017. It features a 28-2 inboard spline count, 30 outboard splines, a female inboard connection, and a conventional outboard connection to match the listed vehicle fitment. The ABS tone ring is included, with a 48-tooth toothed design for vehicles equipped with ABS-related axle requirements. This part number, HY-8232, is a direct-fit driveline replacement for the specified Hyundai Azera years.
Common Repair Uses
- Restores a worn or noisy front axle assembly
- Addresses vibration during acceleration or turning
- Replaces a damaged CV joint or torn boot assembly
- Corrects clicking or binding from the front right axle area
- Supports ABS-equipped axle replacement on the listed Hyundai Azera models
Installation Notes
Verify front right fitment before installation and confirm axle nut thread size, spline counts, and ABS ring requirements against the original part. The axle nut is included and uses a 32 mm hex size with stake-style locking. Because ABS axles fit non-ABS applications unless otherwise noted, confirm the vehicle’s brake and sensor setup before installation. Professional installation and a final road test are recommended after replacement.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, reflecting controlled production and quality management practices for this replacement part.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2017 | Hyundai | Azera | Front Right | CV Axle Shaft |
| 2016 | Hyundai | Azera | Front Right | CV Axle Shaft |
| 2015 | Hyundai | Azera | Front Right | CV Axle Shaft |
| 2014 | Hyundai | Azera | Front Right | CV Axle Shaft |
| 2013 | Hyundai | Azera | Front Right | CV Axle Shaft |
| 2012 | Hyundai | Azera | Front Right | CV Axle Shaft |
