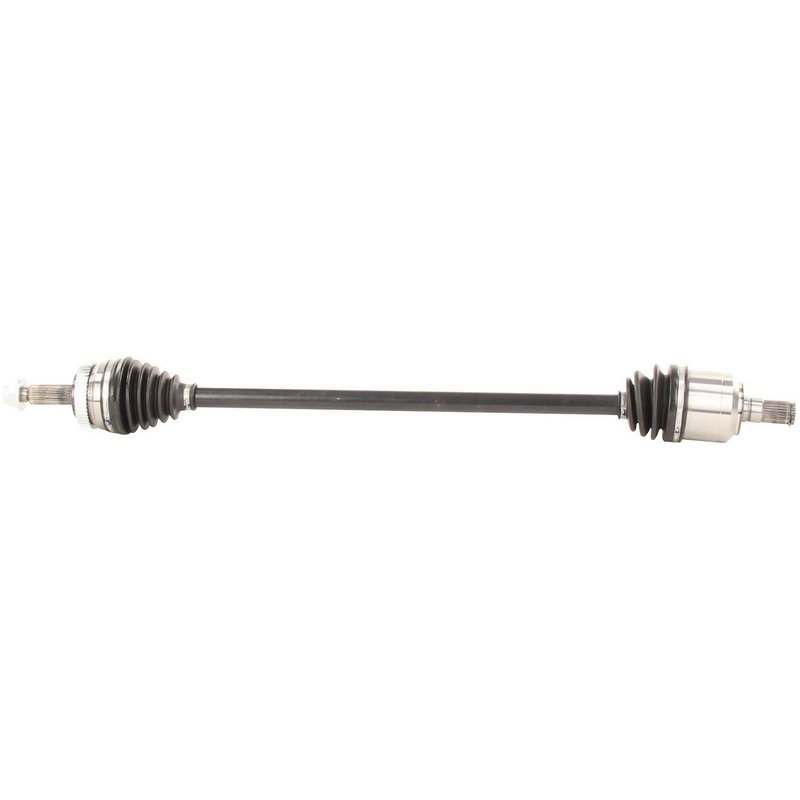

TrakMotive HY-8233 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8233

The TrakMotive CV Axle Shaft HY-8233 is engineered for reliable driveline performance in Hyundai and Kia vehicles. Designed specifically for models like the Hyundai Sonata and Kia Optima, this new CV axle shaft ensures precise fitment and durability.

• Compatible with Hyundai Sonata and Kia Optima
• Includes a neoprene boot for enhanced protection
• Equipped with a 48-tooth ABS ring for accurate wheel speed sensing
• Comes with a hex head axle nut (M22*1.5 thread size) included
• Overall compressed length of 39.49 inches (1003 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This CV axle shaft model HY-8233 features a conventional outboard joint and a male inboard joint connection style, ensuring compatibility with the driveline systems of Hyundai and Kia vehicles. The inclusion of a toothed ABS ring and tone ring supports proper ABS functionality, critical for vehicle safety systems.

Technical Specifications and Features

This CV axle shaft is constructed with a neoprene boot material that offers resistance to wear and environmental factors. The axle nut included is a stake locking type with a hex head measuring 1 1/4 inches (32 mm) across flats, 1 inch (24 mm) in height, and 1 1/2 inches (37 mm) in length, providing secure fastening. The shaft features 28 inboard splines and 27 outboard splines, designed for precise engagement and torque transfer. The overall compressed length of 39.49 inches (1003 mm) ensures proper fitment within the driveline assembly.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Sonata and Kia Optima
• Restores proper ABS sensor function with included toothed ABS ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures driveline connection with included stake locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8233, ensure the axle nut is torqued to manufacturer specifications to maintain proper locking. Verify the ABS tone ring is correctly positioned to avoid sensor errors. Inspect the neoprene boot for any damage during installation to prevent premature failure. This part is designed for direct replacement on compatible Hyundai Sonata and Kia Optima models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8233 is a new, not remanufactured, component built to meet OEM standards. It includes all necessary hardware such as the axle nut for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in driveline applications.
