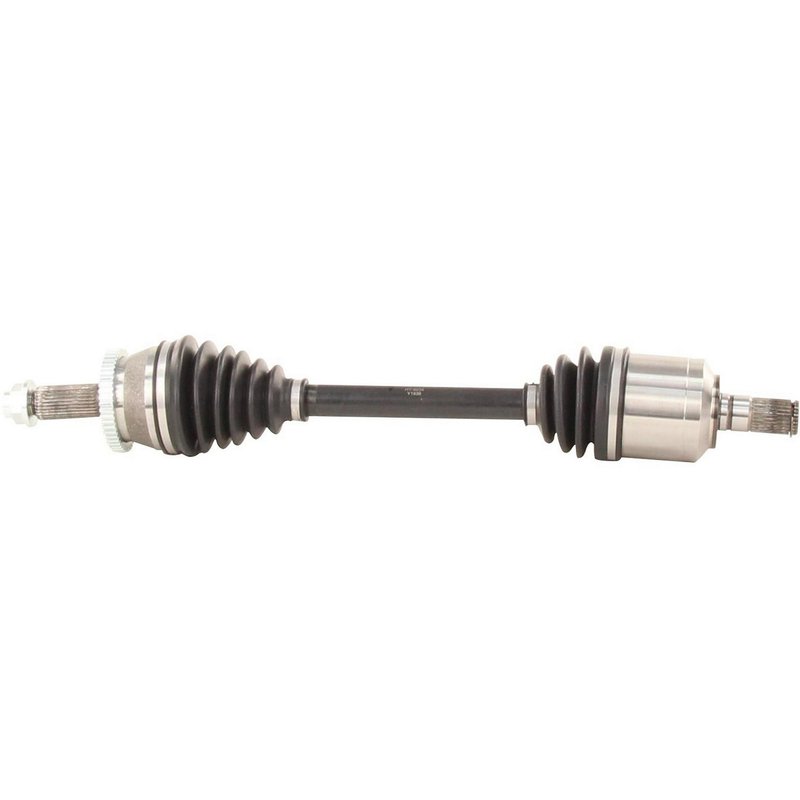

TrakMotive HY-8234 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8234 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.1 |
| Overall Compressed Length (mm) | 663 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 6 vehicles |
New CV axle shaft. Built as a direct replacement for driveline service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Toothed ring with 52 teeth for ABS-equipped applications.
Cross-references TrakMotive HY-8234, 5002W400 and 495002W400 for the same application. See all 5.
TrakMotive HY-8234 CV Axle Shaft
TrakMotive HY-8234 is a new front left CV axle shaft for select Hyundai Santa Fe and Kia Sorento applications. It is built for direct driveline replacement on vehicles with ABS or non-ABS setups, where noted, and includes the axle nut for service-ready installation.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8234
- Front left position
- New axle shaft assembly
- Overall compressed length: 26.1 in. (663 mm)
- Inboard joint type: male
- Outboard joint type: conventional
- Boot material: neoprene
- ABS tone ring included with 52-tooth toothed ring
- Axle nut included; M22 x 1.5 thread, 32 mm hex, stake type
Detailed Description
This TrakMotive CV axle shaft is engineered for 2013-2016 Hyundai Santa Fe front left and 2014-2015 Kia Sorento front left applications. HY-8234 uses a male inboard connection, a conventional outboard joint, and a neoprene boot to support driveline service in the specified positions. The included ABS tone ring and 52-tooth ring count help maintain proper wheel speed signal function where equipped. TrakMotive HY-8234 is a direct replacement option for drivers addressing worn or noisy front axle components on Hyundai Santa Fe and Kia Sorento models.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
What It Helps Fix
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged front axle shaft
- Grease leakage caused by a torn or deteriorated boot
- ABS warning concerns related to a failed tone ring or axle signal issue
- Driveline play or binding at the front left axle position
Installation Notes and Tips
Verify axle spline count, compressed length, and axle nut thread size before installation. HY-8234 uses 28 inboard splines and 30 outboard splines, with a 1 1/4 in. (32 mm) hex axle nut and M22 x 1.5 thread. Confirm vehicle configuration and ABS requirements for your Hyundai Santa Fe or Kia Sorento before service. Always inspect hub, seals, and related suspension components during axle replacement.
Quality Assurance
TrakMotive states this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2016 | Hyundai | Santa Fe | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2015 | Hyundai | Santa Fe | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2015 | Kia | Sorento | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2014 | Hyundai | Santa Fe | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2014 | Kia | Sorento | 3.3L | V6 | Front Left | CV Axle Shaft |
| 2013 | Hyundai | Santa Fe | 3.3L | V6 | Front Left | CV Axle Shaft |
