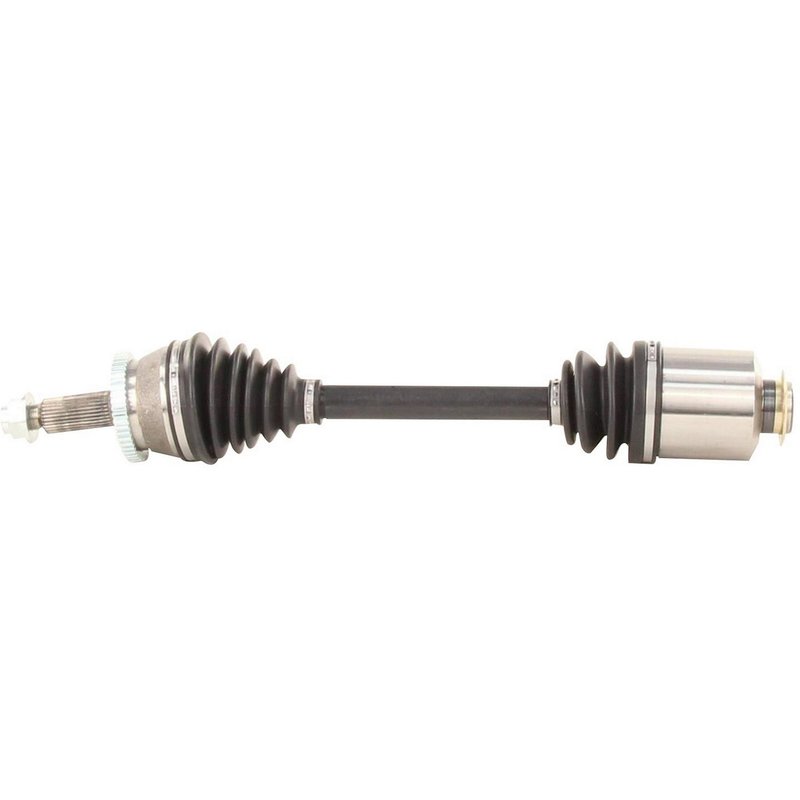

TrakMotive HY-8235 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8235 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Female |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28-2 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 23.94 |
| Overall Compressed Length (mm) | 608 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 11 vehicles |
New replacement shaft. Built as a new CV axle shaft for straightforward service replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Comes with a toothed ring for ABS-equipped applications.
Cross-references TrakMotive HY-8235, 5012W450 and 495012W450 for the same application. See all 5.
Front Right CV Axle Shaft for Hyundai and Kia
TrakMotive HY-8235 is a new CV axle shaft for front right applications on select Hyundai Santa Fe, Hyundai Santa Fe XL, and Kia Sorento models. It is built with a neoprene boot, a toothed ABS tone ring, and the correct spline and joint configuration for the listed fitments.
Key Features
- New CV axle shaft for front right driveline service
- Fits 2013-2018 Hyundai Santa Fe, front right
- Fits 2017-2018 Hyundai Santa Fe XL, front right
- Fits 2019 Hyundai Santa Fe XL, front right
- Fits 2014-2015 Kia Sorento, front right
- 52-tooth toothed ABS ring with tone ring included
- Neoprene boot material for CV joint protection
- Female inboard connection with conventional outboard joint
- 28-2 inboard splines and 30 outboard splines
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and stake locking type
Product Details
TrakMotive HY-8235 is a direct-fit replacement CV axle shaft engineered for front right use on the listed Hyundai and Kia vehicles. The shaft measures 23.94 inches compressed length and uses a female inboard shaft connection with a conventional outboard connection. For ABS-equipped applications, the axle includes a toothed tone ring with 52 teeth. TrakMotive identifies this axle as a new part and notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references 5012W450 and HY-8-8653A for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns caused by worn CV joints
- Vibration or shudder from a damaged axle shaft
- Torn or deteriorated axle boot that can lead to grease loss
- ABS warning concerns related to a damaged tone ring or axle sensor interface
- Driveline looseness from spline or joint wear
Installation Notes and Tips
Verify front right fitment by matching the year, model, and drivetrain configuration before installation. Inspect axle seals, hub splines, and mounting points for wear or damage during replacement. Confirm axle nut thread size, hex size, and locking style against the vehicle specification before final assembly. Use the listed fitment data for 2013-2018 Hyundai Santa Fe, 2017-2018 Hyundai Santa Fe XL, 2019 Hyundai Santa Fe XL, and 2014-2015 Kia Sorento applications.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Hyundai | Santa Fe XL | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2018 | Hyundai | Santa Fe | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2018 | Hyundai | Santa Fe XL | — | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2017 | Hyundai | Santa Fe | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2017 | Hyundai | Santa Fe XL | — | — | — | Front Right | Standard Duty Replacement; CV Axle Shaft |
| 2016 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2015 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2015 | Kia | Sorento | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2014 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2014 | Kia | Sorento | — | 3.3L | V6 | Front Right | CV Axle Shaft |
| 2013 | Hyundai | Santa Fe | AWD | 3.3L | V6 | Front Right | CV Axle Shaft |
