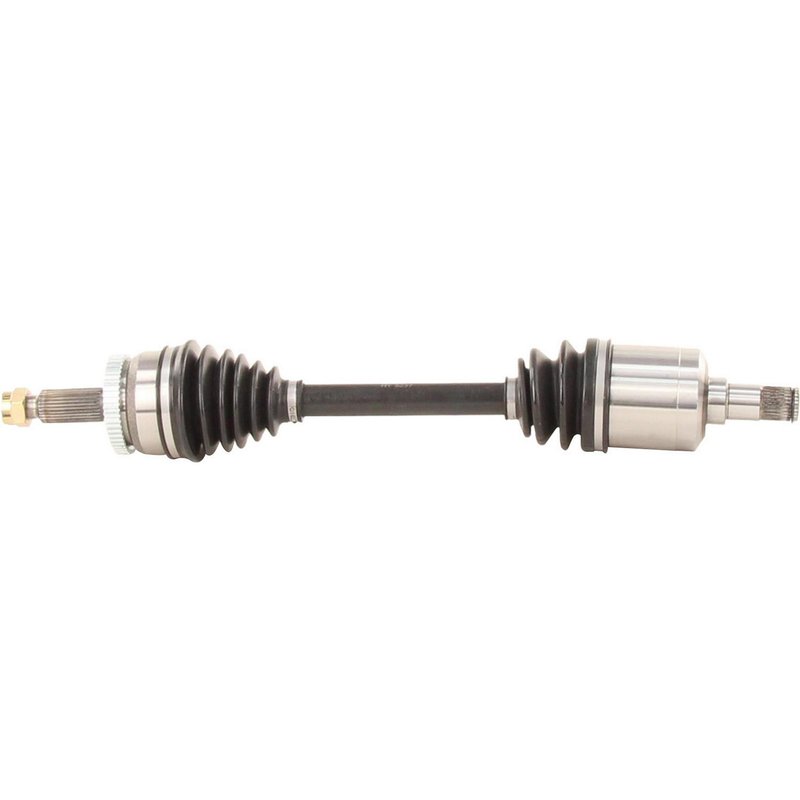

TrakMotive HY-8237 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8237

The TrakMotive CV Axle Shaft HY-8237 is engineered for reliable driveline performance in Hyundai Santa Fe and Kia Sorento vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Santa Fe and Kia Sorento models
• Includes ABS tone ring with 52 toothed ring teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Axle nut included with hex head, cotter pin locking, and M22*1.5 thread size
• Overall compressed length of 26.26 inches (667 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to restore driveline integrity. This line emphasizes quality materials and precise engineering, including features like ABS tone rings and durable neoprene boots, to maintain vehicle safety and performance. The HY-8237 model exemplifies these standards with its comprehensive design tailored for specific Hyundai and Kia applications.

Technical Specifications and Features

This CV axle shaft features a male inboard joint type with 28 splines and a conventional outboard joint with 30 splines, ensuring secure shaft connections. The included ABS tone ring is toothed with 52 teeth, supporting accurate anti-lock braking system functionality. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, 1 1/2 inches (37 mm) in length, and 6/7 inches (22 mm) in height, secured with a cotter pin locking mechanism for safety. The neoprene boot material offers resistance to wear and environmental damage, extending the service life of the axle shaft.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Santa Fe and Kia Sorento
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear or boot failure
• Prevents grease leakage and contamination with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin locking

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8237, verify compatibility with your specific Hyundai Santa Fe or Kia Sorento model year. Use proper torque specifications for the axle nut (M22*1.5 thread) and ensure the cotter pin is correctly installed to prevent loosening. Inspect the axle boots and joints during installation to confirm no damage occurred during handling. Proper alignment and secure connection of the male inboard and conventional outboard joints are essential for optimal driveline performance.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8237 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes an ABS tone ring and axle nut to provide a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure durability and fitment accuracy for Hyundai and Kia vehicles.
