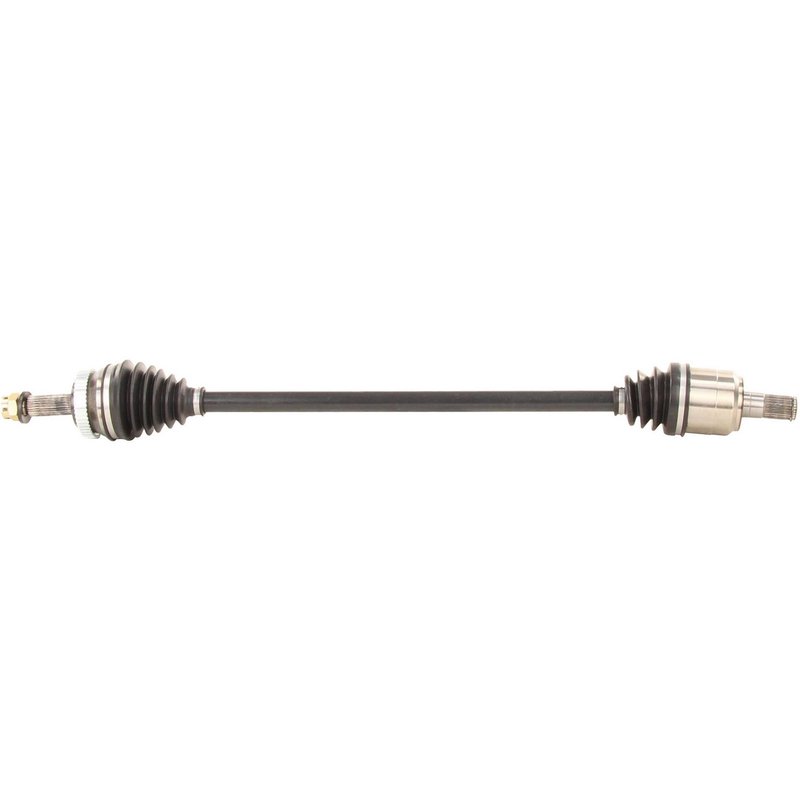

TrakMotive HY-8243 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8243 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 38.15 |
| Overall Compressed Length (mm) | 969 |
| Product line | CV Axle Shaft |
| Fits | Hyundai and Kia · 11 vehicles |
New. Freshly manufactured for dependable driveline replacement.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references Cardone New 66-3721, Cardone Reman 60-3721 and TrakMotive HY-8243 for the same application. See all 10.
CV Axle Shaft for Hyundai Sonata and Kia Optima
TrakMotive HY-8243 is a new CV axle shaft for front right applications on select Hyundai Sonata and Kia Optima models. It is built with a neoprene boot, a toothed ABS tone ring, and included axle nut details that support a direct replacement for the original driveline component.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8243
- Fits 2011-2014 Hyundai Sonata, front right
- Fits 2011-2013 Kia Optima, front right
- New axle shaft with 38.15 in. overall compressed length
- Neoprene boot material for driveline protection
- ABS tone ring included with 48 teeth
- Male inboard shaft connection and conventional outboard shaft connection
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
Product Details
TrakMotive HY-8243 is a CV axle shaft for the front right side of select Hyundai Sonata and Kia Optima vehicles. The axle uses a male inboard joint with 28 inboard splines and a conventional outboard joint with 27 outboard splines. Its 969 mm compressed length and included ABS tone ring help match the original axle configuration on supported applications. This part cross-references Cardone New 66-3721 and Cardone Reman 60-3721 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder during acceleration from axle wear
- Grease leakage from a damaged axle boot
- ABS warning concerns related to a damaged tone ring or axle assembly
- Excessive driveline play from a worn front right axle shaft
Installation Notes and Tips
Verify front right fitment by year, make, model, spline count, and axle length before installation. Confirm the axle nut thread size, hex size, and locking style match the vehicle specification. Inspect the hub, seals, and surrounding suspension components for wear before installing the new axle shaft. Because this application includes an ABS tone ring, make sure the sensor and ring area are clean and undamaged during service.
Quality Assurance
TrakMotive states that this axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company. HY-8243 is a new replacement part built for the listed Hyundai Sonata and Kia Optima applications.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2014 | Hyundai | Sonata | — | Automatic | 2.4L | L4 | GAS | Front Right | CV Axle Shaft |
| 2013 | Hyundai | Sonata | — | Automatic | 2.4L | L4 | GAS | Front Right | CV Axle Shaft |
| 2013 | Kia | Optima | LX | Automatic | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2013 | Kia | Optima | EX | — | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2013 | Kia | Optima | EX Luxury | — | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2012 | Hyundai | Sonata | GL | Automatic | 2.4L | L4 | GAS | Front Right | CV Axle Shaft |
| 2012 | Kia | Optima | LX | Automatic | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2012 | Kia | Optima | EX | Automatic | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2011 | Hyundai | Sonata | — | Automatic | 2.4L | L4 | GAS | Front Right | CV Axle Shaft |
| 2011 | Kia | Optima | LX | Automatic | 2.4L | L4 | — | Front Right | CV Axle Shaft |
| 2011 | Kia | Optima | EX | Automatic | 2.4L | L4 | — | Front Right | CV Axle Shaft |
