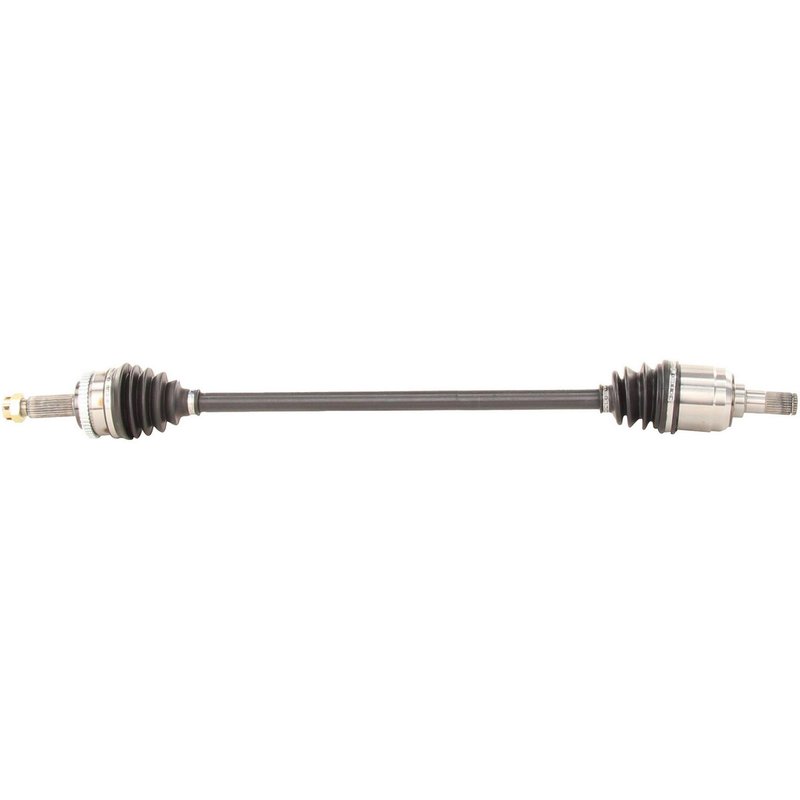

TrakMotive HY-8252 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8252 for Hyundai Elantra

The TrakMotive CV Axle Shaft HY-8252 is engineered specifically for Hyundai Elantra models, providing reliable driveline performance. Designed as a new replacement part, it ensures proper fit and function for your vehicle's front-wheel drive system.

• Compatible with Hyundai Elantra
• Part Number: HY-8252
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for durability and protection
• Axle nut included with cotter pin locking mechanism
• Overall compressed length of 37.05 inches (941 mm)
• Male inboard joint and conventional outboard joint types
• 27 splines on both inboard and outboard shafts

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components that meet OEM specifications. This CV Axle Shaft line includes features such as ABS tone rings and durable neoprene boots to maintain vehicle safety and performance. The HY-8252 model exemplifies this line by combining robust materials and exact fitment for Hyundai Elantra vehicles.

Technical Specifications and Features

This CV Axle Shaft features a 46-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The axle nut is a hex head type, measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inches) and a length of 37 mm (1 1/2 inches). It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism to ensure safe installation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Elantra
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Ensures secure wheel attachment with included axle nut and cotter pin

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8252 on a Hyundai Elantra, verify the axle nut torque specifications and ensure the cotter pin is properly installed to prevent loosening. Inspect the axle splines for damage before installation, as this part features 27 splines on both inboard and outboard shafts. Properly seat the neoprene boot to avoid contamination and premature joint failure.

Quality Assurance and Warranty

This CV Axle Shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. The inclusion of the ABS tone ring and durable materials reflects TrakMotive's commitment to quality. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
