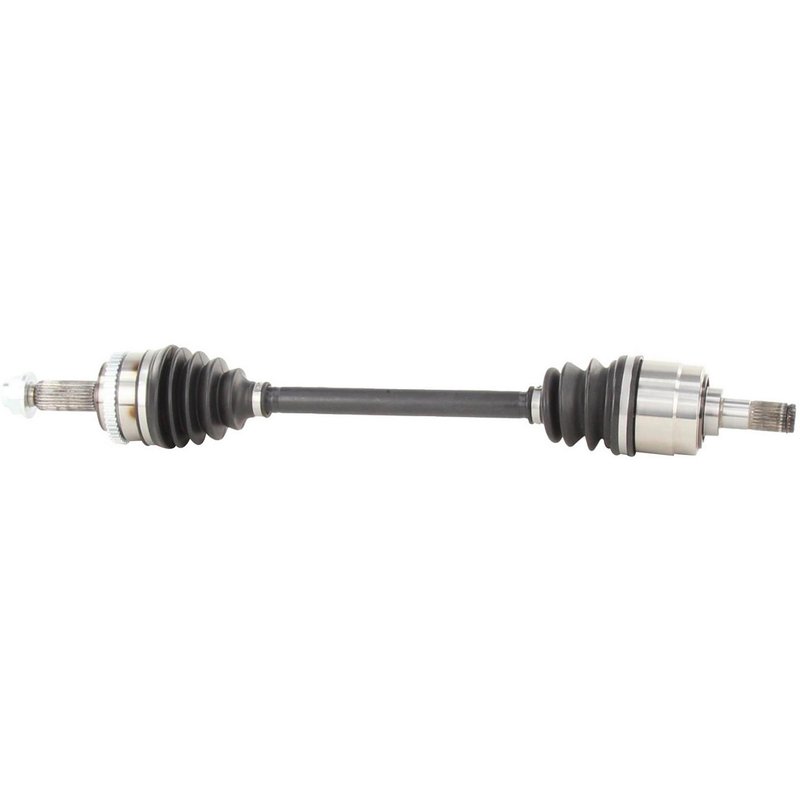

TrakMotive HY-8253 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8253 for Hyundai Veloster

The TrakMotive CV Axle Shaft HY-8253 is engineered specifically for Hyundai Veloster models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Hyundai Veloster
• Part Number: HY-8253
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for durability and protection
• Comes with a hex head axle nut (M22*1.5 thread size)
• Overall compressed length of 27.01 inches (686 mm)
• Inboard joint type: Male with 25 splines
• Outboard joint type: Conventional with 27 splines
• Axle nut locking type: Stake

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed for driveline and axle applications. This line emphasizes precise fitment and durability, featuring components such as ABS tone rings and neoprene boots to protect against wear and environmental damage. The HY-8253 model exemplifies these qualities, tailored for Hyundai Veloster vehicles requiring reliable CV axle replacement parts.

Technical Specifications and Features

The HY-8253 CV axle shaft includes a 46-tooth ABS ring with a toothed design, which is essential for accurate wheel speed sensor readings. The neoprene boot material offers resistance to heat and contaminants, extending the life of the joint. The axle nut included is a hex head type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and a length of 1 1/2 inches (37 mm), featuring a stake locking mechanism to ensure secure installation. The inboard joint is male type with 25 splines, while the outboard joint is conventional with 27 splines, providing a precise connection to the drivetrain components. The overall compressed length of 27.01 inches (686 mm) matches Hyundai Veloster specifications for proper fitment.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Hyundai Veloster
• Restoring proper ABS sensor function with included ABS tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing grease boot tears or leaks to prevent joint failure
• Resolving axle nut loosening issues with included stake locking nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8253, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly aligned with the wheel speed sensor for accurate readings. Inspect the neoprene boot for any damage during installation to maintain joint protection. It is recommended to use appropriate tools for removing and installing the hex head axle nut to avoid damage.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards for Hyundai Veloster vehicles. The inclusion of a neoprene boot and ABS tone ring reflects attention to durability and functionality. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliable performance in driveline applications.
