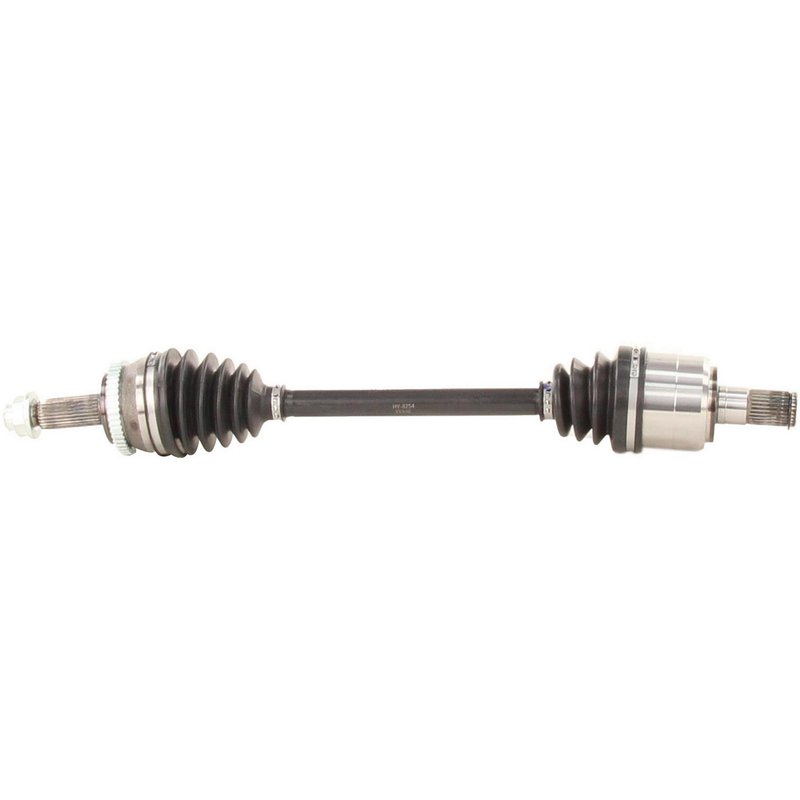

TrakMotive HY-8254 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8254 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 28 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.18 |
| Overall Compressed Length (mm) | 665 |
| Product line | CV Axle Shaft |
| Fits | Kia and Hyundai · 9 vehicles |
New replacement shaft. Built as a direct-fit CV axle shaft for straightforward service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references TrakMotive HY-8254, 5002V400 and 495002V400 for the same application. See all 4.
TrakMotive HY-8254 CV Axle Shaft
TrakMotive HY-8254 is a new front left CV axle shaft for select Hyundai and Kia applications. It is built for direct replacement service on the 2013-2015 Hyundai Veloster and 2014-2016 Kia Forte Koup and Forte5, with application-specific spline counts and ABS tone ring details.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8254
- Front left position
- New axle shaft assembly
- Inboard joint type: male
- Outboard joint type: conventional
- Inboard splines: 28
- Outboard splines: 27
- ABS tone ring included with 46-tooth toothed ring
- Neoprene boot material
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, stake locking type
- Overall compressed length: 26.18 in. (665 mm)
Product Details
TrakMotive HY-8254 is a CV axle shaft for front left driveline service on the Hyundai Veloster and Kia Forte platform. It is specified with a male inboard connection, conventional outboard connection, and the correct spline and length dimensions for the listed vehicles. The included toothed ABS ring supports ABS-equipped applications, and TrakMotive notes that ABS axles fit non-ABS applications unless otherwise noted. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
The TrakMotive CV Axle Shaft line focuses on replacement driveline components built for vehicle-specific fitment. HY-8254 follows that approach with matched dimensions and hardware details for service on 2013-2015 Hyundai Veloster, front left, and 2014-2016 Kia Forte Koup and Forte5, front left. If you are sourcing a replacement CV axle shaft for a Hyundai Veloster front left or a Kia Forte front left application, HY-8254 is the cataloged part number to verify.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Excessive play in the axle assembly
- Noise from a worn or damaged front left axle shaft
Installation Notes
Verify the vehicle’s year, model, position, and VIN details before installation, especially on the 2013 Hyundai Veloster VIN E (8th digit) application. Confirm spline count, axle nut thread size, and ABS ring requirements against the original part. Replace the axle nut if required by service procedure and torque all fasteners to the manufacturer’s specifications.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and that the company is ISO 9001:1007 and TS 16949:2009 certified. HY-8254 is a new replacement part built for the listed Hyundai and Kia front left applications.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2016 | Kia | Forte Koup | — | Automatic | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2016 | Kia | Forte5 | FWD | Automatic | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2015 | Hyundai | Veloster | — | Automatic | — | — | Front Left | VIN E (8th Digit); CV Axle Shaft |
| 2015 | Kia | Forte Koup | — | Automatic | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2015 | Kia | Forte5 | FWD | Automatic | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2014 | Hyundai | Veloster | — | Automatic | — | — | Front Left | VIN E (8th Digit); CV Axle Shaft |
| 2014 | Kia | Forte Koup | — | Automatic | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2014 | Kia | Forte5 | FWD | Automatic | 1.6L | L4 | Front Left | CV Axle Shaft |
| 2013 | Hyundai | Veloster | — | Automatic | — | — | Front Left | VIN E (8th Digit); CV Axle Shaft |
