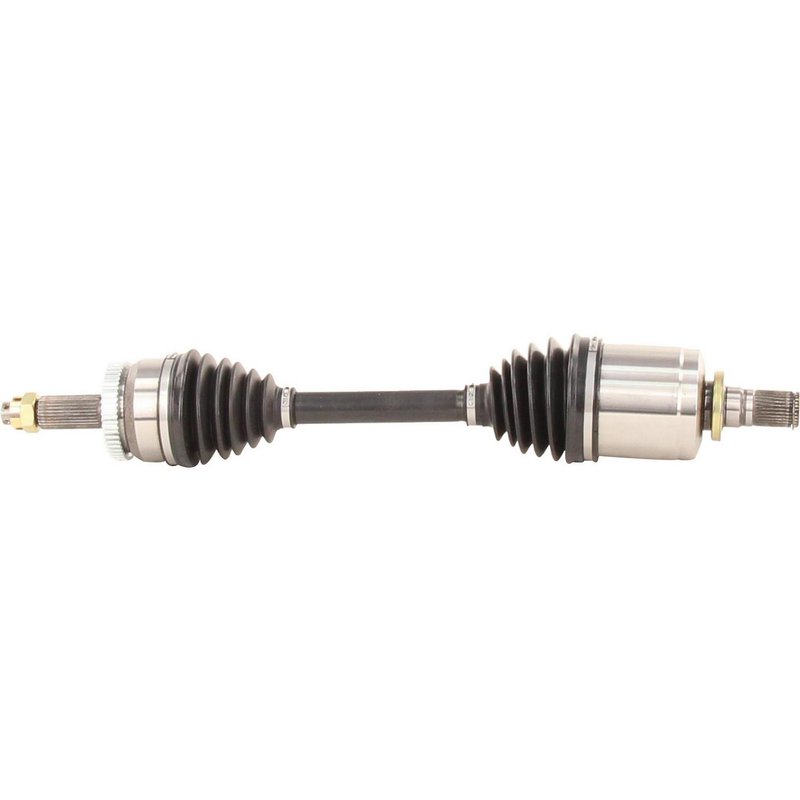

TrakMotive HY-8255 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8255 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 52 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 31 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.34 |
| Overall Compressed Length (mm) | 669 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
New axle shaft. Fresh replacement part for driveline and CV component service.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring and axle nut for a complete assembly.
Cross-references Cardone New 66-3541, Cardone Reman 60-3541 and TrakMotive HY-8255 for the same application. See all 9.
TrakMotive HY-8255 CV Axle Shaft for Veracruz
The TrakMotive HY-8255 is a new front left CV axle shaft for the 2007-2012 Hyundai Veracruz. Built for direct replacement service, it includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2007-2012 Hyundai Veracruz, front left
- New CV axle shaft for driveline and axle service
- 31 inboard splines and 30 outboard splines
- Overall compressed length: 26.34 in. (669 mm)
- Neoprene boot material for CV joint protection
- ABS tone ring included with 52-tooth toothed ring
- Axle nut included: M22 x 1.5 thread, 32 mm hex, cotter pin lock
- TrakMotive HY-8255 cross-references OE-style replacement numbers for the same application
Product Details
TrakMotive CV Axle Shaft HY-8255 is part of the brand’s CV Axle Shaft line and is built for the front left position on the Hyundai Veracruz. It uses a male inboard shaft connection, a conventional outboard joint type, and a neoprene boot to support the CV joint assembly. The axle is supplied new, not remanufactured, and is specified with a toothed ABS ring and tone ring included for the listed fitment. This part is a direct-fit driveline replacement for 2007-2012 Hyundai Veracruz front left service work, and HY-8255 is also referenced by interchange number HY-8255.
This part cross-references Cardone New 66-3541 and Cardone Reman 60-3541 for the same application.
Common Replacement Issues
- Clicking or popping during turns from worn CV joints
- Vibration under acceleration caused by a failing axle shaft
- Torn or leaking CV boot conditions
- ABS warning concerns related to a damaged tone ring
- Excessive drivetrain play at the front left axle position
Installation Notes
Verify spline count, axle length, nut thread size, and ABS ring configuration before installation. This axle uses a 32 mm hex axle nut with M22 x 1.5 thread and cotter pin locking. Confirm the vehicle is a 2007-2012 Hyundai Veracruz, front left, and compare the removed part to the listed specifications before assembly.
Quality Assurance
TrakMotive states that this CV axle shaft is backed by a limited lifetime warranty and produced by an ISO 9001:1007 and TS 16949:2009 certified company.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Hyundai | Veracruz | Front Left | CV Axle Shaft |
| 2011 | Hyundai | Veracruz | Front Left | CV Axle Shaft |
| 2010 | Hyundai | Veracruz | Front Left | CV Axle Shaft |
| 2009 | Hyundai | Veracruz | Front Left | CV Axle Shaft |
| 2008 | Hyundai | Veracruz | Front Left | CV Axle Shaft |
| 2007 | Hyundai | Veracruz | Front Left | CV Axle Shaft |
