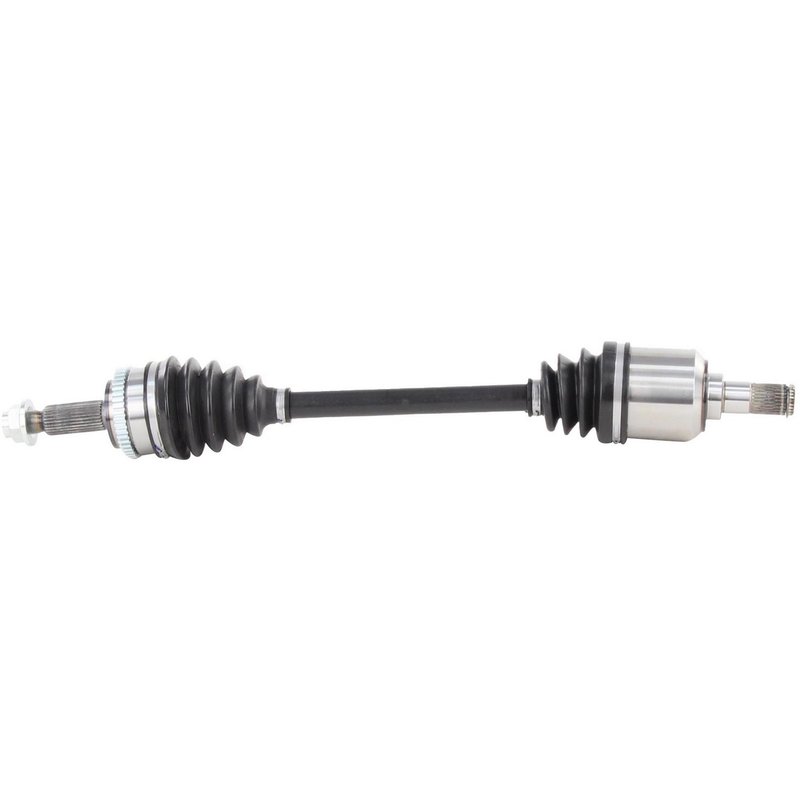

TrakMotive HY-8258 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8258

The TrakMotive CV Axle Shaft HY-8258 is engineered for reliable driveline performance in select Hyundai and Kia vehicles. Designed to meet OEM specifications, this new CV axle shaft ensures smooth power transfer and durability for your Hyundai Forte, Forte5, Forte Koup, and Kia Veloster models.

• Compatible with Hyundai Forte, Forte5, Forte Koup, and Kia Veloster
• Includes a neoprene boot for enhanced protection
• Equipped with a 46-tooth ABS ring and included tone ring
• Comes with a hex head axle nut (M22*1.5 thread size) featuring a stake locking type
• Overall compressed length of 26.3 inches (668 mm)
• Inboard and outboard joints with 27 splines each for secure fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components designed to restore driveline integrity. This line emphasizes precise fitment and quality materials, such as neoprene boots and robust joint designs, to maintain vehicle handling and safety. The HY-8258 model exemplifies these standards with its comprehensive features tailored for Hyundai and Kia vehicles.

Technical Specifications and Features

This CV axle shaft features a toothed ABS ring with 46 teeth and includes the ABS tone ring, ensuring compatibility with your vehicle's anti-lock braking system. The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size, 1 inch (24 mm) height, and 1 1/2 inch (37 mm) length, secured by a stake locking mechanism to prevent loosening. Both inboard and outboard joints have 27 splines, with the inboard joint designed as a male type and the outboard joint as conventional, providing a secure and precise connection. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Forte, Forte5, Forte Koup, and Kia Veloster
• Addresses issues such as clicking noises during turns caused by joint wear
• Eliminates vibrations or shuddering from axle imbalance or damage
• Prevents grease leakage by replacing torn or cracked boots
• Restores proper ABS sensor function with included tone ring

Installation Notes and Tips

Ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Verify the correct orientation of the inboard and outboard joints during installation. Inspect the surrounding suspension components for wear to avoid premature failure. The included neoprene boot should be checked for proper seating to prevent contamination.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8258 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes the axle nut and ABS tone ring for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and fitment.
