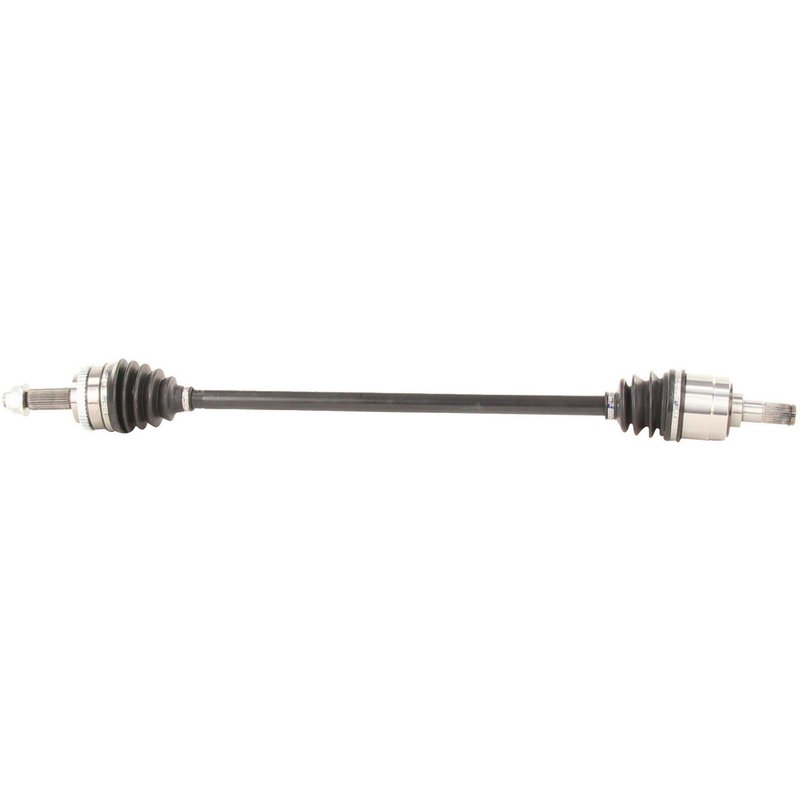

TrakMotive HY-8259 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8259 for Hyundai Veloster

The TrakMotive CV Axle Shaft HY-8259 is engineered specifically for Hyundai Veloster models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Hyundai Veloster
• Part Number: HY-8259
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut included with stake locking type
• Overall compressed length of 37.95 inches (964 mm)
• Male inboard joint and conventional outboard joint types

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity axle components designed to meet or exceed OEM specifications. This line emphasizes precise engineering, including correct spline counts and joint types, to ensure smooth power transfer and long service life. The HY-8259 model features a neoprene boot and a toothed ABS ring, reflecting the line's attention to durability and compatibility with modern vehicle safety systems.

Technical Specifications and Features

This CV axle shaft features a 46-tooth ABS ring with a toothed design, which is included to maintain accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses a stake locking mechanism to secure the nut firmly in place. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. The inboard joint is male type with 25 splines, while the outboard joint is conventional with 27 splines, ensuring proper connection and torque transfer. The overall compressed length of 37.95 inches (964 mm) matches Hyundai Veloster specifications for direct replacement.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Veloster
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and joint contamination with durable neoprene boot
• Secures wheel hub connection with included stake-lock axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8259, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct fitment on Hyundai Veloster models, but always confirm compatibility with your vehicle's year and trim.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8259 is a new, OEM-quality replacement part manufactured to meet strict industry standards. It includes all necessary components such as the axle nut and ABS tone ring for a complete installation. While specific warranty details are not provided here, TrakMotive products typically come with a limited warranty against defects in materials and workmanship. Consult the product documentation or supplier for exact warranty terms.
