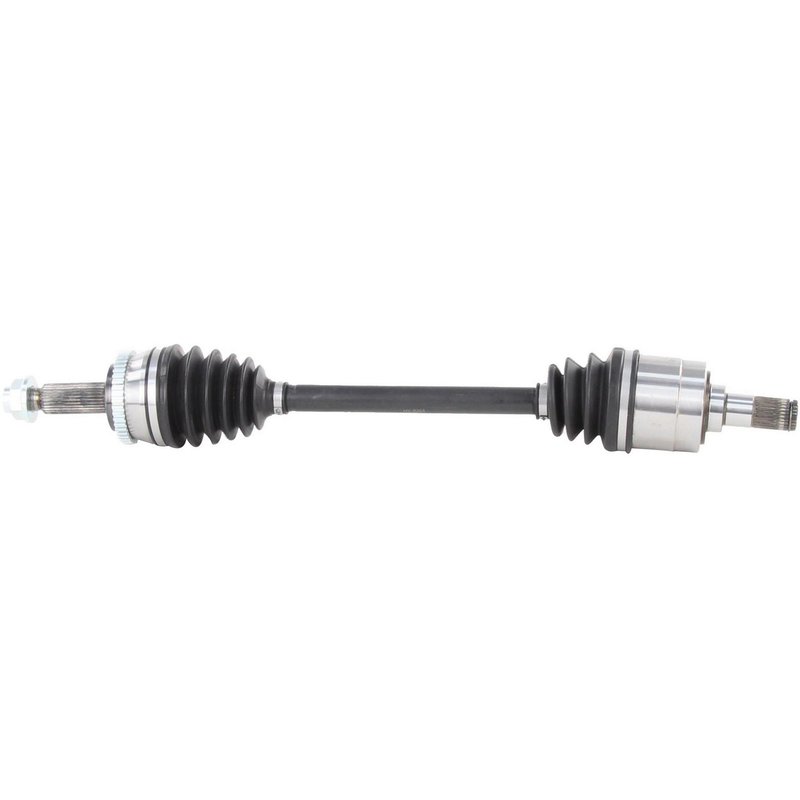

TrakMotive HY-8261 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8261 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 26.56 |
| Overall Compressed Length (mm) | 674.5 |
| Product line | CV Axle Shaft |
| Fits | Kia · 2 vehicles |
OE-style replacement. New CV axle shaft built for straightforward installation.
Neoprene boot. Durable material helps protect the joint from wear.
ABS tone ring included. Toothed ring supports ABS-equipped applications.
Cross-references TrakMotive HY-8261, 495011M510 and NCV75064 for the same application. See all 3.
CV Axle Shaft for 2010 Kia Forte Front Left
TrakMotive HY-8261 is a new CV axle shaft for the front left position on select 2010 Kia Forte and 2010 Kia Forte Koup applications. Built as a direct driveline replacement, it includes the axle nut and ABS tone ring details needed for the listed fitment.
Key Features
- Fits 2010 Kia Forte, front left
- Fits 2010 Kia Forte Koup, front left
- New CV axle shaft from TrakMotive
- Overall compressed length: 26.56 in. (674.5 mm)
- 27 inboard splines and 27 outboard splines
- Neoprene boot material for driveline protection
- ABS tone ring included with 46-tooth toothed ring
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Inboard joint type: male; outboard joint type: conventional
Product Details
TrakMotive HY-8261 is a CV axle shaft for front left driveline service on the 2010 Kia Forte and 2010 Kia Forte Koup. It is built as a new replacement axle with a male inboard connection, conventional outboard joint, and a compressed length of 26.56 inches to match the listed application. The axle includes a toothed ABS ring with 46 teeth and an ABS tone ring, making it suitable for ABS-equipped use where specified. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration or shudder during acceleration
- Grease leakage from a damaged axle boot
- Noise from a worn or damaged front left axle assembly
- ABS signal issues related to a damaged tone ring on the axle
Installation Notes and Tips
Verify the vehicle’s front left application, spline count, axle length, and ABS configuration before installation. Inspect the hub, seals, and surrounding suspension components for wear, and torque the included axle nut to the vehicle manufacturer’s specification using the correct 32 mm hex size. Because this axle uses a stake-style nut, follow the proper staking procedure after tightening.
Quality Assurance
TrakMotive identifies this axle as a new part and notes ISO 9001:1007 and TS 16949:2009 certified manufacturing. The manufacturer also states a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2010 | Kia | Forte | Automatic | 2.0L | L4 | Front Left | CV Axle Shaft |
| 2010 | Kia | Forte Koup | Automatic | 2.0L | L4 | Front Left | CV Axle Shaft |
