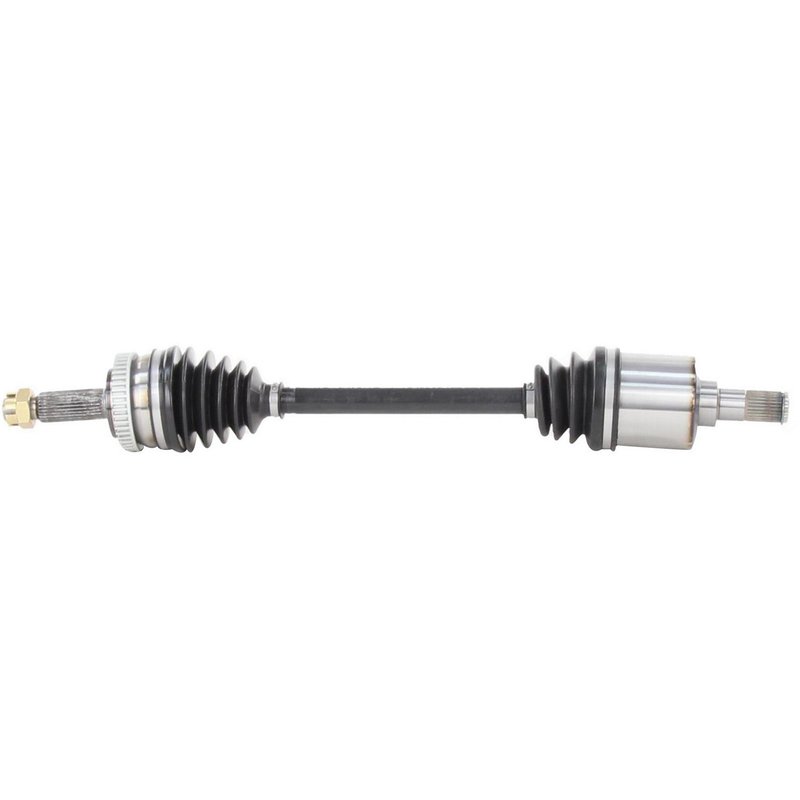

TrakMotive HY-8263 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8263

The TrakMotive CV Axle Shaft HY-8263 is designed specifically for Kia Magentis and Optima models, providing reliable driveline performance. This new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Kia Magentis and Optima
• Includes ABS tone ring with 48 toothed ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 26.65 inches (677 mm)
• 27 splines on both inboard and outboard joints

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering precise driveline components engineered for direct replacement applications. The CV Axle Shaft line includes shafts with integrated ABS tone rings and durable neoprene boots to maintain optimal performance and longevity. The HY-8263 model exemplifies this line by combining quality materials and exact fitment specifications for Kia vehicles.

Technical Specifications and Features

This CV axle shaft features a 48-tooth ABS ring with a toothed design, ensuring accurate wheel speed sensor readings. The neoprene boot material offers resistance to wear and environmental factors, protecting the joint from contaminants. Both the inboard and outboard joints have 27 splines, with the inboard joint utilizing a male connection style and the outboard joint a conventional type. The included axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, 1 1/2 inches (37 mm) in length, and 22 mm in height, secured with a cotter pin locking mechanism and threaded M22x1.5.

Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Magentis and Optima
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage and contamination with durable neoprene boots
• Ensures secure wheel attachment with included locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8263, verify compatibility with your Kia Magentis or Optima model year. Use proper torque specifications for the axle nut and ensure the cotter pin is correctly installed to prevent loosening. Inspect the axle shaft splines and joints for proper engagement during installation. It is recommended to replace the axle nut with the included new nut to maintain secure fastening.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8263 is a new, direct replacement part manufactured to meet OEM standards. It includes an ABS tone ring for accurate sensor operation and is constructed with durable materials such as neoprene boots and high-grade steel components. While specific warranty details are not provided, TrakMotive parts typically adhere to industry quality standards for driveline components.
