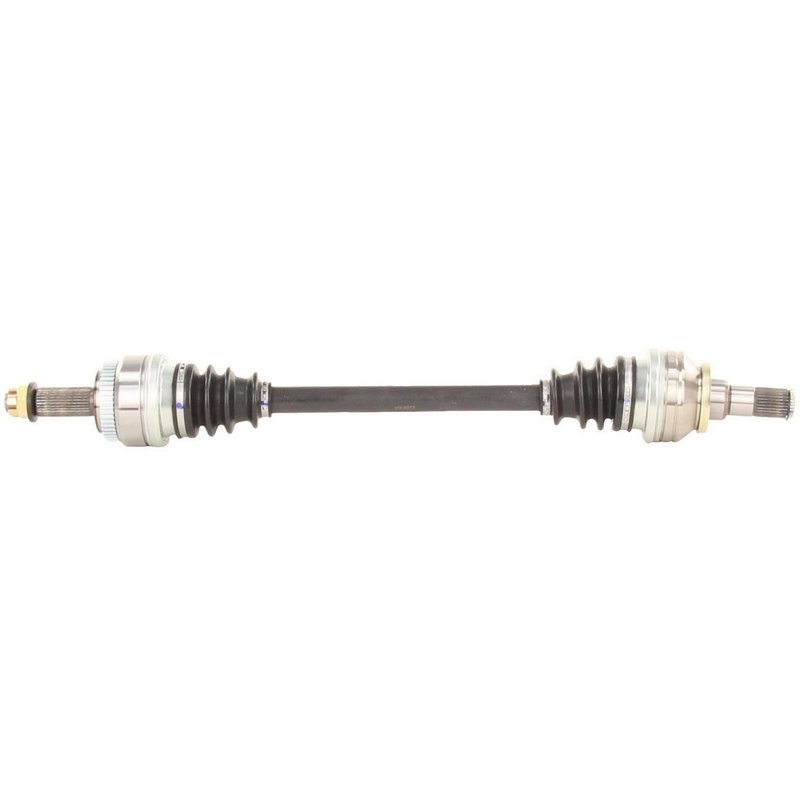

TrakMotive HY-8272 CV Axle Shaft - Rear Left

Overview of TrakMotive CV Axle Shaft HY-8272

The TrakMotive CV Axle Shaft HY-8272 is engineered for Hyundai Genesis and Genesis Coupe models, providing reliable driveline performance. Designed with precision, this new CV axle shaft ensures proper fitment and durability for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Genesis and Genesis Coupe
• Includes ABS tone ring with 47 toothed ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut featuring cotter pin locking
• Overall compressed length of 31.26 inches (794 mm)
• Inboard joint type: Male with 28 splines
• Outboard joint type: Conventional with 30 splines

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This line emphasizes precise fitment and robust construction, including features like ABS tone rings and durable neoprene boots, which help maintain optimal driveline function and vehicle safety.

Technical Specifications and Features

The HY-8272 CV axle shaft includes a 47-tooth ABS ring that is toothed and integrated into the assembly, ensuring accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses an M22 x 1.5 thread size and locks securely with a cotter pin to prevent loosening during operation. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joint from contaminants. The inboard joint is male type with 28 splines, while the outboard joint is conventional with 30 splines, providing a secure connection to the drivetrain components. The overall compressed length of 31.26 inches (794 mm) ensures proper fitment within the vehicle's suspension geometry.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Genesis and Genesis Coupe
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates vibrations or clicking noises caused by failing CV joints
• Prevents grease leaks and joint contamination with durable neoprene boots
• Secures wheel hub connection with included cotter pin locking axle nut

Installation Notes and Tips

• Verify vehicle compatibility with Hyundai Genesis or Genesis Coupe before installation
• Ensure proper torque specifications for the M22 x 1.5 axle nut and secure cotter pin locking
• Inspect surrounding suspension components during installation for wear or damage
• Use appropriate tools for hex head axle nut (1 1/4 inch or 32 mm socket)
• Check ABS sensor wiring and connectors for proper alignment with the toothed ABS ring

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8272 is a new, not remanufactured, component built to meet OEM standards for fit and function. It includes an ABS tone ring and comes with the necessary axle nut for secure installation. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and performance in Hyundai Genesis and Genesis Coupe vehicles.
