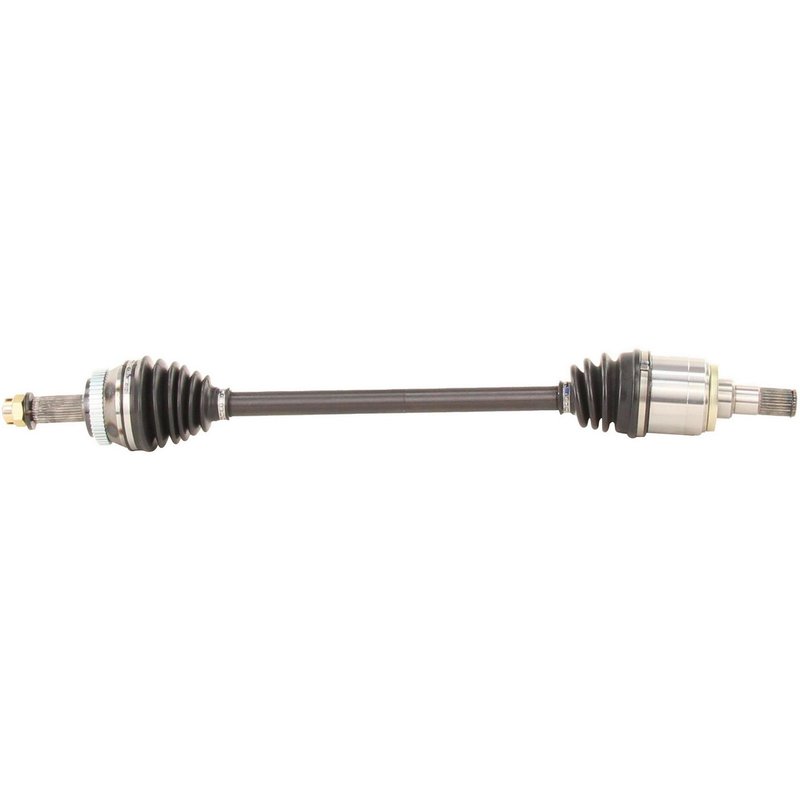

TrakMotive HY-8274 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft HY-8274 for Hyundai Genesis Coupe

The TrakMotive CV Axle Shaft HY-8274 is engineered specifically for Hyundai Genesis Coupe models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle.

• Compatible with Hyundai Genesis Coupe
• Part Number: HY-8274
• Includes ABS tone ring with 47 teeth for accurate wheel speed sensing
• Neoprene boot material for enhanced durability and protection
• Comes with a hex head axle nut featuring cotter pin locking
• Overall compressed length of 33.31 inches (846 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes shafts with precise spline counts and connection styles to match vehicle requirements. The HY-8274 model features a male inboard joint and a conventional outboard joint, ensuring compatibility with Hyundai Genesis Coupe drivetrains.

Technical Specifications and Features

This CV axle shaft features a 28-spline male inboard joint and a 30-spline conventional outboard joint, providing secure and efficient power transfer. The included ABS tone ring has 47 teeth and a toothed design, which is essential for accurate ABS sensor readings. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The axle nut is a hex type with a 1 1/4 inch (32 mm) hex size, 6/7 inch (22 mm) height, and 1 1/2 inch (37 mm) length, secured with a cotter pin locking mechanism to prevent loosening during operation.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Genesis Coupe
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Fixes axle vibration or clicking noises during turns
• Restores proper driveline function after axle nut or joint failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8274, ensure the axle nut is torqued to manufacturer specifications and secured with the included cotter pin to maintain safety. Verify the ABS tone ring is properly seated to avoid sensor malfunctions. Use appropriate tools for the 1 1/4 inch hex axle nut and inspect the neoprene boot for any damage during installation. Proper alignment of the male inboard joint and conventional outboard joint is critical for smooth operation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet or exceed OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and performance. While specific warranty details are not provided here, TrakMotive typically offers coverage against manufacturing defects. Always consult product documentation or manufacturer resources for warranty information.
