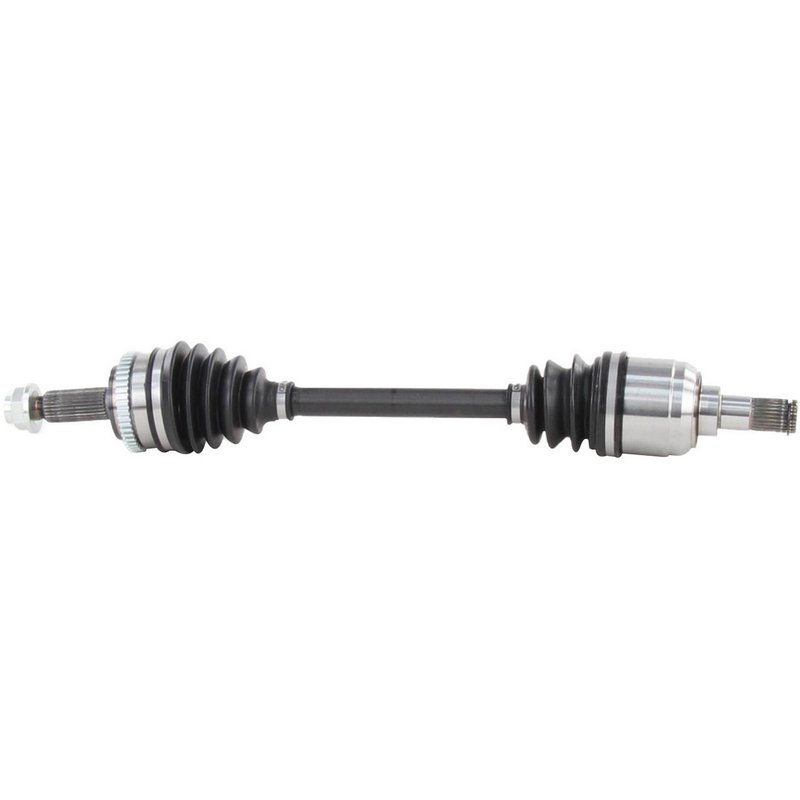

TrakMotive HY-8283 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8283 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 46 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Conventional |
| Overall Compressed Length (in) | 24.96 |
| Overall Compressed Length (mm) | 634 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps protect the joint from wear and contamination.
ABS tone ring included. Ready for applications that use a toothed ring.
Cross-references TrakMotive HY-8283, 5002V200 and 495002V200 for the same application. See all 6.
Front Left CV Axle Shaft for Veloster
TrakMotive HY-8283 is a new CV axle shaft for the front left position on select Hyundai Veloster applications. It is built with a neoprene boot, 27 inboard splines, 27 outboard splines, and a 24.96 in. overall compressed length for direct driveline service on the listed vehicles.
Fits 2012 Hyundai Veloster, front left. Fits 2013-2017 Hyundai Veloster, front left, VIN D (8th Digit).
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8283
- New axle shaft assembly
- Front left application for select Hyundai Veloster models
- Neoprene boot material for CV joint protection
- Male inboard shaft connection style
- Conventional outboard joint type
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- ABS tone ring included with 46-tooth toothed ring
- Overall compressed length: 24.96 in. (634 mm)
Product Details
TrakMotive HY-8283 is a front left CV axle shaft engineered for Hyundai Veloster driveline repair where the original axle has worn joints, torn boots, vibration, or clicking during turns. This axle uses a 27-spline inboard and 27-spline outboard configuration, along with a conventional outboard joint and male inboard connection, to match the listed fitment. The included ABS tone ring and 46-tooth toothed ring support applications that use wheel speed sensing at the axle.
TrakMotive’s CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, and this HY-8283 axle is a direct-service option for the specified Hyundai Veloster front left applications. This part cross-references HY10569 for the same application.
Common Problems This Part Can Address
- Clicking or popping noises while turning
- Vibration during acceleration
- Grease leakage from a damaged CV boot
- Excessive play from worn CV joints
- ABS warning concerns related to a damaged tone ring or axle sensor interface
Installation Notes
- Verify the vehicle’s 8th digit VIN for 2013-2017 Hyundai Veloster fitment before ordering.
- Confirm front left placement and axle length against the original shaft.
- Inspect axle seals, hub splines, and suspension components during replacement.
- Use the included axle nut with the correct 32 mm hex size and M22 x 1.5 thread specification.
- Follow factory torque procedures and axle nut staking requirements during installation.
Quality Assurance
TrakMotive lists this CV axle shaft as a new part from an ISO 9001:1007 and TS 16949:2009 certified company. HY-8283 also carries a limited lifetime warranty.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Hyundai | Veloster | Automatic Dual Clutch | Front Left | VIN D (8th Digit); CV Axle Shaft |
| 2016 | Hyundai | Veloster | Automatic Dual Clutch | Front Left | VIN D (8th Digit); CV Axle Shaft |
| 2015 | Hyundai | Veloster | Automatic Dual Clutch | Front Left | VIN D (8th Digit); CV Axle Shaft |
| 2014 | Hyundai | Veloster | Automatic Dual Clutch | Front Left | VIN D (8th Digit); CV Axle Shaft |
| 2013 | Hyundai | Veloster | Automatic Dual Clutch | Front Left | VIN D (8th Digit); CV Axle Shaft |
| 2012 | Hyundai | Veloster | Automatic Dual Clutch | Front Left | CV Axle Shaft |
