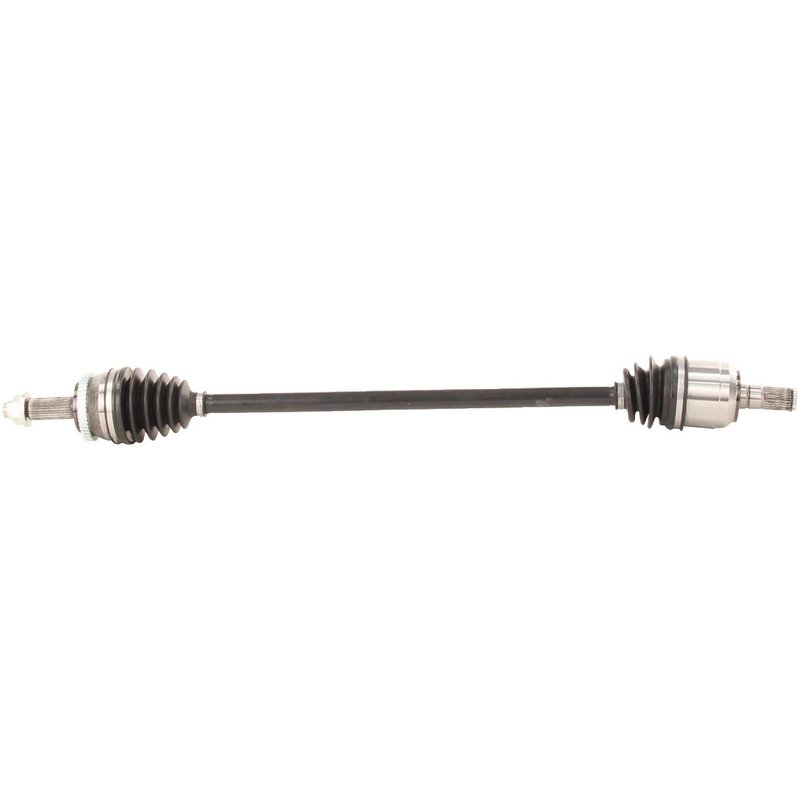

TrakMotive HY-8284 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8284 for Kia Forte Models

The TrakMotive CV Axle Shaft HY-8284 is engineered for reliable driveline performance in Kia Forte, Forte5, and Forte Koup vehicles. Designed as a new replacement part, it ensures precise fitment and durability for your vehicle's front-wheel-drive system.

• Compatible with Kia Forte, Forte5, and Forte Koup models
• Includes a neoprene boot for enhanced joint protection
• Features a 46-tooth ABS ring with a toothed design and included tone ring
• Equipped with a hex head axle nut (32 mm hex size) with stake locking
• Overall compressed length of 36.71 inches (932.5 mm) for exact fit

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components that meet OEM specifications. This CV Axle Shaft line emphasizes quality materials such as neoprene boots and precise spline counts to maintain driveline integrity. The HY-8284 part exemplifies this line by combining robust construction with accurate fitment for Kia vehicles.

Technical Specifications and Features

This CV Axle Shaft features a male inboard joint type with 27 splines and a conventional outboard joint also with 27 splines, ensuring smooth power transfer. The included ABS tone ring with 46 teeth supports vehicle stability control systems. The axle nut is a 1 1/4 inch (32 mm) hex head with a 1 1/2 inch (37 mm) length and stake locking type, designed to secure the axle firmly in place. The neoprene boot material provides resistance to wear and environmental factors, extending the life of the joint.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Kia Forte, Forte5, and Forte Koup
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boot
• Secures axle assembly with included locking axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8284, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain sensor accuracy. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on compatible Kia Forte models, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8284 is a new, remanufactured-free component built to meet or exceed OEM standards. It includes the axle nut and ABS tone ring for a complete replacement solution. While specific warranty details are not provided, TrakMotive products typically undergo rigorous quality control to ensure reliability and performance in driveline applications.
