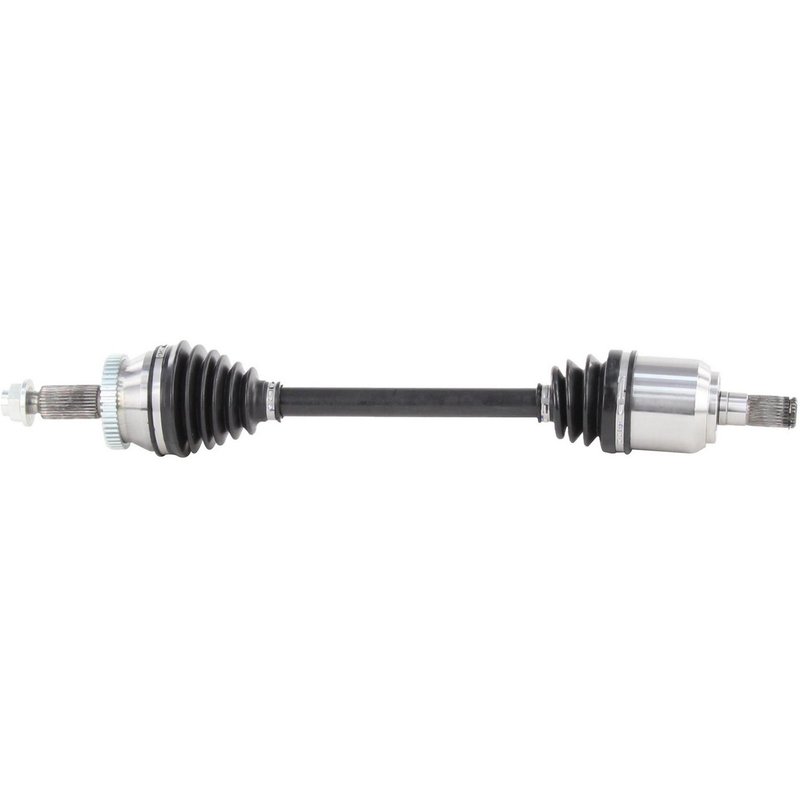

TrakMotive HY-8288 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8288 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.42 |
| Overall Compressed Length (mm) | 671 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 5 vehicles |
New CV axle shaft. A direct replacement for restoring smooth driveline operation.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring and 48 teeth for ABS applications.
Cross-references TrakMotive HY-8288, 500C2210 and 49500C2210 for the same application. See all 5.
CV Axle Shaft for Hyundai Sonata
TrakMotive HY-8288 is a new front left CV axle shaft for select Hyundai Sonata applications. It is built with a neoprene boot, a male inboard connection, and a conventional outboard joint to support driveline operation in the specified fitments.
This CV axle shaft fits 2015 Hyundai Sonata, front left; 2016-2018 Hyundai Sonata, front left; and 2019 Hyundai Sonata, front left. It is a direct replacement for the listed Hyundai Sonata applications and is identified by part number HY-8288.
Key Features
- Brand: TrakMotive CV Axle Shaft
- Part number: HY-8288
- Front left axle shaft for select Hyundai Sonata models
- New construction with neoprene boot material
- Male inboard shaft connection style
- Conventional outboard joint type with spline connection
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Overall compressed length: 26.42 in. (671 mm)
- Inboard splines: 27; outboard splines: 30
Product Details
TrakMotive HY-8288 is part of the CV Axle Shaft line for driveline and axle service, built for replacement use in the front left position on the Hyundai Sonata. The axle includes an ABS tone ring and is listed for ABS-equipped applications, while the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted. TrakMotive states that its products are produced under ISO 9001:1007 and TS 16949:2009 certified quality systems.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Replacement Uses
- Restoring front-wheel drive power transfer after axle wear
- Replacing a clicking or binding CV axle on the front left side
- Addressing torn boot or grease loss on a Hyundai Sonata axle assembly
- Correcting vibration or noise related to a worn driveline shaft
- Replacing a damaged axle shaft with the correct spline and ABS configuration
Installation Notes and Tips
Verify the vehicle’s year, model, and front left position before ordering. For 2015 Hyundai Sonata, this axle is listed for VIN F (8th digit); for 2016-2019 Hyundai Sonata applications, use the fitment shown above. Confirm axle nut thread size, spline count, and ABS ring requirements against the original part before installation.
Quality Assurance
TrakMotive identifies HY-8288 as a new replacement axle shaft backed by a limited lifetime warranty. The brand also notes ISO 9001:1007 and TS 16949:2009 certified manufacturing standards.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2019 | Hyundai | Sonata | 2.4L | L4 | — | Front Left | Standard Duty Replacement; CV Axle Shaft |
| 2018 | Hyundai | Sonata | 2.4L | L4 | — | Front Left | CV Axle Shaft |
| 2017 | Hyundai | Sonata | 2.4L | L4 | — | Front Left | CV Axle Shaft |
| 2016 | Hyundai | Sonata | 2.4L | L4 | — | Front Left | CV Axle Shaft |
| 2015 | Hyundai | Sonata | 2.4L | L4 | GAS | Front Left | VIN F (8th digit); CV Axle Shaft |
