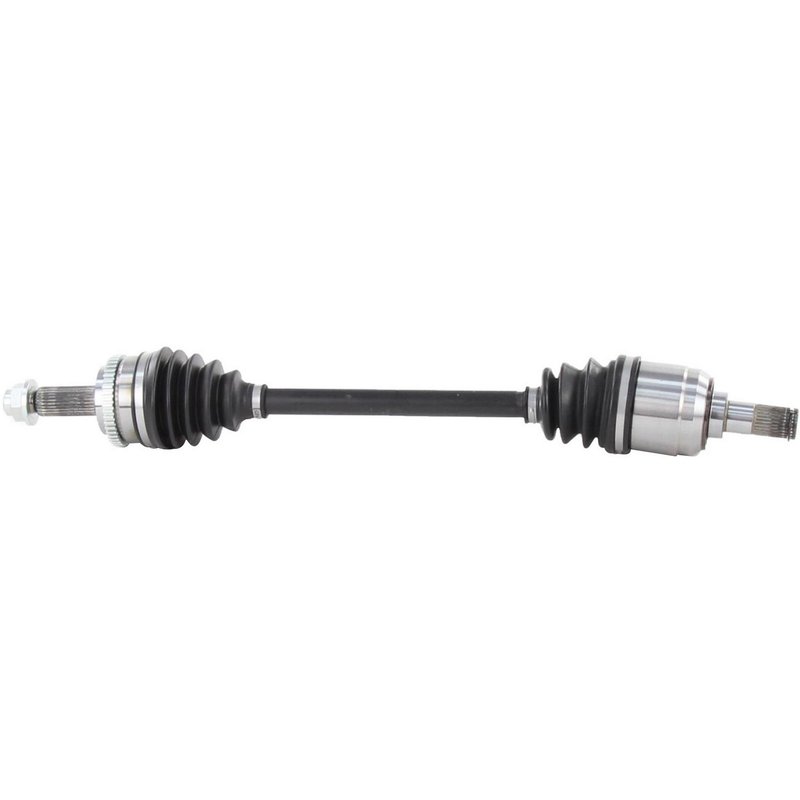

TrakMotive HY-8292 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8292

The TrakMotive CV Axle Shaft HY-8292 is engineered for reliable driveline performance in select Hyundai and Kia models. Designed to meet OEM specifications, this new CV axle shaft ensures proper fit and function for vehicles like the Hyundai Elantra and Kia Forte series.

• Compatible with Hyundai Elantra, Elantra Coupe, Elantra GT, Kia Forte, Forte5, and Forte Koup
• Includes a neoprene boot for enhanced durability and protection
• Equipped with a 46-tooth ABS ring and toothed ABS tone ring included
• Axle nut features a hex head type with a 1 1/4 inch (32 mm) hex size and stake locking mechanism
• Overall compressed length of 26.85 inches (682 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering new, high-quality constant velocity axle components designed to restore driveline integrity. This line emphasizes exact fitment and durability, featuring components such as neoprene boots and ABS tone rings to maintain vehicle safety systems. The HY-8292 model is part of this line, offering a balance of OEM compatibility and robust construction for Hyundai and Kia vehicles.

Technical Specifications and Features

This CV axle shaft includes a male inboard joint type with 27 splines on both the inboard and outboard ends, ensuring secure shaft connection and smooth power transfer. The outboard joint is conventional with a spline connection style. The included axle nut is M22x1.5 thread size, 1 1/2 inches (37 mm) in length, and uses a stake locking type to prevent loosening during operation. The neoprene boot material provides resistance to wear and environmental factors, extending the service life of the joint.

Applications and Problem Resolution

• Replaces worn or damaged CV axle shafts on Hyundai Elantra and Kia Forte models
• Addresses issues such as axle vibration, clicking noises during turns, and grease leaks from torn boots
• Restores proper ABS sensor function with included toothed ABS tone ring
• Eliminates axle nut loosening problems with stake locking nut design

Installation Notes and Tips

• Verify vehicle compatibility with Hyundai Elantra or Kia Forte model and year before installation
• Ensure proper torque specifications are followed for the M22x1.5 axle nut with hex head
• Inspect surrounding suspension components during installation for additional wear
• Use appropriate tools for the 1 1/4 inch (32 mm) hex axle nut to avoid damage

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8292 is a new, not remanufactured, component built to meet or exceed OEM standards. It includes a neoprene boot and ABS tone ring to maintain vehicle safety and performance. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure reliability and durability in driveline applications.
