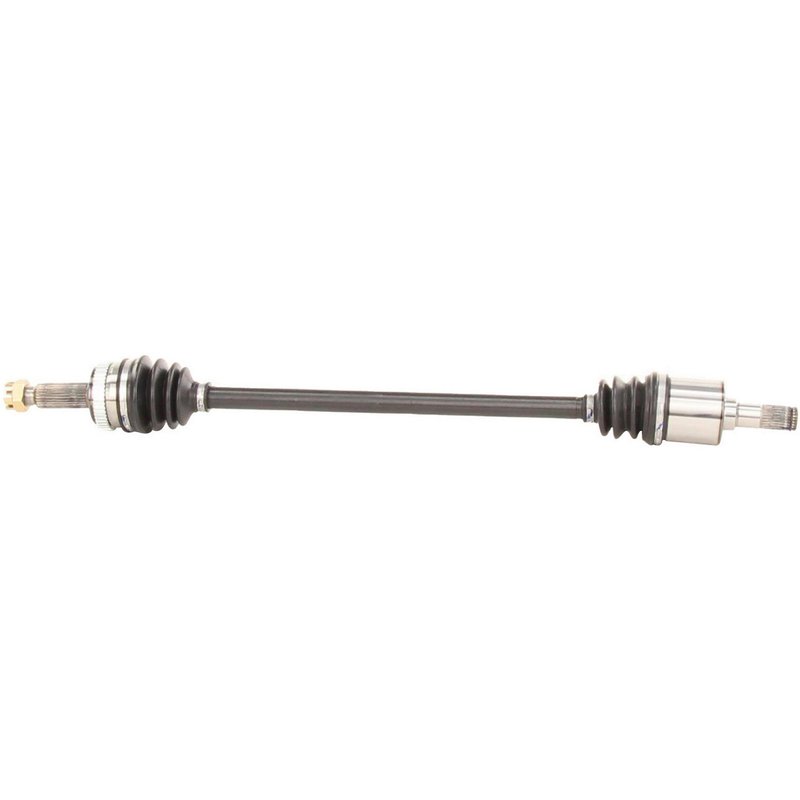

TrakMotive HY-8296 CV Axle Shaft - Rear Right

Overview of TrakMotive CV Axle Shaft HY-8296 for Hyundai Tucson

The TrakMotive CV Axle Shaft HY-8296 is engineered specifically for Hyundai Tucson models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's front-wheel or all-wheel drive system.

• Compatible with Hyundai Tucson vehicles
• Includes ABS tone ring with 48 toothed abs ring teeth
• Neoprene boot material for enhanced durability
• Hex head axle nut with cotter pin locking mechanism included
• Overall compressed length of 32.17 inches (817 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line features new CV axle shafts built with precise spline counts and robust joint types to ensure smooth power transfer and long service life. The HY-8296 model includes both inboard and outboard joints engineered for Hyundai Tucson applications, maintaining proper axle alignment and vehicle handling.

Technical Specifications and Features

The HY-8296 CV axle shaft includes a 48-tooth ABS ring with a toothed design and an included ABS tone ring, which supports accurate wheel speed sensor readings for anti-lock braking systems. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It features a cotter pin locking type to secure the nut in place. The neoprene boot material offers resistance to wear and environmental factors, protecting the CV joints. The inboard joint is a male type with 25 splines, while the outboard joint is conventional with 27 splines, both designed for spline shaft connections. The overall compressed length of the axle shaft is 32.17 inches (817 mm), ensuring proper fitment within the Hyundai Tucson's driveline assembly.

Common Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Tucson
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Prevents grease leakage with durable neoprene boots
• Secures wheel hub connection with included cotter pin axle nut

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8296 on a Hyundai Tucson, ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Inspect the axle splines for proper engagement and verify the ABS tone ring is correctly positioned for sensor alignment. Use appropriate tools for hex nut installation and confirm the neoprene boots are free of damage before assembly.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet or exceed OEM standards. TrakMotive products undergo quality control to ensure durability and performance. While specific warranty details are not provided here, new CV axle shafts typically come with manufacturer warranties covering defects in materials and workmanship.
