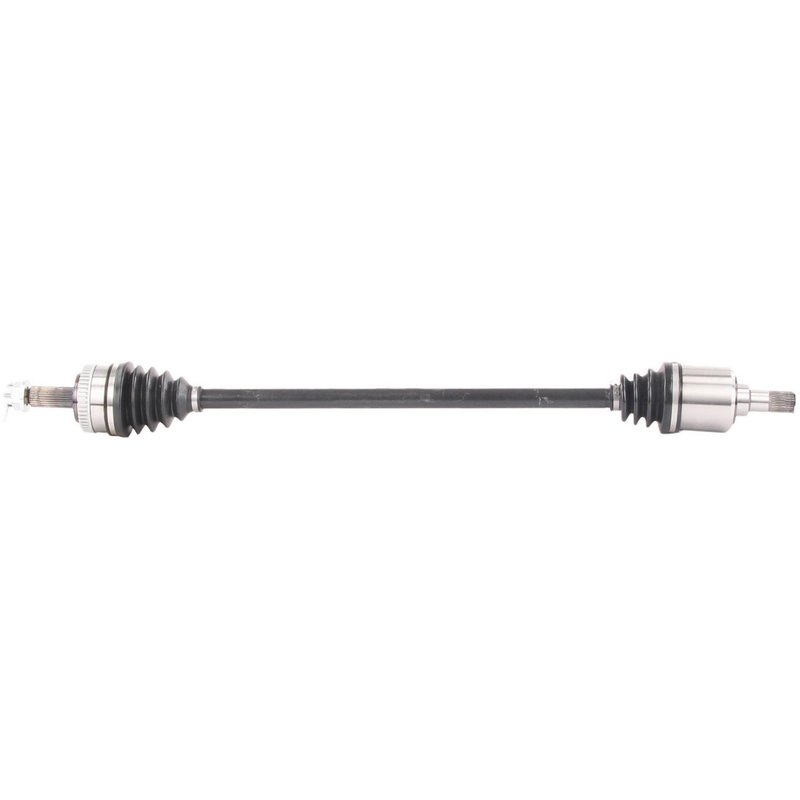

TrakMotive HY-8297 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Hyundai Tucson

The TrakMotive CV Axle Shaft HY-8297 is engineered to provide dependable driveline performance for Hyundai Tucson models. Designed with precision, this new axle shaft ensures smooth power transfer and durability under various driving conditions.

• Compatible with Hyundai Tucson vehicles
• Includes a toothed ABS tone ring with 48 teeth for accurate wheel speed sensing
• Equipped with a neoprene boot for enhanced protection against contaminants
• Features a hex head axle nut with cotter pin locking for secure installation
• Overall compressed length of 38.05 inches (966.5 mm) for exact fitment

TrakMotive CV Axle Shaft Product Line Overview

The TrakMotive CV Axle Shaft line focuses on delivering high-quality constant velocity components designed to meet or exceed OEM specifications. This product line emphasizes durability and precise fitment, making it suitable for driveline repairs and replacements on vehicles like the Hyundai Tucson. The HY-8297 model exemplifies this commitment with its robust construction and integrated ABS tone ring.

Detailed Product Features and Specifications

This CV axle shaft features a male inboard joint type and a conventional outboard joint, both with 27 splines to ensure secure shaft connections. The included ABS tone ring is toothed with 48 teeth, providing reliable input for the vehicle's anti-lock braking system. The neoprene boot material offers resistance to wear and environmental damage, extending the life of the joint. The axle nut is a hex type measuring 1 1/4 inches (32 mm) across flats, with a height of 22 mm (6/7 inch) and a length of 37 mm (1 1/2 inch). It uses an M22 x 1.5 thread size and locks with a cotter pin to maintain secure fastening during operation.

Common Applications and Problem Resolution

• Replacement of worn or damaged CV axle shafts on Hyundai Tucson models
• Restoring proper ABS sensor function with the included toothed ABS tone ring
• Eliminating axle vibration or clicking noises during turns
• Addressing boot damage or grease leaks to prevent joint failure
• Ensuring secure axle nut fastening with cotter pin locking mechanism

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8297, verify compatibility with your Hyundai Tucson model year and drivetrain configuration. Use the included hex head axle nut and cotter pin to secure the axle properly. Ensure the neoprene boot is seated correctly to prevent contamination. Proper torque specifications should be followed to maintain joint integrity and ABS sensor accuracy.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component built to meet industry standards for durability and performance. TrakMotive products undergo rigorous quality control to ensure reliability. Please refer to the manufacturer or distributor for specific warranty details related to this part.
