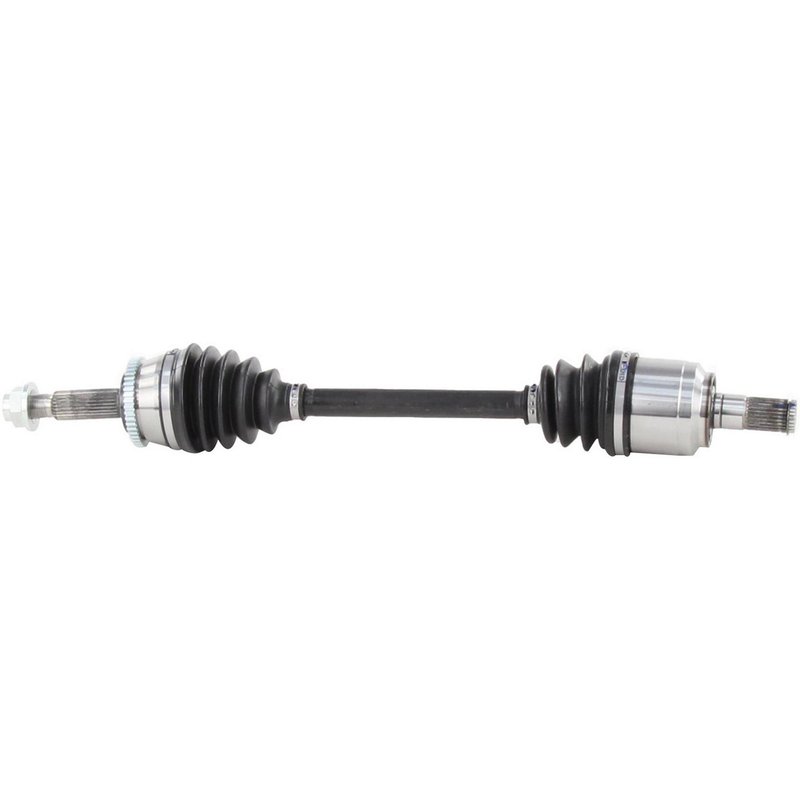

TrakMotive HY-8302 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8302 for Hyundai Accent

The TrakMotive CV Axle Shaft HY-8302 is engineered specifically for Hyundai Accent models, providing reliable driveline performance. This new CV axle shaft is designed to meet OEM specifications, ensuring proper fit and function for your vehicle's front-wheel-drive system.

• Compatible with Hyundai Accent vehicles
• Includes a neoprene boot for durability and protection
• Equipped with a 48-tooth ABS ring and included tone ring
• Features a hex head axle nut with stake locking mechanism
• Overall compressed length of 25 inches (635 mm) for precise fitment

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering quality CV components designed to restore driveline integrity. This line includes shafts with both male inboard joints and conventional outboard joints, like the HY-8302, which features a male inboard shaft connection and spline-style outboard connection. These components are manufactured new to ensure consistent performance and durability.

Technical Specifications and Features

The HY-8302 CV axle shaft includes a 48-tooth toothed ABS ring with an included tone ring, supporting accurate wheel speed sensor readings. The axle nut is a hex head type measuring 1 1/4 inches (32 mm) across flats, with a height of 1 inch (24 mm) and a length of 1 1/2 inches (37 mm). It uses an M22x1.5 thread size and a stake locking mechanism to secure the nut firmly in place. The neoprene boot material offers resistance to wear and environmental factors, extending the life of the joint. The shaft has 27 inboard splines and 25 outboard splines, ensuring a secure connection to the transmission and wheel hub.

Applications and Problem Solving

• Replacement for worn or damaged CV axle shafts on Hyundai Accent models
• Resolves issues related to torn or leaking CV boots
• Addresses ABS sensor errors caused by faulty or missing tone rings
• Eliminates axle vibration or clicking noises during turns
• Restores proper driveline function after axle nut or joint failure

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8302, ensure the axle nut is torqued to manufacturer specifications and properly staked to prevent loosening. Verify the ABS tone ring is correctly positioned to maintain accurate sensor readings. Inspect the neoprene boot for any damage during installation to avoid premature failure. This part is designed for direct replacement on Hyundai Accent vehicles, simplifying the installation process.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8302 is a new, OEM-quality component manufactured to meet strict industry standards. It includes a neoprene boot and a stake-type locking axle nut for secure and durable performance. While specific warranty details are not provided, TrakMotive products typically adhere to quality control processes to ensure reliability and fitment for Hyundai Accent applications.
