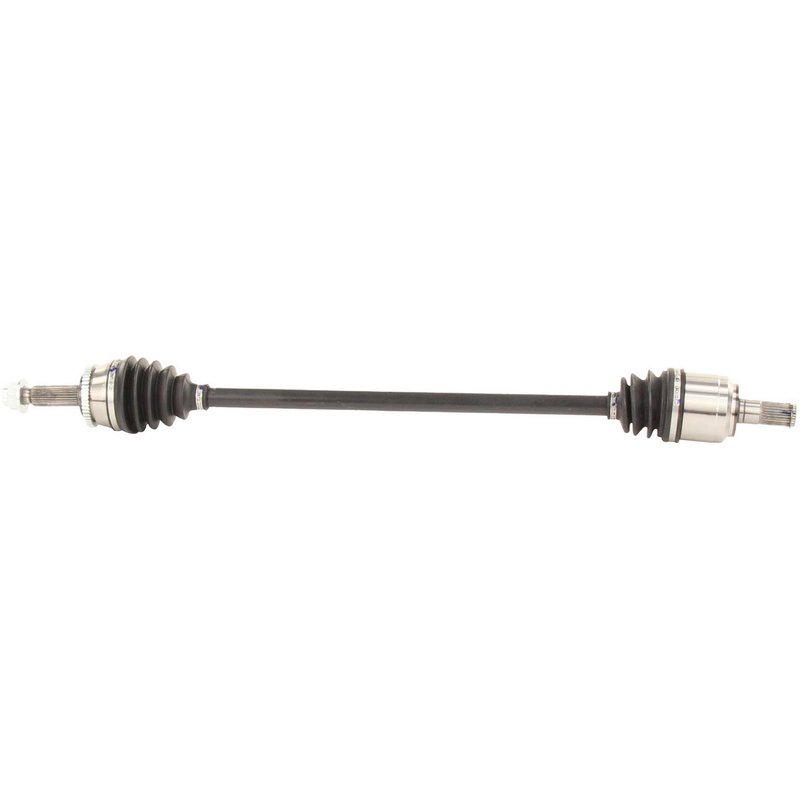

TrakMotive HY-8303 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8303 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 1 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 25 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 36.38 |
| Overall Compressed Length (mm) | 924 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 6 vehicles |
New CV axle shaft. Fresh replacement part for driveline service.
Neoprene boot material. Helps resist wear in demanding conditions.
ABS tone ring included. Ready for applications that use ABS sensing.
Cross-references Cardone New 66-3767, TrakMotive HY-8303 and 5011R100 for the same application. See all 7.
Front Right CV Axle Shaft for Hyundai Accent
TrakMotive HY-8303 is a new CV axle shaft for the front right position on 2012-2017 Hyundai Accent models. It is built with a neoprene boot, a 27-spline inboard male connection, and a 25-spline outboard spline connection for direct driveline service on the specified application.
Key Features
- Fits 2012-2017 Hyundai Accent, front right
- New CV axle shaft for driveline and axle repair
- ABS tone ring included with 48-tooth toothed ring
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and stake locking type
- Neoprene boot material for CV joint protection
- Overall compressed length: 36.38 in. (924 mm)
- TrakMotive part number HY-8303
Product Details
This TrakMotive CV axle shaft is engineered for the front right side of the Hyundai Accent across the 2012-2017 model years. The assembly uses a male inboard shaft connection, a conventional outboard joint, and an ABS tone ring with 48 teeth, making it a direct replacement for vehicles equipped for this application. TrakMotive HY-8303 also cross-references Cardone New 66-3767 for the same application.
Common Repair Symptoms
- Clicking or popping during turns from a worn outer CV joint
- Vibration or shudder during acceleration from axle wear
- Torn boot or grease loss at the CV joint
- ABS warning concerns related to a damaged tone ring area
- Excessive drivetrain play from a failing front axle shaft
Installation Notes
Verify front right fitment before installation on your Hyundai Accent and confirm axle nut thread size, spline count, and ABS configuration against the removed part. Inspect the hub, seals, and surrounding suspension components during service to help prevent repeat failure. Always torque the axle nut to the vehicle manufacturer’s specification and follow proper staking procedure where required.
Quality Assurance
TrakMotive backs this CV axle shaft with a limited lifetime warranty. The manufacturer states that its products are produced by an ISO 9001:1007 and TS 16949:2009 certified company, supporting consistent manufacturing control for replacement driveline components.
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2017 | Hyundai | Accent | Automatic | Front Right | CV Axle Shaft |
| 2016 | Hyundai | Accent | Automatic | Front Right | CV Axle Shaft |
| 2015 | Hyundai | Accent | Automatic | Front Right | CV Axle Shaft |
| 2014 | Hyundai | Accent | Automatic | Front Right | CV Axle Shaft |
| 2013 | Hyundai | Accent | Automatic | Front Right | CV Axle Shaft |
| 2012 | Hyundai | Accent | Automatic | Front Right | CV Axle Shaft |
