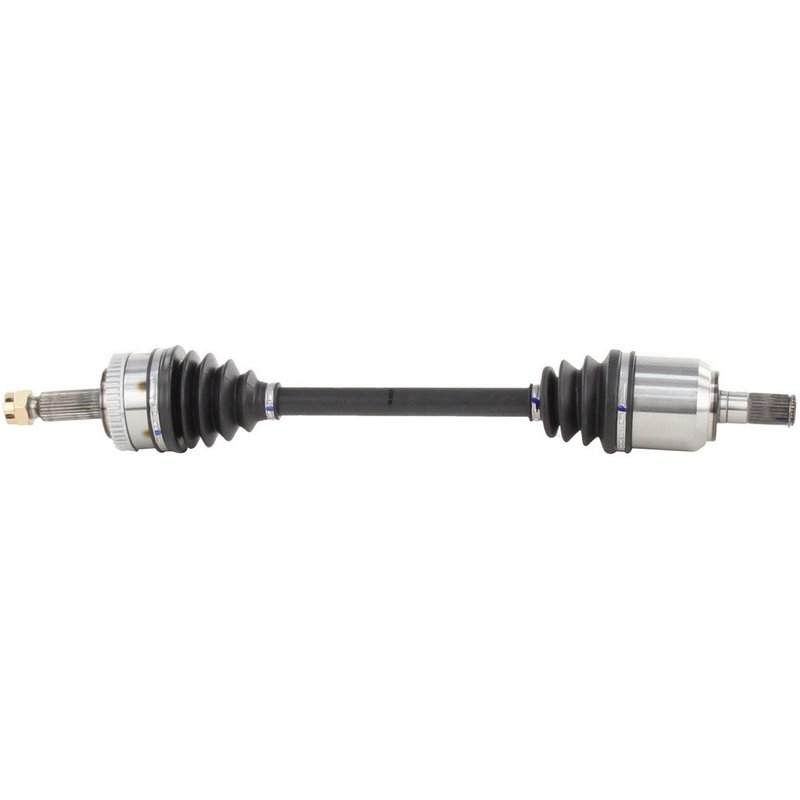

TrakMotive HY-8306 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8306 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 6/7 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1 1/4 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1 1/2 |
| Axle Nut Length (mm) | 37 |
| Axle Nut Locking Type | Cotter Pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Male |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 26.65 |
| Overall Compressed Length (mm) | 677 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 4 vehicles |
New axle shaft. Fresh replacement part with a neoprene boot for durable sealing.
ABS tone ring included. Built with a toothed ring and 48 teeth for ABS applications.
Hardware included. Comes with an axle nut and cotter-pin locking type.
Cross-references Cardone Reman 60-3724, TrakMotive HY-8306 and 495002S200 for the same application. See all 5.
TrakMotive CV Axle Shaft for Hyundai Tucson
The TrakMotive HY-8306 CV axle shaft is a new front left driveline replacement for 2010-2013 Hyundai Tucson models. Built for direct-fit service, it includes the axle nut and ABS tone ring details needed for the listed application.
Key Features
- Fits 2010-2013 Hyundai Tucson, front left
- New CV axle shaft for driveline and axle service
- 27 inboard splines and 27 outboard splines
- 48-tooth toothed ABS ring with tone ring included
- Neoprene boot material
- Male inboard joint and spline-style outboard shaft connection
- Overall compressed length: 26.65 in. (677 mm)
- Includes axle nut with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
Product Details
TrakMotive HY-8306 is a CV axle shaft for the front left position on the 2010, 2011, 2012, and 2013 Hyundai Tucson. It is configured as a new replacement axle with a conventional outboard joint, male inboard joint, and a 26.65-inch compressed length for the specified vehicle application. The ABS setup uses a 48-tooth toothed ring, and the tone ring is included for the listed fitment. TrakMotive CV axle shaft part number HY-8306 is backed by manufacturing standards from an ISO 9001:1007 and TS 16949:2009 certified company.
This part cross-references Cardone Reman 60-3724 for the same application.
Common Repair Uses
- Restores drivetrain operation after CV joint wear
- Addresses clicking or popping during turns
- Helps correct vibration from a worn axle shaft
- Replaces a damaged boot, joint, or spline connection
- Supports ABS-equipped front left axle service on Hyundai Tucson models
Installation Notes
Verify spline count, axle length, ABS ring style, and axle nut thread size before installation. Confirm front left placement and compare the removed axle to HY-8306 to ensure the correct fit for your Hyundai Tucson. Use proper torque procedures and replace any worn related components during service as needed.
Quality Assurance
TrakMotive HY-8306 is a new CV axle shaft from a company certified to ISO 9001:1007 and TS 16949:2009 standards. The manufacturer states a limited lifetime warranty.
| Year | Make | Model | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | Hyundai | Tucson | Automatic | — | — | Front Left | CV Axle Shaft |
| 2012 | Hyundai | Tucson | Automatic | — | — | Front Left | CV Axle Shaft |
| 2011 | Hyundai | Tucson | Automatic | — | — | Front Left | CV Axle Shaft |
| 2010 | Hyundai | Tucson | Automatic | 2.4L | L4 | Front Left | CV Axle Shaft |
