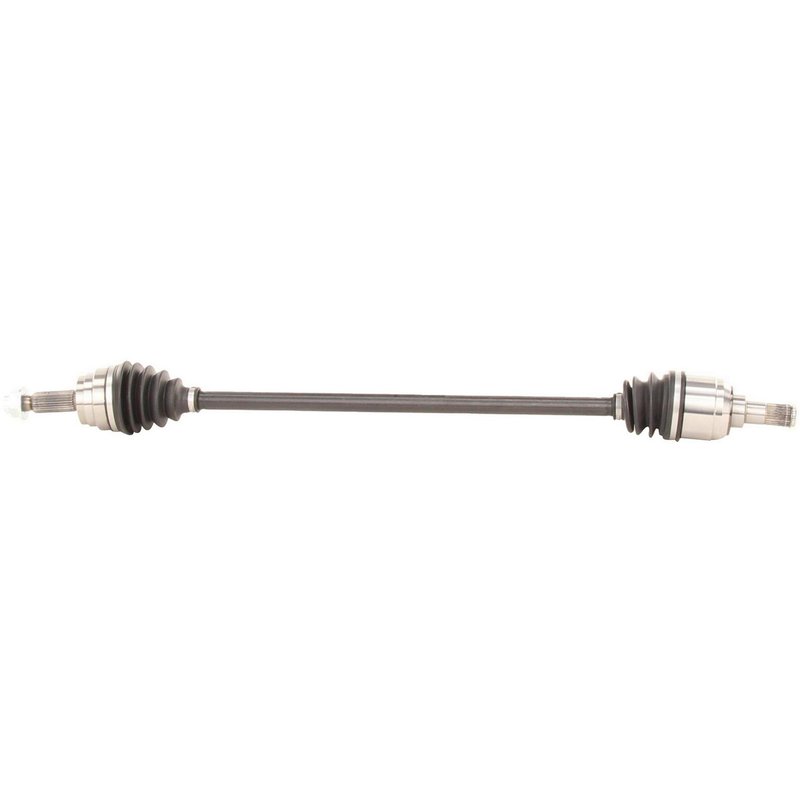

TrakMotive HY-8320 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8320 |
|---|---|
| Position | Front Right |
| Abs Tone Ring Included | No |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.94 |
| Axle Nut Height (mm) | 24 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 38.37 |
| Overall Compressed Length (mm) | 974.5 |
| Product line | CV Axle Shaft |
| Fits | Hyundai · 2 vehicles |
OE-style replacement. New CV axle shaft for a straightforward driveline repair.
Neoprene boot. Helps protect the joint from dirt and moisture.
Hardware included. Axle nut is included for easier installation.
Cross-references TrakMotive HY-8320 and 49501F3200 for the same application. See all 2.
Front Right CV Axle Shaft for Hyundai Elantra
TrakMotive HY-8320 is a new CV axle shaft for the front right position on select 2017-2018 Hyundai Elantra models. It is built with a 27-spline inboard connection and 27-spline outboard connection, along with a neoprene boot and included axle nut for a direct replacement service.
This TrakMotive CV Axle Shaft line focuses on replacement driveline components for passenger vehicles, with OE-style fitment details and application-specific construction. HY-8320 is listed for non-ABS applications unless otherwise noted, and it is backed by TrakMotive’s manufacturing quality standards.
- Fits 2017-2018 Hyundai Elantra, front right
- New CV axle shaft for driveline repair
- 27-spline inboard shaft connection
- 27-spline outboard shaft connection
- Neoprene boot material
- Includes axle nut with M22 x 1.5 thread size
- Hex axle nut head, 32 mm hex size
- Overall compressed length: 38.37 in. (974.5 mm)
- ABS tone ring not included
Use HY-8320 when replacing a worn or damaged front right axle on a Hyundai Elantra with the listed fitment. This part cross-references OE number 49501F3200 for the same application. The TrakMotive HY-8320 part number is also used to identify this exact replacement axle shaft.
Common Problems This Part Can Address
- Clicking or popping during turns from a worn CV joint
- Vibration from a damaged or unbalanced axle shaft
- Grease leakage from a torn axle boot
- Noise under acceleration caused by spline or joint wear
- Loss of driveline smoothness at the front right wheel position
Installation Notes and Tips
Verify front right fitment against the vehicle’s year, make, model, and drivetrain configuration before installation. Confirm axle nut thread size, spline count, and overall compressed length match the original part. Because this axle is listed for non-ABS applications unless otherwise noted, check the vehicle’s ABS setup before ordering. Always inspect related seals, hub components, and mounting points during axle replacement.
Quality Assurance
TrakMotive states that this CV axle shaft is produced by an ISO 9001:1007 and TS 16949:2009 certified company. The HY-8320 also carries a limited lifetime warranty.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Hyundai | Elantra | — | 1.4L | L4 | Front Right | CV Axle Shaft |
| 2017 | Hyundai | Elantra | Eco | 1.4L | L4 | Front Right | CV Axle Shaft |
| No rows match your filter. | |||||||
