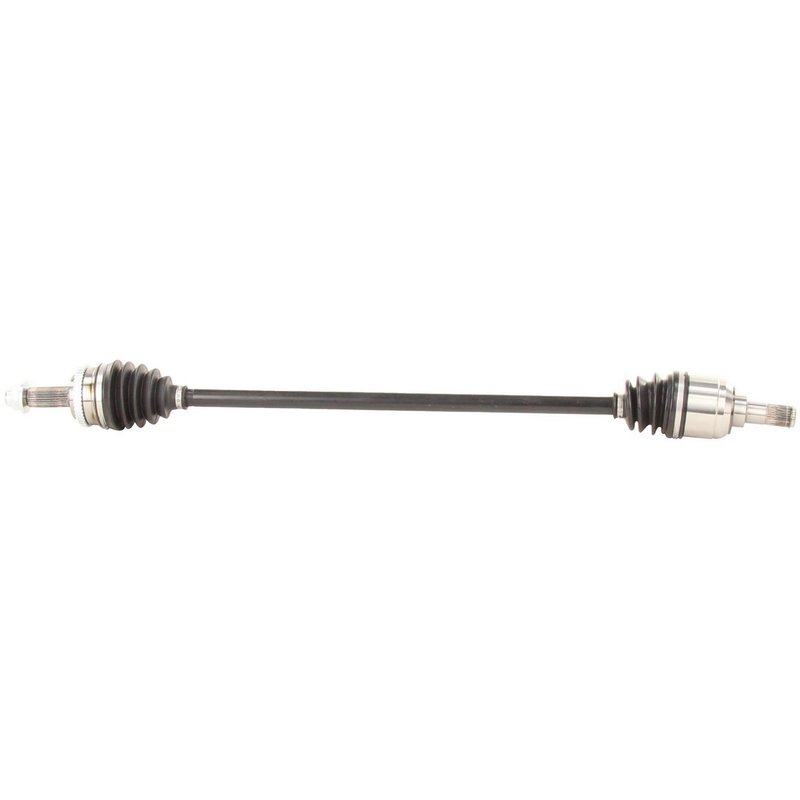

TrakMotive HY-8323 CV Axle Shaft - Front Right

Overview of TrakMotive CV Axle Shaft HY-8323 for Hyundai Veloster

The TrakMotive CV Axle Shaft HY-8323 is engineered specifically for Hyundai Veloster models, providing reliable driveline performance. Designed as a new replacement part, this axle shaft ensures precise fitment and durability for your vehicle's CV components.

• Compatible with Hyundai Veloster models
• New CV Axle Shaft with part number HY-8323
• Includes ABS tone ring with 46 toothed ring teeth
• Neoprene boot material for enhanced durability
• Comes with a hex head axle nut (M22*1.5 thread size)
• Overall compressed length of 39.94 inches (1014.5 mm)
• Inboard and outboard spline connection styles with 27 splines each
• Stake type axle nut locking mechanism included

Detailed Features of the TrakMotive CV Axle Shaft

This TrakMotive CV Axle Shaft from the CV Axle Shaft product line is designed to meet the specific requirements of Hyundai Veloster vehicles. The axle shaft features a neoprene boot that offers resistance to wear and environmental factors, helping to protect the joint. The inboard joint is a male type with a spline connection style, featuring 27 splines, while the outboard joint is conventional with a matching spline connection and 27 splines. The included ABS tone ring has 46 teeth and is of the toothed type, which is essential for accurate ABS sensor readings.

The axle nut included is a hex head type with a 32 mm (1.26 inch) hex size, 0.94 inch (24 mm) height, and 1.45 inch (36.95 mm) length. It uses a stake locking mechanism to ensure secure fastening. The overall compressed length of the axle shaft is 39.94 inches (1014.5 mm), designed to fit precisely within the Hyundai Veloster's driveline assembly.

Applications and Common Issues Addressed

• Replacement for worn or damaged CV axle shafts on Hyundai Veloster
• Resolves clicking or popping noises during turns caused by joint wear
• Fixes vibration or shuddering issues related to axle imbalance
• Addresses grease leakage from torn or damaged CV boots
• Restores proper ABS sensor function with included tone ring

Installation Notes and Tips

• Ensure compatibility with Hyundai Veloster before installation
• Use proper torque specifications for the M22*1.5 axle nut with hex head
• Inspect surrounding components such as wheel bearings and suspension parts during replacement
• Verify ABS sensor alignment with the toothed ABS tone ring
• Check for smooth joint operation and boot integrity after installation

Quality Assurance and Warranty Information

The TrakMotive CV Axle Shaft HY-8323 is a new, high-quality replacement part designed to meet OEM standards for fit and function. Manufactured with durable materials including a neoprene boot and precision-machined splines, this axle shaft supports reliable driveline performance. Warranty coverage details should be confirmed with the distributor or manufacturer, as they may vary.
