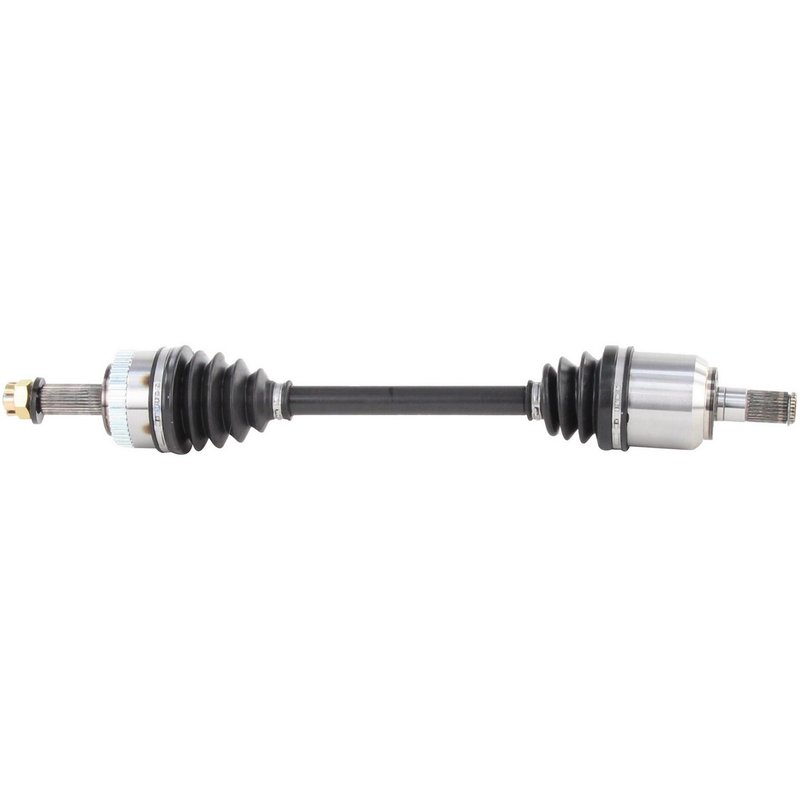

TrakMotive HY-8327 CV Axle Shaft - Front Left

TrakMotive AAR CV Axle Shaft HY-8327

The TrakMotive AAR CV Axle Shaft HY-8327 is a new front left axle assembly for select Hyundai Tucson and Kia Sportage applications. It is built with a neoprene boot, 27 inboard splines, 27 outboard splines, and a 48-tooth toothed ABS ring with tone ring included.

Fits 2014-2015 Hyundai Tucson, front left. Fits 2014-2016 Kia Sportage, front left. This updated-design axle is a direct driveline replacement for vehicles that need a front left CV axle shaft with the correct spline count, ABS tone ring setup, and axle nut specifications.

Key Features

• Brand: TrakMotive AAR CV Axle Shaft
• Part number: HY-8327
• New CV axle shaft for front left installation
• 27-spline inboard and 27-spline outboard shaft connections
• Conventional outboard joint with male inboard joint type
• Neoprene boot material for driveline protection
• 48-tooth toothed ABS ring with tone ring included
• Axle nut included with M22 x 1.5 thread, 32 mm hex size, and cotter pin locking type
• Overall compressed length: 26.54 in. (674 mm)

Detailed Description

The HY-8327 is an AAR CV axle shaft engineered for the front left position on 2014-2015 Hyundai Tucson and 2014-2016 Kia Sportage models. It includes the axle nut and uses a 32 mm hex, M22 x 1.5 thread, and cotter pin locking style for proper service replacement. The axle’s 48-tooth ABS ring and included tone ring support vehicles equipped with ABS, while the manufacturer notes that ABS axles fit non-ABS applications unless otherwise noted.

TrakMotive’s AAR CV axle shaft line focuses on replacement driveline components built to match application-specific dimensions and connection styles. HY-8327 is a direct-fit option for the listed Hyundai Tucson and Kia Sportage front left applications when the vehicle requires the specified spline counts, compressed length, and ABS ring configuration.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Issues

• Clicking or popping during turns from a worn CV joint
• Vibration under acceleration caused by axle wear or imbalance
• Torn or leaking axle boot leading to grease loss and contamination
• ABS warning light concerns related to a damaged tone ring or sensor input
• Driveline noise from excessive play in the front left axle assembly

Installation Notes and Tips

Verify front left fitment by matching the vehicle year, make, model, spline counts, compressed length, and axle nut specifications before installation. Inspect the hub, seals, and surrounding suspension components for wear, and confirm ABS ring alignment during assembly. Use the correct axle nut torque procedure for the vehicle and replace any damaged retaining hardware during service.

Quality Assurance

TrakMotive states that this AAR CV axle shaft is backed by a limited lifetime warranty. The manufacturer also identifies the company as ISO 9001:1007 and TS 16949:2009 certified, supporting controlled production and quality management for driveline replacement parts.
