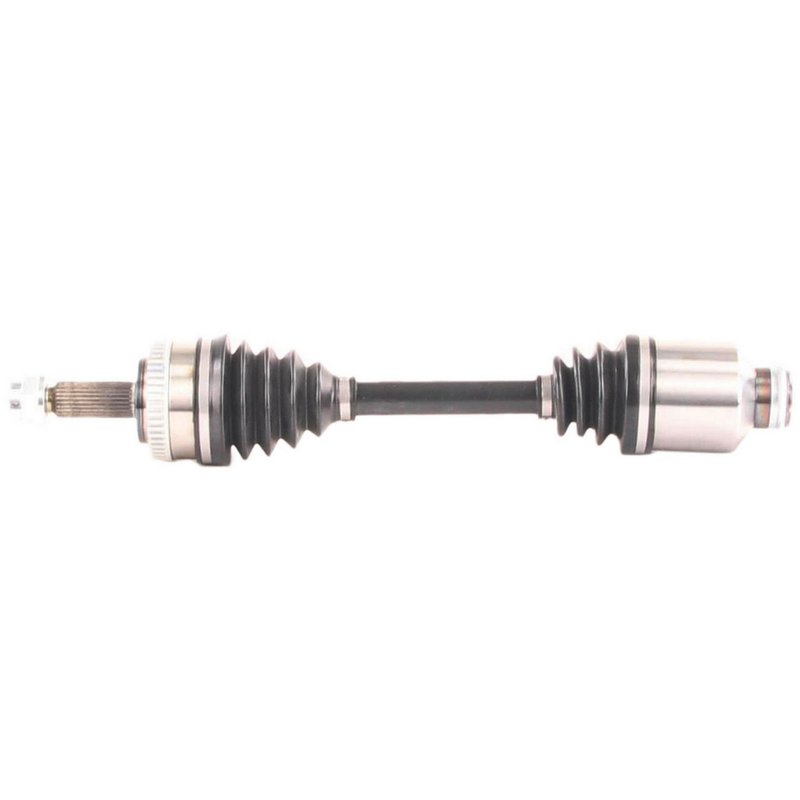

TrakMotive HY-8328 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8328 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.87 |
| Axle Nut Height (mm) | 22 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Cotter pin |
| Axle Nut Thread Size | M22*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Female |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 26-2 |
| Number Of Outboard Splines | 27 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 22.05 |
| Overall Compressed Length (mm) | 560 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
New CV axle shaft. Fresh replacement part for restoring driveline performance.
Neoprene boot material. Helps resist wear while keeping the joint protected.
ABS tone ring included. Built with a toothed ring for ABS-equipped applications.
Cross-references TrakMotive HY-8328 and NCV37123 for the same application. See all 2.
Front Right CV Axle Shaft for Hyundai Tucson
The TrakMotive HY-8328 AAR CV Axle Shaft is a new front right axle assembly for 2014-2015 Hyundai Tucson applications. It is built with a neoprene boot, a toothed ABS tone ring, and included axle nut details to support a direct replacement on the specified vehicle fitment.
Key Features
- Fits 2014-2015 Hyundai Tucson, front right
- TrakMotive AAR CV Axle Shaft, part number HY-8328
- New axle assembly with conventional outboard joint
- Female inboard joint with spline shaft connection
- Neoprene boot material for drivetrain protection
- ABS tone ring included with 48-tooth toothed ring
- Axle nut included, M22 x 1.5 thread, 32 mm hex size
- Overall compressed length: 22.05 in. (560 mm)
Product Details
TrakMotive HY-8328 is part of the AAR CV Axle Shaft line, a product line focused on replacement axle shafts for specific vehicle applications. This front right CV axle shaft is listed for the 2014-2015 Hyundai Tucson and includes the ABS tone ring configuration needed for the stated application. The axle uses a 26-2 inboard spline count, 27 outboard splines, and a conventional outboard joint design for a direct-fit driveline replacement.
This part cross-references Monroe Shocks & Struts (e.g., NCV37123) for the same application.
Common Replacement Uses
- Front right axle noise or vibration from worn CV joints
- Clicking during turns caused by damaged outer joint wear
- Boot failure that has allowed grease loss and contamination
- ABS-related driveline service on the specified Tucson fitment
- Restoring axle shaft function after spline or joint wear
Installation Notes and Tips
Verify the vehicle is a 2014-2015 Hyundai Tucson, front right application before ordering HY-8328. Confirm axle nut thread size, hex size, and ABS tone ring configuration against the removed part. Inspect hub, seals, and mating splines during installation, and follow factory torque specifications for the axle nut and related fasteners.
Quality Assurance
TrakMotive lists this axle shaft as a new replacement part and notes ISO 9001:1007 and TS 16949:2009 certified company standards. The HY-8328 also carries a limited lifetime warranty.
| Year | Make | Model | Drive Type | Transmission | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2015 | Hyundai | Tucson | FWD | Automatic | 2.0L | L4 | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Hyundai | Tucson | — | Manual | — | — | — | Front Right | Updated Design; AAR CV Axle Shaft |
| 2014 | Hyundai | Tucson | FWD | Automatic | 2.0L | L4 | — | Front Right | Updated Design; AAR CV Axle Shaft |
