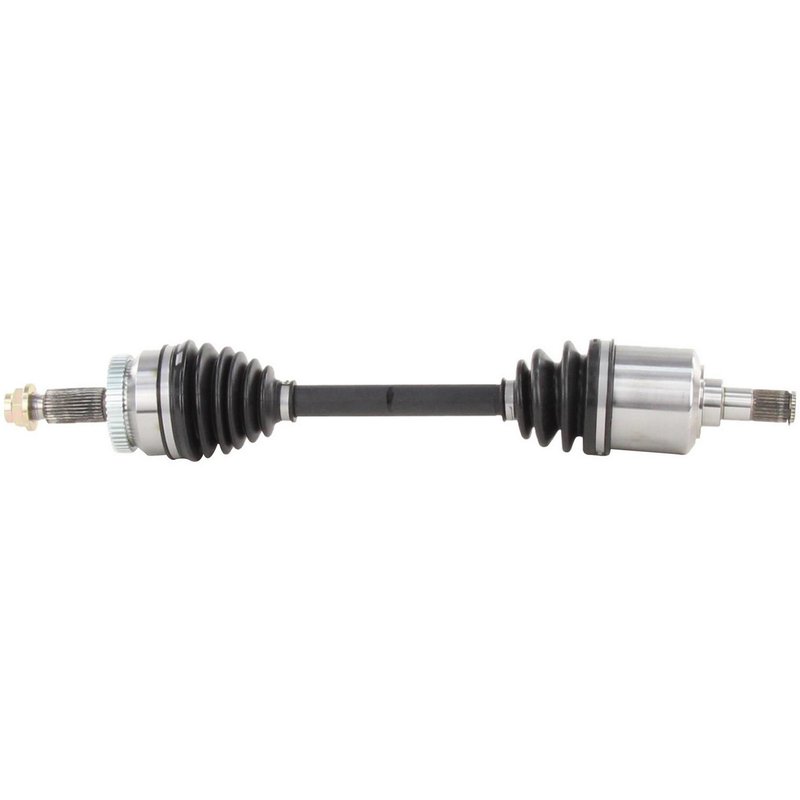

TrakMotive HY-8330 CV Axle Shaft - Front Left
| Brand | TrakMotive HY-8330 |
|---|---|
| Position | Front Left |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 25.75 |
| Overall Compressed Length (mm) | 654 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 3 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps protect the joint with durable, flexible material.
ABS tone ring included. Ready for applications that use a toothed ABS ring.
Cross-references TrakMotive HY-8330, HY20065ER and NCV37114 for the same application. See all 3.
TrakMotive HY-8330 CV Axle Shaft
The TrakMotive HY-8330 AAR CV axle shaft is a new front left driveline replacement for 2016-2018 Hyundai Tucson applications. Built with a neoprene boot, spline-style shaft connections, and an included axle nut, it is specified for direct service on the listed vehicle fitment.
Key Features
- Fits 2016-2018 Hyundai Tucson, front left
- TrakMotive AAR CV Axle Shaft, part number HY-8330
- New replacement axle with 25.75 in. overall compressed length
- 27 inboard splines and 30 outboard splines
- Male inboard joint with conventional outboard joint
- Neoprene boot material for driveline service
- ABS tone ring included; 48-tooth toothed ABS ring
- Axle nut included: M24 x 1.5 thread, 32 mm hex size, stake lock type
Product Details
The HY-8330 is part of TrakMotive’s AAR CV Axle Shaft line, a product line focused on application-specific axle replacement for import driveline service. This axle is built as a new unit and includes the ABS tone ring configuration noted in the specifications, along with the correct spline counts and compressed length for the listed Hyundai Tucson front left application. Part number HY-8330 is also referenced for cross-application lookup under OE-style replacement sourcing.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Problems This Part Can Address
- Clicking or popping noises during turns from a worn CV joint
- Vibration or shudder from a damaged axle shaft
- Grease leakage from a torn or deteriorated CV boot
- ABS warning concerns related to a failed tone ring setup
- Driveline looseness caused by spline or joint wear
Installation Notes and Tips
Verify front left placement, spline count, axle nut thread size, and ABS ring configuration before installation. Confirm the vehicle is a 2016-2018 Hyundai Tucson and compare the removed axle to HY-8330 for length, joint style, and sensor ring details. Use proper torque procedures for the included axle nut and inspect related hub, seal, and suspension components during service.
Quality Assurance
TrakMotive states that this axle is backed by a limited lifetime warranty. The manufacturer also notes ISO 9001:1007 and TS 16949:2009 certification, supporting controlled production and quality management for this CV axle shaft.
| Year | Make | Model | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2018 | Hyundai | Tucson | AWD | 1.6L | L4 | GAS | Front Left | Updated Design; AAR CV Axle Shaft |
| 2017 | Hyundai | Tucson | AWD | 1.6L | L4 | GAS | Front Left | Updated Design; AAR CV Axle Shaft |
| 2016 | Hyundai | Tucson | AWD | 1.6L | L4 | GAS | Front Left | Updated Design; AAR CV Axle Shaft |
