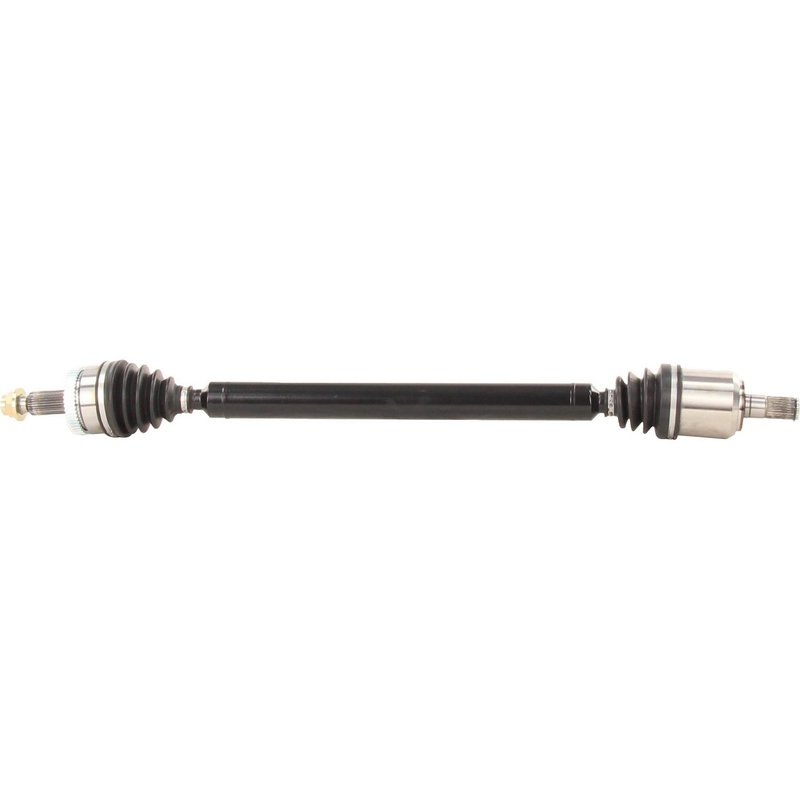

TrakMotive HY-8331 CV Axle Shaft - Front Right
| Brand | TrakMotive HY-8331 |
|---|---|
| Position | Front Right |
| Abs Ring Tooth Count | 48 |
| Abs Ring Type | Toothed |
| Abs Tone Ring Included | Yes |
| Axle Nut Head Type | Hex |
| Axle Nut Height (in) | 0.91 |
| Axle Nut Height (mm) | 23 |
| Axle Nut Hex Size (in) | 1.26 |
| Axle Nut Hex Size (mm) | 32 |
| Axle Nut Included | Yes |
| Axle Nut Length (in) | 1.45 |
| Axle Nut Length (mm) | 36.95 |
| Axle Nut Locking Type | Stake |
| Axle Nut Thread Size | M24*1.5 |
| Boot Material | Neoprene |
| Inboard Joint Type | Male |
| Inboard Shaft Connection Style | Spline |
| New Or Remanufactured | New |
| Number Of Inboard Splines | 27 |
| Number Of Outboard Splines | 30 |
| Outboard Joint Type | Conventional |
| Outboard Shaft Connection Style | Spline |
| Overall Compressed Length (in) | 37.7 |
| Overall Compressed Length (mm) | 957.5 |
| Product line | AAR CV Axle Shaft |
| Fits | Hyundai · 8 vehicles |
New CV axle shaft. Built as a direct replacement for dependable driveline service.
Neoprene boot. Helps resist wear while keeping the joint protected.
ABS tone ring included. Ready for applications that use a toothed ABS setup.
Cross-references TrakMotive HY-8331, HY20072ER and NCV37112K for the same application. See all 3.
TrakMotive HY-8331 Front Right CV Axle Shaft
The TrakMotive HY-8331 is a new front right CV axle shaft for select Hyundai Tucson models. It is built for 2015-2021 Hyundai Tucson applications, including updated-design and OE AAR design setups, with fitment matched to the listed front right position.
Key Features
- Brand: TrakMotive AAR CV Axle Shaft line
- Part number: HY-8331
- Fits 2015-2018 Hyundai Tucson, front right
- Fits 2019-2021 Hyundai Tucson, front right
- New axle shaft with 37.7 in. overall compressed length
- 27 inboard splines and 30 outboard splines
- Neoprene boot material for driveline protection
- Male inboard joint with spline shaft connection
- Conventional outboard joint with spline shaft connection
- Includes axle nut with 32 mm hex size and M24 x 1.5 thread
- ABS tone ring included; 48-tooth toothed ABS ring
Product Details
TrakMotive HY-8331 is part of the AAR CV Axle Shaft line, built for Hyundai Tucson front right driveline service where OE AAR design or updated design fitment is required. This axle shaft uses a neoprene boot, a male inboard joint, and spline connections at both ends to match the listed vehicle applications. The included ABS tone ring and 48-tooth toothed ABS ring support vehicles equipped for ABS signal transfer, while the supplied axle nut helps simplify replacement planning. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Repair Applications
- Front right axle noise or vibration on a Hyundai Tucson
- Clicking during turns from a worn CV joint
- Boot damage that has led to grease loss
- ABS-related driveline service on Tucson front axle applications
- Replacement for a worn or damaged OE-style CV axle shaft
Installation Notes
Verify spline count, compressed length, axle nut thread size, and ABS ring configuration before installation. Confirm the vehicle is a front right Hyundai Tucson application and compare the OE AAR design or updated design notes against the original axle. Inspect seals, hub condition, and surrounding suspension components during service to help prevent repeat failure.
Quality Assurance
TrakMotive states this axle shaft is a new part from an ISO 9001:1007 and TS 16949:2009 certified company. It is backed by a limited lifetime warranty.
| Year | Make | Model | Submodel | Drive Type | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|---|
| 2021 | Hyundai | Tucson | — | FWD | 2.0L | L4 | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2020 | Hyundai | Tucson | — | FWD | 2.0L | L4 | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2019 | Hyundai | Tucson | — | FWD | 2.0L | L4 | — | Front Right | OE AAR design; AAR CV Axle Shaft |
| 2018 | Hyundai | Tucson | — | FWD | 2.4L | L4 | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
| 2018 | Hyundai | Tucson | — | FWD | 2.0L | L4 | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
| 2017 | Hyundai | Tucson | — | FWD | 2.0L | L4 | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
| 2016 | Hyundai | Tucson | — | FWD | 2.0L | L4 | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
| 2015 | Hyundai | Tucson | SE | FWD | 2.4L | L4 | GAS | Front Right | Updated Design; AAR CV Axle Shaft |
