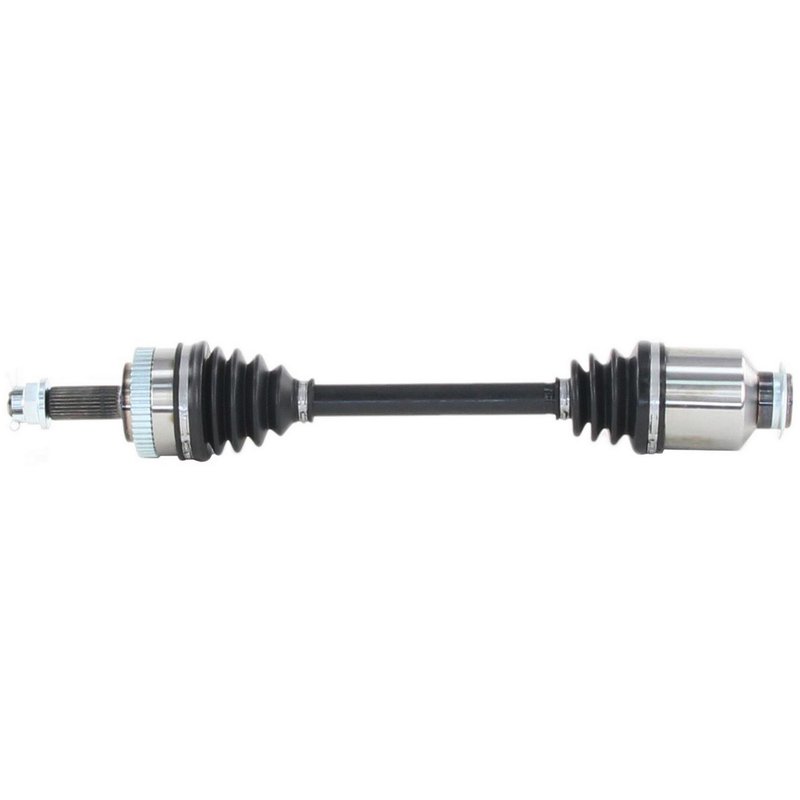

TrakMotive HY-8335 CV Axle Shaft - Front Right

Reliable CV Axle Shaft for Hyundai and Kia Vehicles

The TrakMotive AAR CV Axle Shaft HY-8335 is engineered to provide dependable driveline performance for select Hyundai and Kia models. Designed specifically for the Sportage and Tucson, this CV axle shaft ensures precise fitment and consistent operation.

• Compatible with Hyundai Sportage and Kia Tucson models
• Includes a neoprene boot for enhanced durability
• Equipped with a 48-tooth ABS ring and included tone ring
• Hex head axle nut with cotter pin locking mechanism
• Overall compressed length of 23.07 inches (586 mm)

About the TrakMotive AAR CV Axle Shaft Product Line

The AAR CV Axle Shaft line by TrakMotive focuses on delivering new, high-quality constant velocity axle shafts designed for direct replacement applications. This product line emphasizes precise engineering, including spline connection styles and ABS ring integration, to maintain vehicle safety and driveline integrity. The HY-8335 model exemplifies these standards with its detailed specifications tailored for Hyundai and Kia vehicles.

Detailed Product Features and Specifications

This CV axle shaft features a female inboard joint type with a spline connection style, incorporating 26-2 inboard splines and 27 outboard splines with a conventional joint type. The neoprene boot material offers resistance to wear and environmental factors, extending the service life of the axle. The included ABS tone ring with 48 teeth supports accurate wheel speed sensor readings, essential for ABS functionality. The axle nut is a hex head type measuring 1.26 inches (32 mm) across flats, with a height of 0.87 inches (22 mm) and a length of 1.45 inches (36.95 mm). It uses an M22x1.5 thread size and secures with a cotter pin locking mechanism to ensure safe installation.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Sportage and Kia Tucson
• Restores proper ABS sensor function with included tone ring
• Eliminates axle vibration and noise caused by joint wear
• Addresses boot damage to prevent grease leakage and contamination
• Ensures secure wheel attachment with included axle nut and locking cotter pin

Installation Notes and Tips

When installing the TrakMotive AAR CV Axle Shaft HY-8335, verify compatibility with your specific Hyundai Sportage or Kia Tucson model year. Ensure the axle nut is torqued to manufacturer specifications and secured with the cotter pin to prevent loosening. Inspect the neoprene boot for proper seating to avoid premature wear. Proper spline alignment is critical for smooth driveline operation.

Quality Assurance and Warranty

This CV axle shaft is a new, not remanufactured, component designed to meet OEM standards. TrakMotive products undergo rigorous quality control to ensure durability and performance. Warranty details should be confirmed with the product documentation or supplier.
