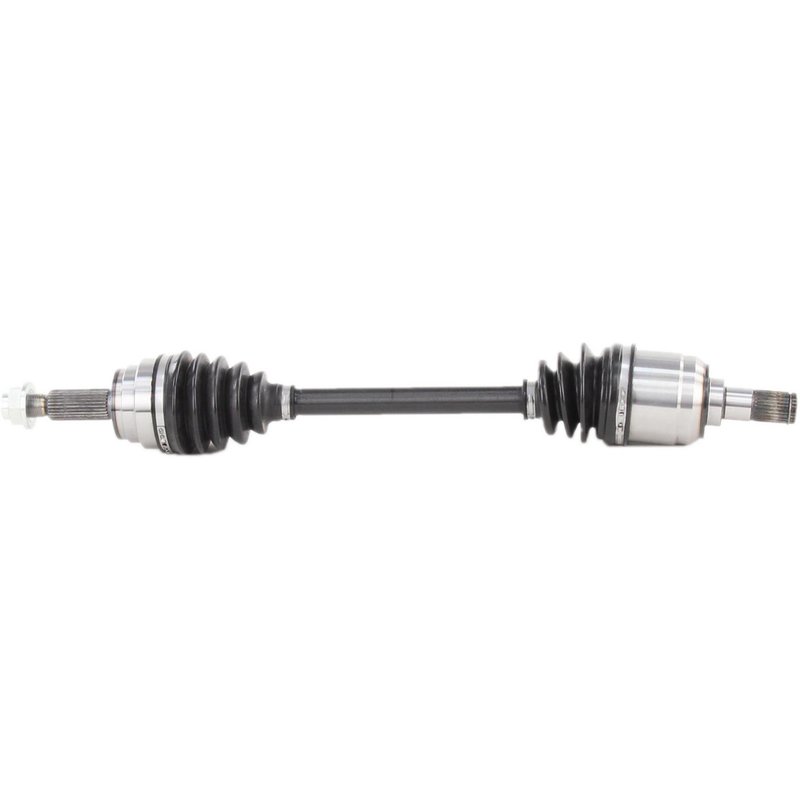

TrakMotive HY-8348 CV Axle Shaft - Front Left

Overview of TrakMotive CV Axle Shaft HY-8348 for Hyundai Elantra

The TrakMotive CV Axle Shaft HY-8348 is designed specifically for Hyundai Elantra models, providing reliable driveline performance. This new CV axle shaft ensures proper power transfer from the transmission to the wheels, maintaining smooth vehicle operation.

• Compatible with Hyundai Elantra vehicles
• Includes axle nut with stake locking type
• Neoprene boot material for durability
• Inboard and outboard spline connection style
• Overall compressed length of 26.44 inches (671.5 mm)

TrakMotive CV Axle Shaft Product Line Details

The TrakMotive CV Axle Shaft product line focuses on delivering dependable CV components engineered for precise fitment and durability. This line emphasizes quality materials such as neoprene boots and spline shaft connections to ensure long-lasting driveline integrity. The HY-8348 model exemplifies these standards with its new construction and included axle nut designed for secure installation.

Technical Specifications and Features

The HY-8348 CV axle shaft features a neoprene boot that resists wear and environmental damage. It includes a hex head axle nut measuring 0.94 inches (24 mm) in height and 1.26 inches (32 mm) across the flats, with a length of 1.45 inches (36.95 mm). The axle nut uses a stake locking type to prevent loosening during operation. Both the inboard and outboard joints utilize spline connection styles with 27 splines each, ensuring a secure fit to the transmission and wheel hub. The inboard joint is a male type, while the outboard joint is conventional, supporting smooth rotational movement. The overall compressed length of the shaft is 26.44 inches (671.5 mm), matching Hyundai Elantra specifications.

Common Applications and Problem Resolution

• Replacement for worn or damaged CV axle shafts on Hyundai Elantra
• Eliminates clicking or popping noises during turns caused by joint wear
• Resolves vibration issues related to axle imbalance or joint failure
• Prevents grease leakage by restoring boot integrity
• Restores proper driveline function after axle shaft bending or breakage

Installation Notes and Tips

When installing the TrakMotive CV Axle Shaft HY-8348, ensure the axle nut is torqued to manufacturer specifications and properly staked to secure the locking mechanism. Verify spline alignment on both inboard and outboard connections to avoid premature wear. Inspect the neoprene boot for any damage during installation to maintain joint protection. This part is designed for direct replacement on compatible Hyundai Elantra models, facilitating straightforward installation.

Quality Assurance and Warranty

The TrakMotive CV Axle Shaft HY-8348 is a new, not remanufactured, component built to meet OEM standards. It includes a stake-type locking axle nut to enhance safety and reliability. While specific warranty details are not provided, TrakMotive products typically adhere to industry quality controls to ensure consistent performance and durability.
